102 5000 Series Oscilloscopes Service Guide
5 Replacing Assemblies
To remove the power shaft
1 Perform the previous procedures:
• “To remove the cabinet” on page 80
• “To remove the main shield” on page 89
2 Use a flat-blade screwdriver to gently spread the latch while
pushing the power shaft forward. It may be helpful to use a
“needle-nose” pliers to grip the shaft or the holding tab
during removal.

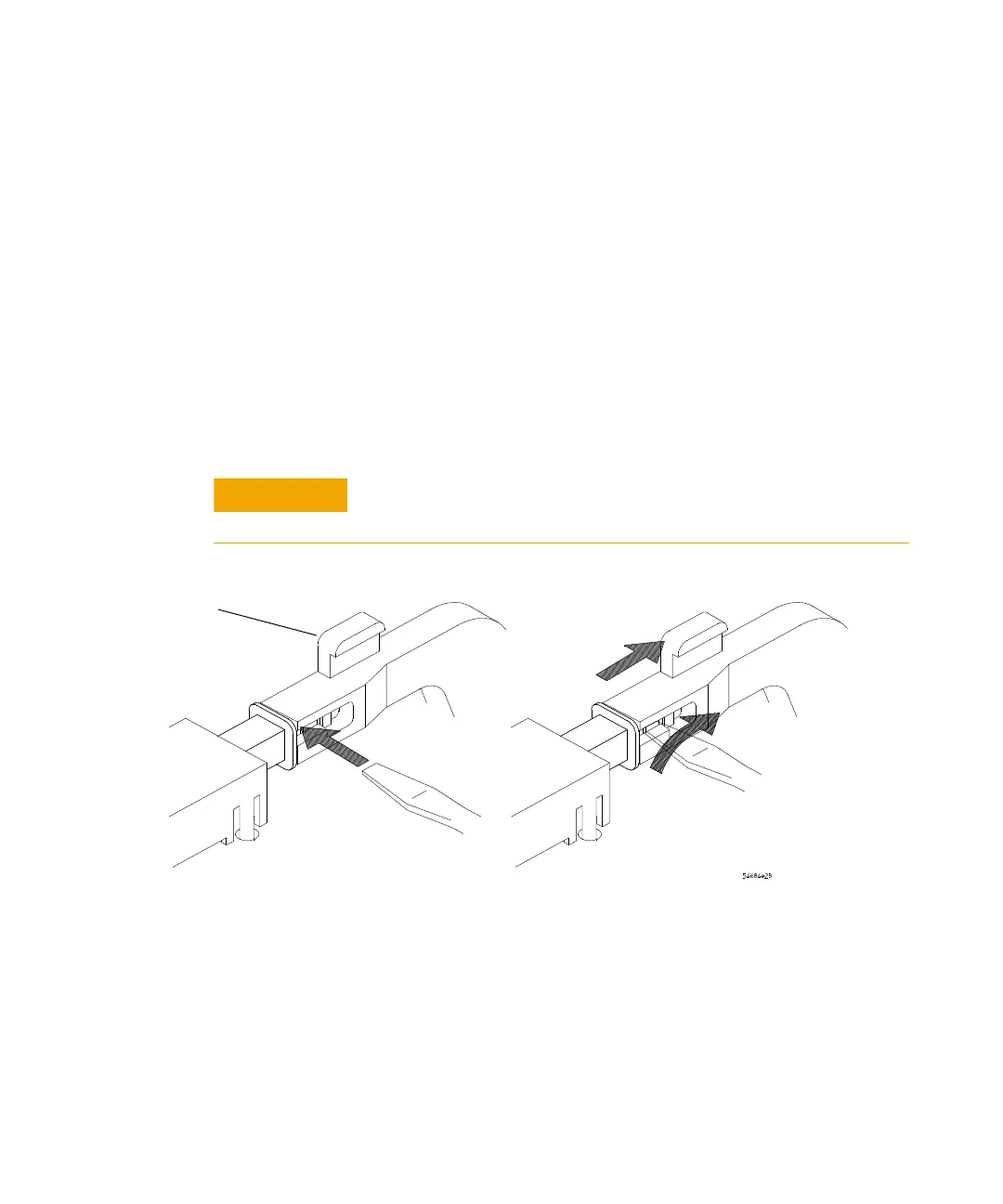

Figure 34 Removing the power shaft latch
3 Lift and remove it from the deck.
4 When reinserting the power shaft, push the shaft into the
power switch until the shaft snaps onto the switch.
CAUTION
Twisting the latch too much could cause it to break!
Holding tab
