40 5000 Series Oscilloscopes Service Guide
2 Testing Performance
Test Internal Trigger Sensitivity (all models)
1 Connect the equipment (see Figure 4).
a Connect the signal generator output to the oscilloscope
channel 1 input.

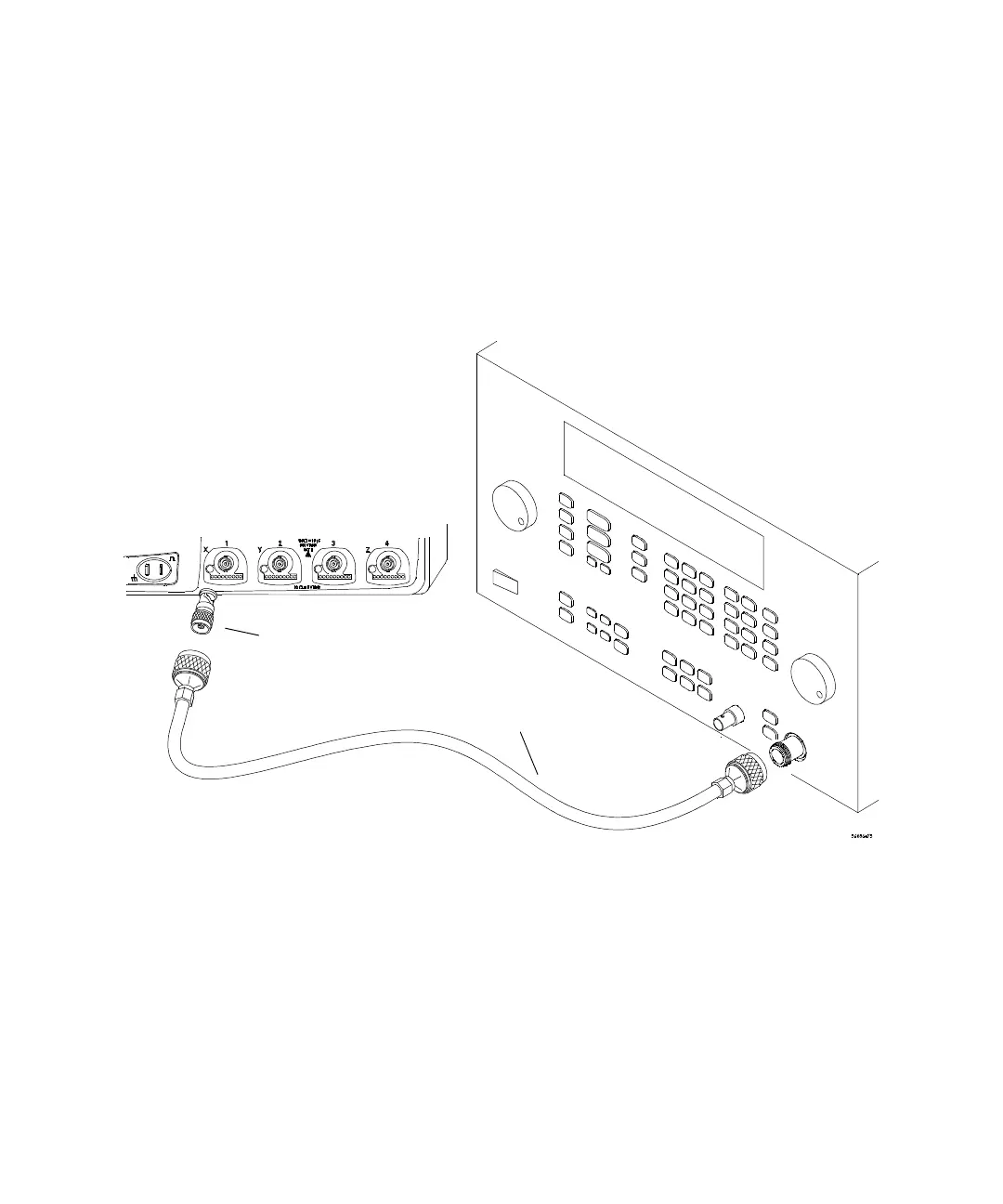

Figure 4 Connect equipment for internal trigger sensitivity test
Signal
Generator
N to BNC adapter
N Cable
* 100 MHz models only.
Oscilloscope
