Agilent Technologies 5000 Series User Manual

Replacing Assemblies 5
5000 Series Oscilloscopes Service Guide 97
8 If the e-field shield requires replacement, use a screwdriver
to pry the shield off the studs.
a Align the shield over the studs and push it all the way
down on the studs.

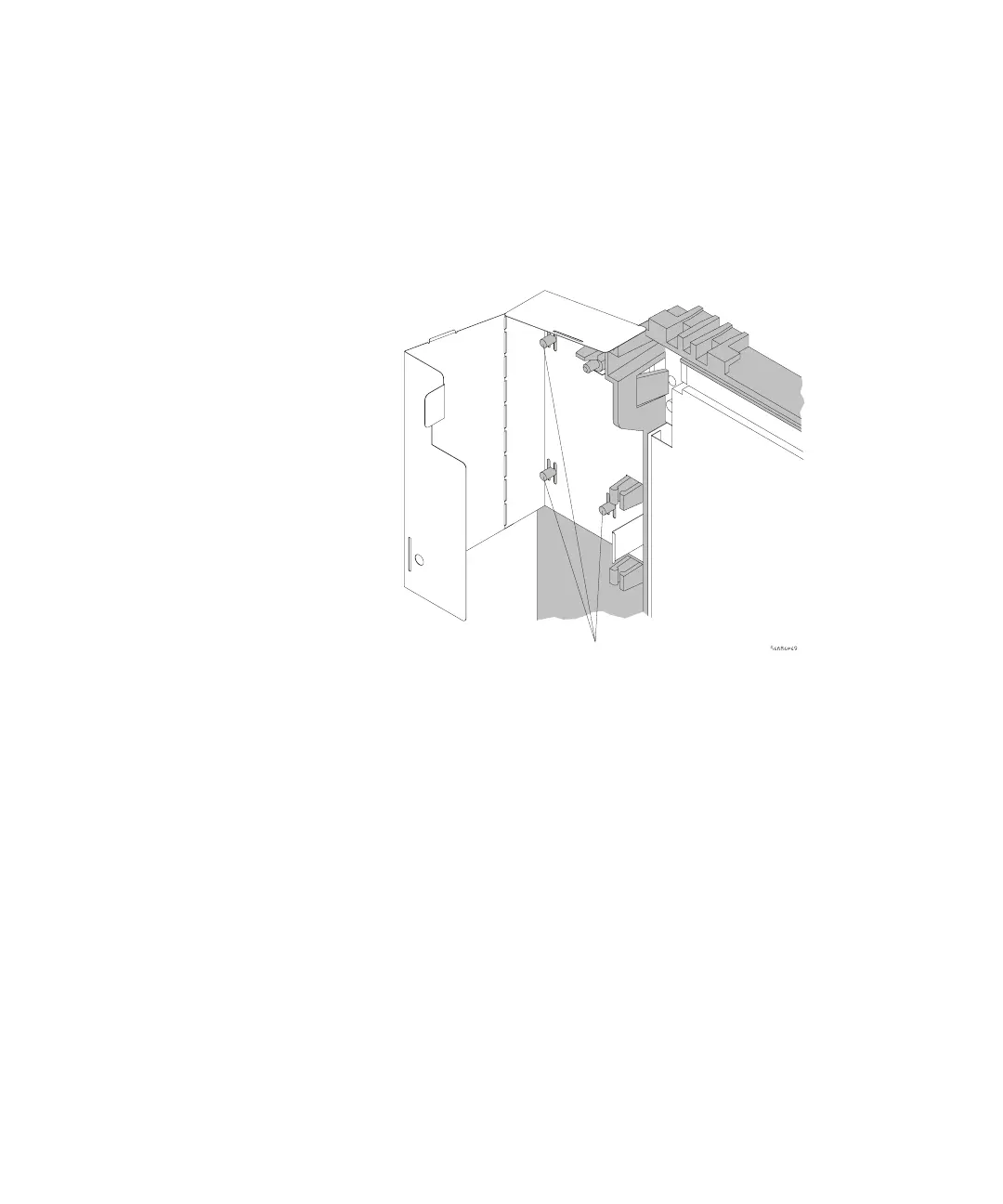

Figure 29 Removing the backlight inverter shield
9 To reinstall the backlight inverter board:
a Reconnect the LCD cables looping them around each other
and through the cable guides as shown in Figure 28.
b Reconnect the supply cable.
c Align the holes in the inverter board with the posts on the
display mount and push down until the latches snap over
the board (refer to Figure 28).
d Route the cables through the cable guides as shown.
Studs
