Testing Performance 2
5000 Series Oscilloscopes Service Guide 43
1 Connect the equipment (see Figure 5).
a Use the N cable to connect the signal generator to the
power splitter input.
b Connect one output of the power splitter to the Ext Trigger
input.
c Connect the power sensor to the other output of the power
splitter.

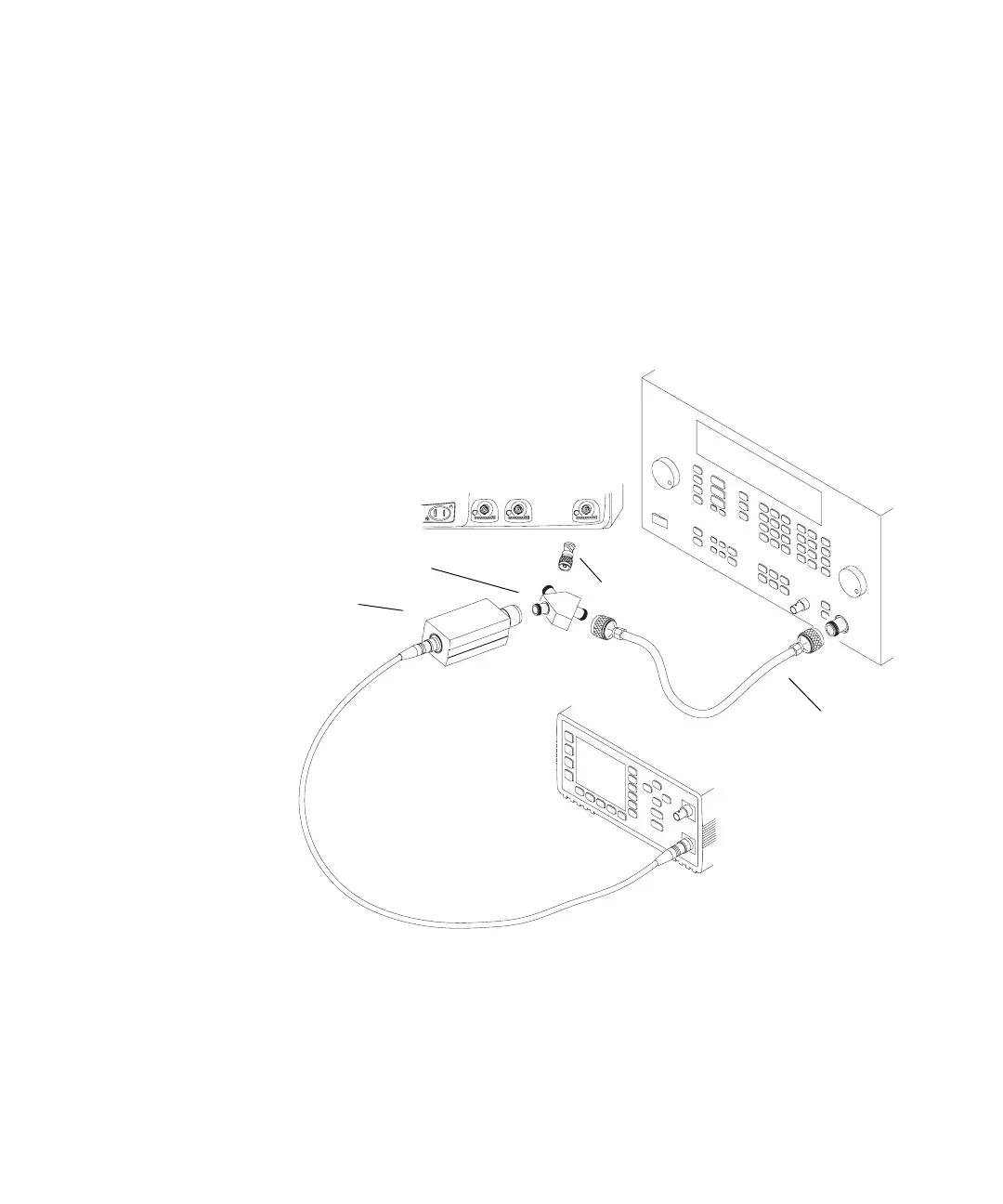

Figure 5 Connect equipment for external trigger sensitivity test
(2-channel models)
Oscilloscope
Signal
Generator
Power Meter
Power Splitter
Power Sensor
N to BNC adapter
N Cable
