90 5000 Series Oscilloscopes Service Guide
5 Replacing Assemblies

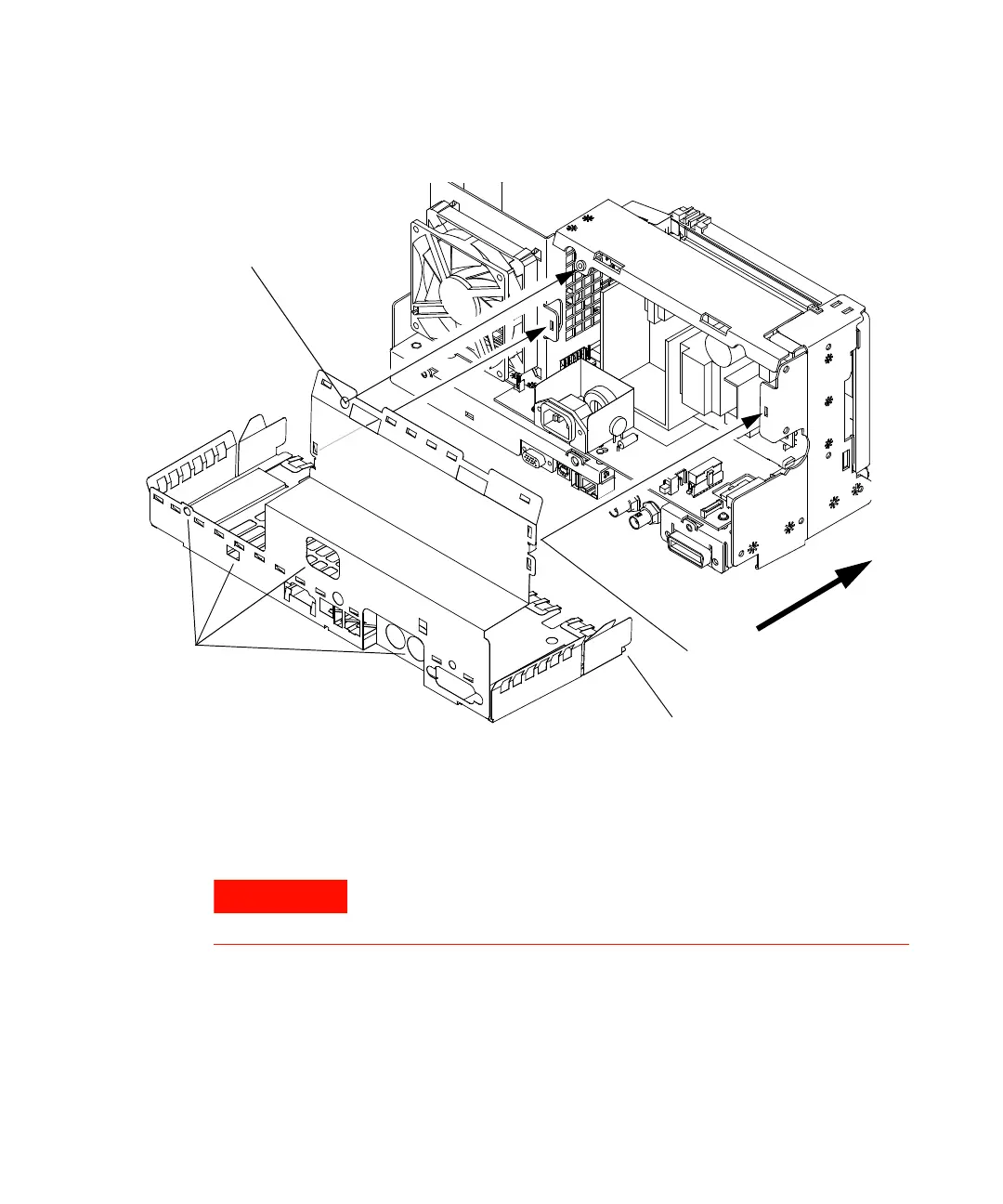

Figure 23 Main shield reinstall
3 To reinstall shield, carefully push it in place around the
chassis taking care to align the shield with connectors,
cabinet mounting screw locations, and shield tabs to chassis
slots locations.
Align main shield with
connectors and cabinet
mounting holes
Tabs on shield must be
inserted through slots on
chassis
Hole must align onto standoff
so that shield makes good
contact with deck
Make sure shield corners are
inside front panel edge.
WARNING
Thin sheet metal parts may have sharp edges. Handle with care to avoid injury.
