116 5000 Series Oscilloscopes Service Guide
6 Replaceable Parts
Exploded Views
The following exploded views provide a graphical
representation of the oscilloscope at the time this manual was
released. Not all parts are shown. Your parts may be slightly
different thank those shown. These views provide reference
designator numbers that map to those used in the parts list
table in this chapter.

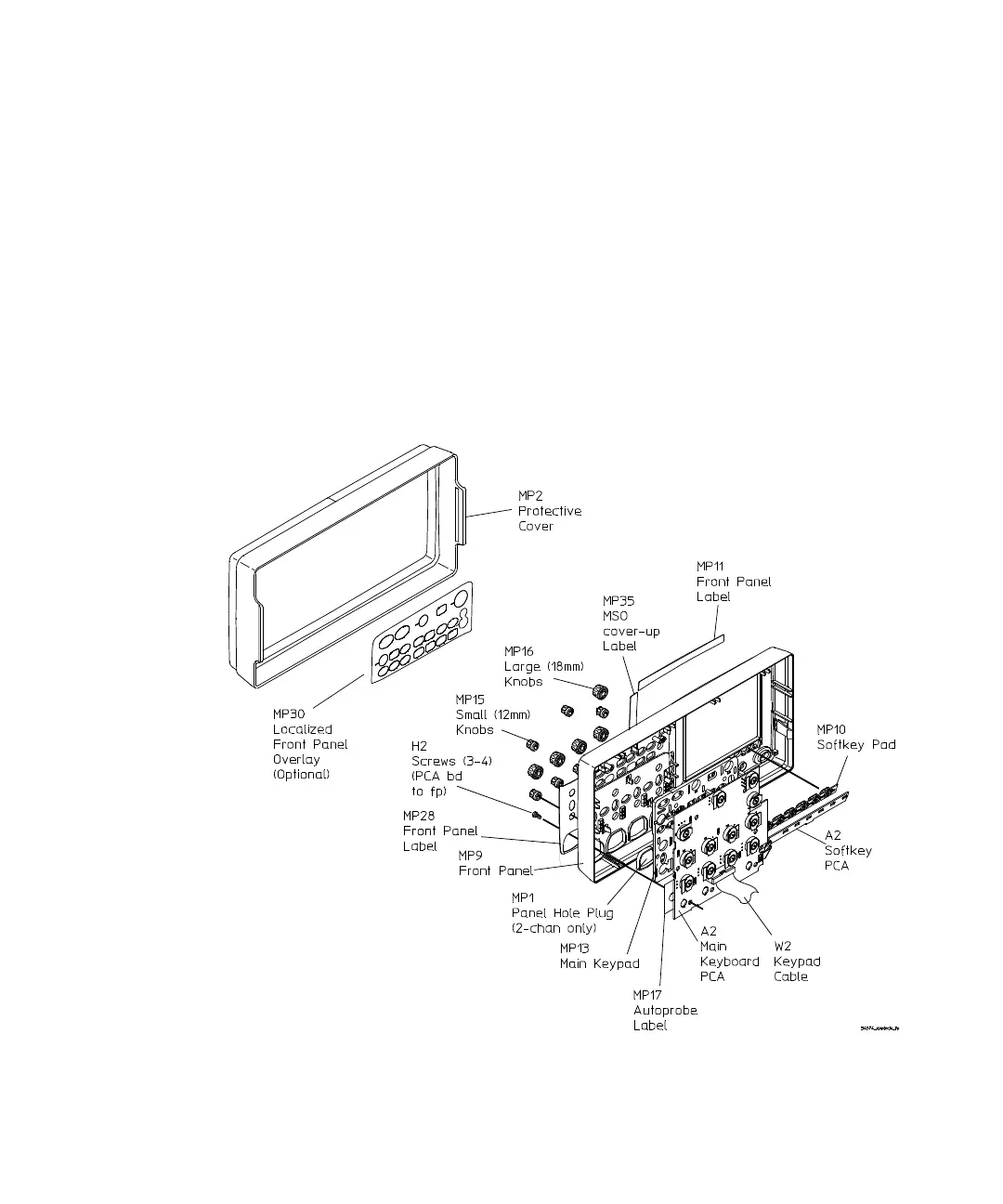

Figure 41 Exploded View 1 of 2
