82 5000 Series Oscilloscopes Service Guide
5 Replacing Assemblies
To remove the storage lid
The storage lid is designed to come off without breaking.
1 Push back on the lid until it snaps out of the slots.
2 To reinstall the lid:
a Insert the left hinge into the slot.
b Push the lid all the way to the left.
c Snap the right hinge into the slot.

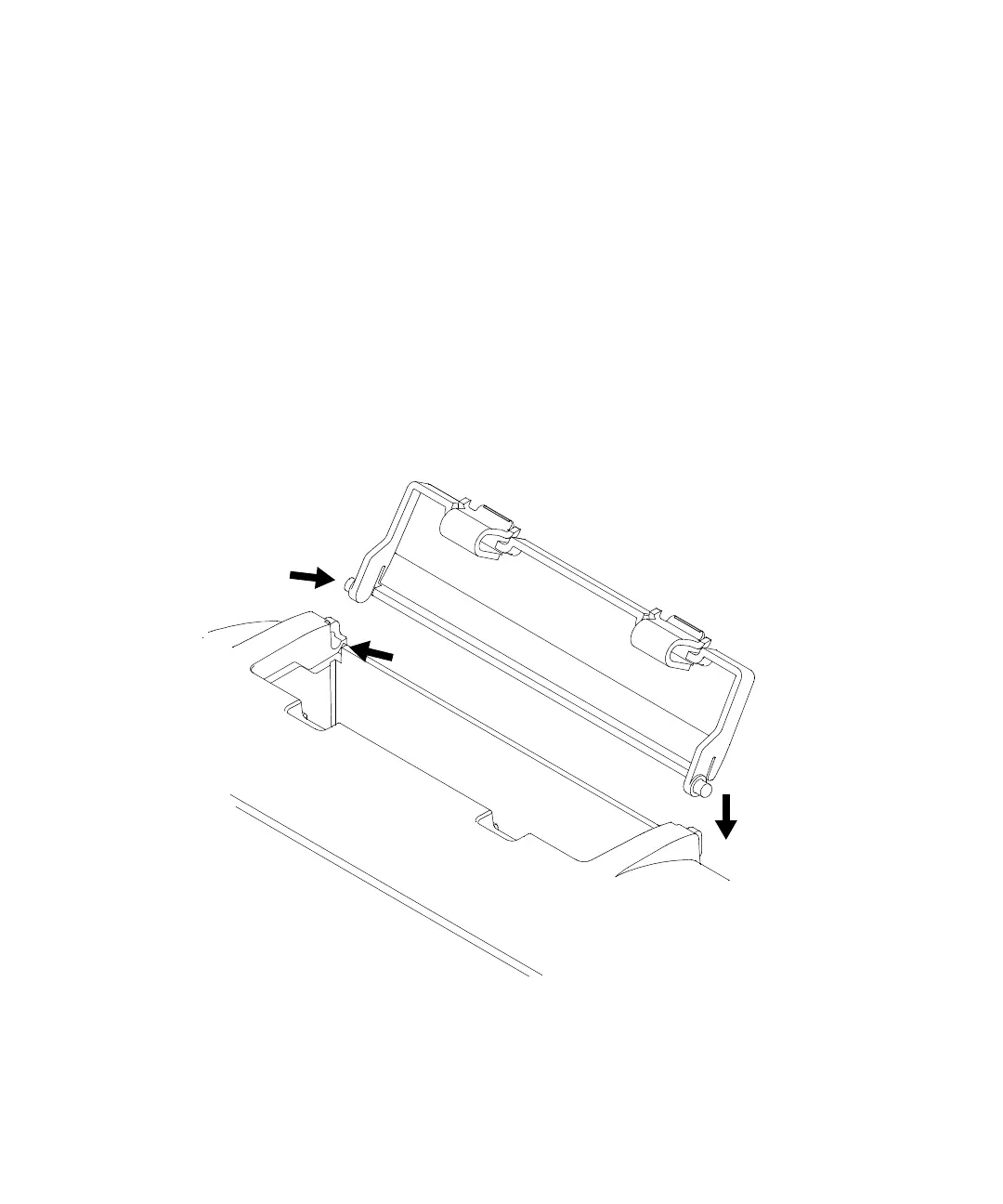

Figure 17 Installing the hinged storage lid
Insert hinge
into slot
Snap second hinge
into place
Push
