Agilent Technologies 5000 Series - Figure 12 System Board Test Point Locations

70 5000 Series Oscilloscopes Service Guide
4 Troubleshooting

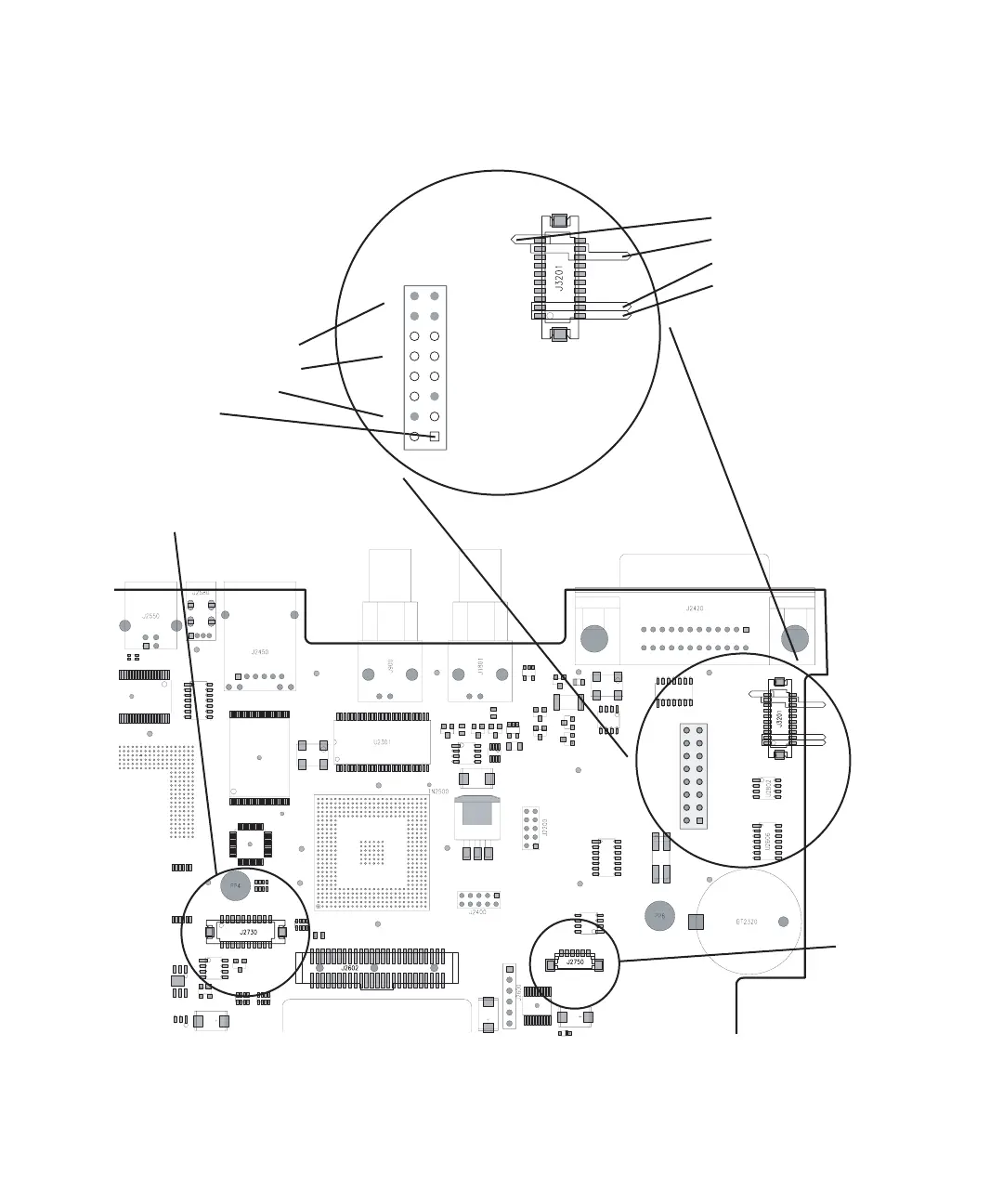

Figure 12 System board test point locations
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
J3201
Pin 19 (-15V)
Pin 16, 17, or 18 (+15V)
Pin 3 or 4 (-12V)
Pin 1 or 2 (+12V)
J3200 (mounted
on other side)
Pin 8, 15, or 16 (+1.5 V)
Pin 12, 13, or 14 (+3.3V)
Pin 9, 10, or 11 (+5V)
Pin 1 (-5.2V)
J2730
J2750
1
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
