84 5000 Series Oscilloscopes Service Guide
5 Replacing Assemblies

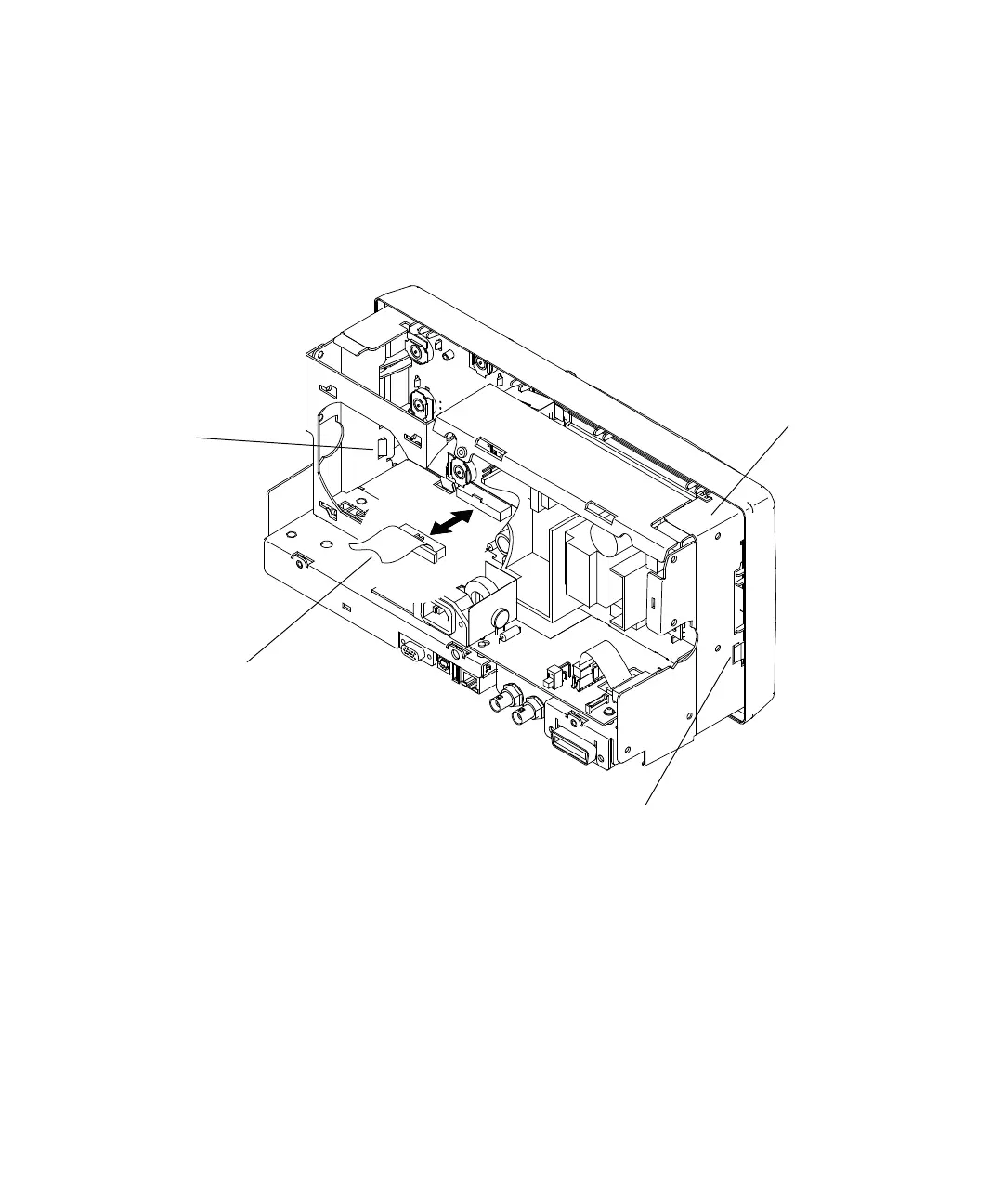

Figure 19 Disconnecting ribbon cable and releasing tab retainers
Keyboard
Ribbon Cable
Retainer
Tab
Retainer
Tab
Deck
Assembly
Note: For clarity, Fan assembly removed and areas
shown cut away.
