Installation
AC Line Power Supply Requirements
A.3 AC Line Power Supply Requirements
The Agilent Technologies 8156A can operate from any single-
phase AC power source that supplies between 100V and 240V at a
frequency in the range from 50 to 60Hz. The maximum power
consumption is 40VA with all options installed.
Line Power Cable
In accordance with international safety standards, this instrument
has a three-wire power cable. When connected to an appropriate
AC power receptacle, this cable earths the instrument cabinet. The
type of power cable shipped with each instrument depends on the
country of destination. Refer to Figure A-1 for the part numbers of
the power cables available.

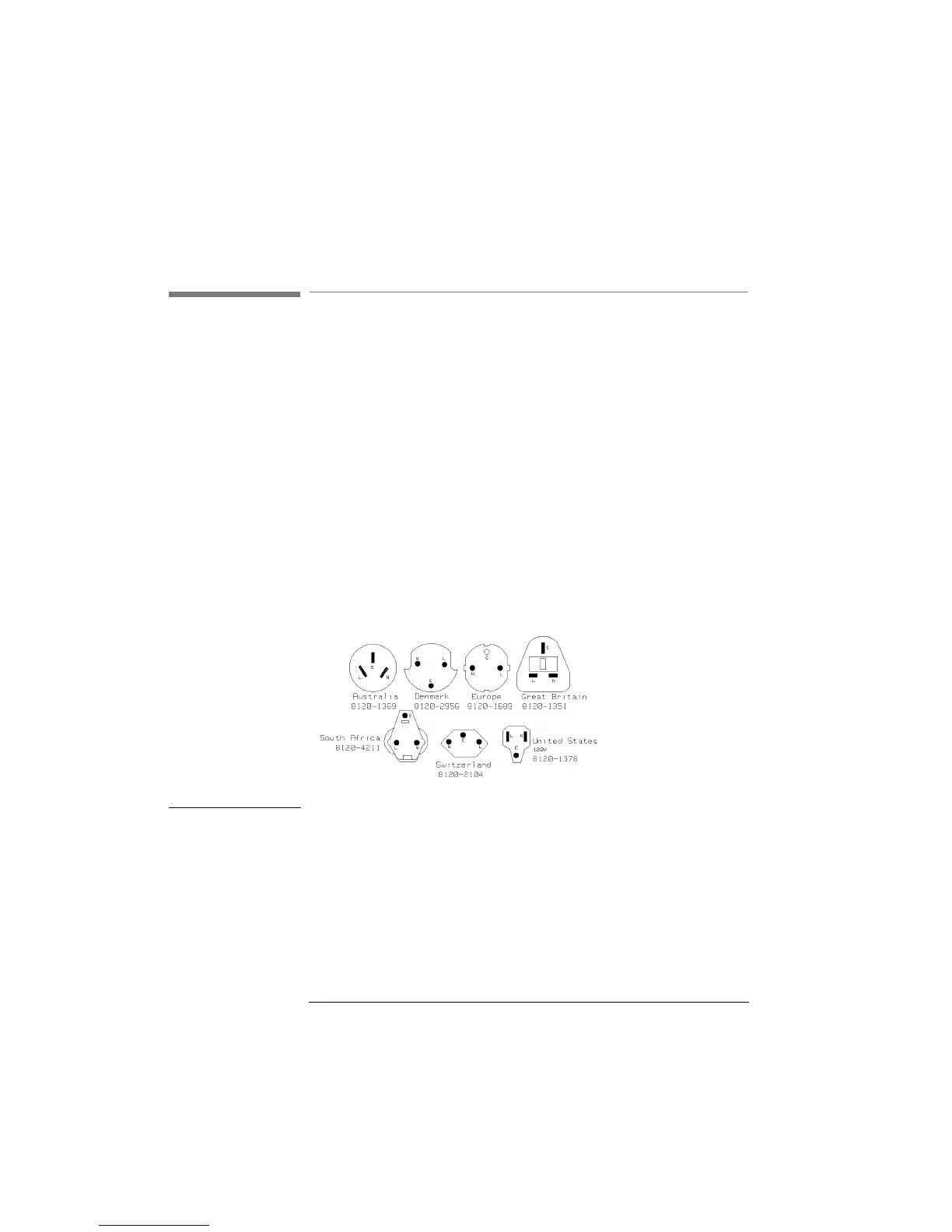

Figure A-1 Line Power Cables - Plug Identification
WARNING To avoid the possibility of injury or death, you must observe the
following precautions before switching on the instrument.
• If this instrument is to be energized via an autotransformer for
voltage reduction, ensure that the Common terminal connects to the
earth pole of the power source.
• Insert the power cable plug only into a socket outlet provided with a
protective earth contact. Do not negate this protective action by the
using an extension cord without a protective conductor.
