Performance Tests
Performance Test
I. Total Insertion Loss Test
Carry out the following Insertion Loss Test at 1310nm and 1550nm
with single-mode fibers using the the equipment listed previously.
1. Turn the instruments on and allow the instruments to warm up.
2. Connect the equipment as shown in the appropriate Total
Insertion Loss Test Setup 1.

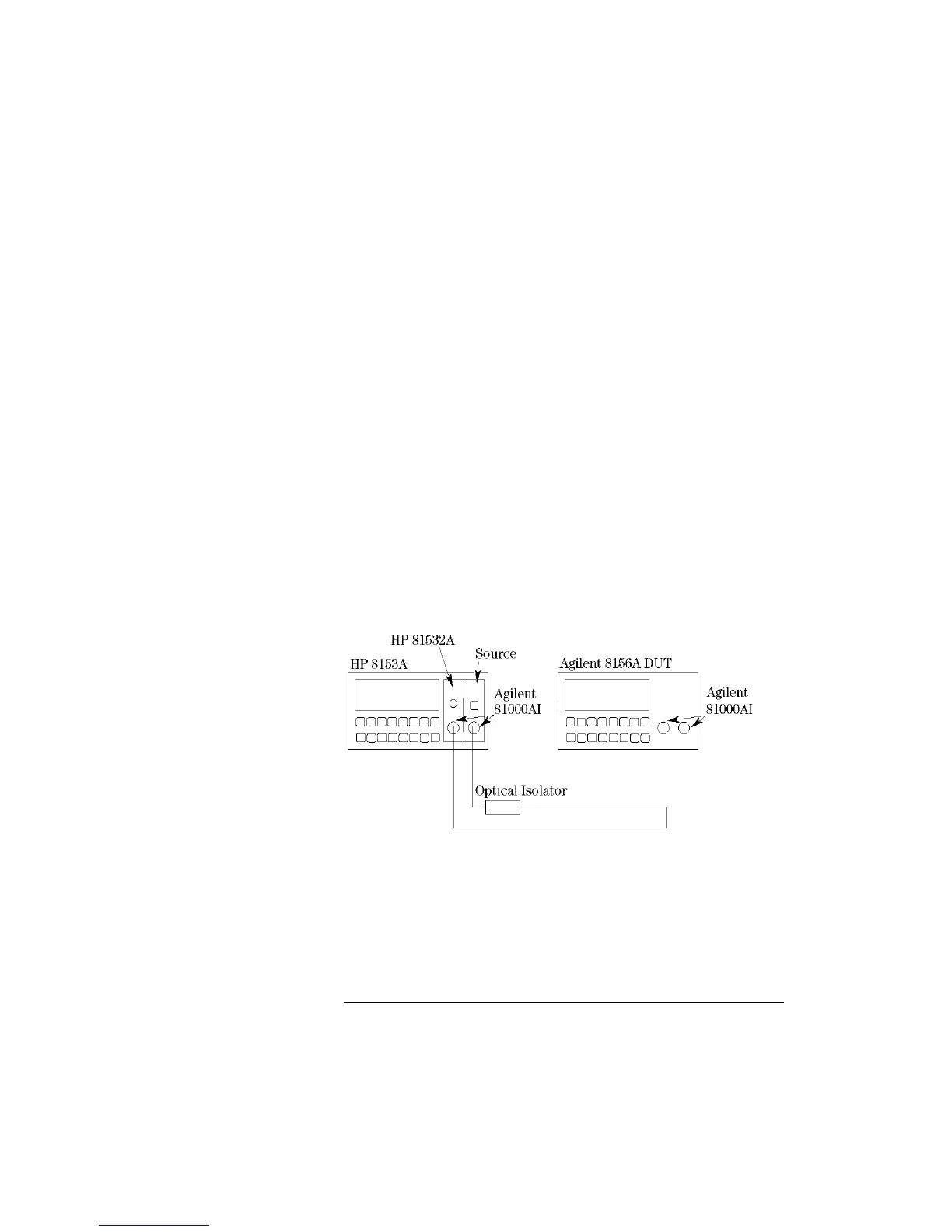

Figure D-1 Total Insertion Loss Test Setup 1, Options 100, 101, 121
Specifications Agilent 8156A Typ.
Insertion loss (including both connectors) Option 100 <5.4dB
Option 101 <3.0dB
Option 121 <4.2dB
Option 201 <3.0dB
Option 221 <3.3dB
Option 350 <3.0dB
