Agilent Technologies 8565EC Service Guide

134 Chapter3
Manual Adjustment Procedures
6. Calibrator Amplitude Adjustment
6. Calibrator Amplitude Adjustment
Assembly Adjusted
A15 RF assembly
Related Performance Test
Calibrator Amplitude and Frequency Accuracy
Description
The CAL OUTPUT amplitude is adjusted for −10.00 dBm measured
directly at the front panel CAL OUTPUT connector.

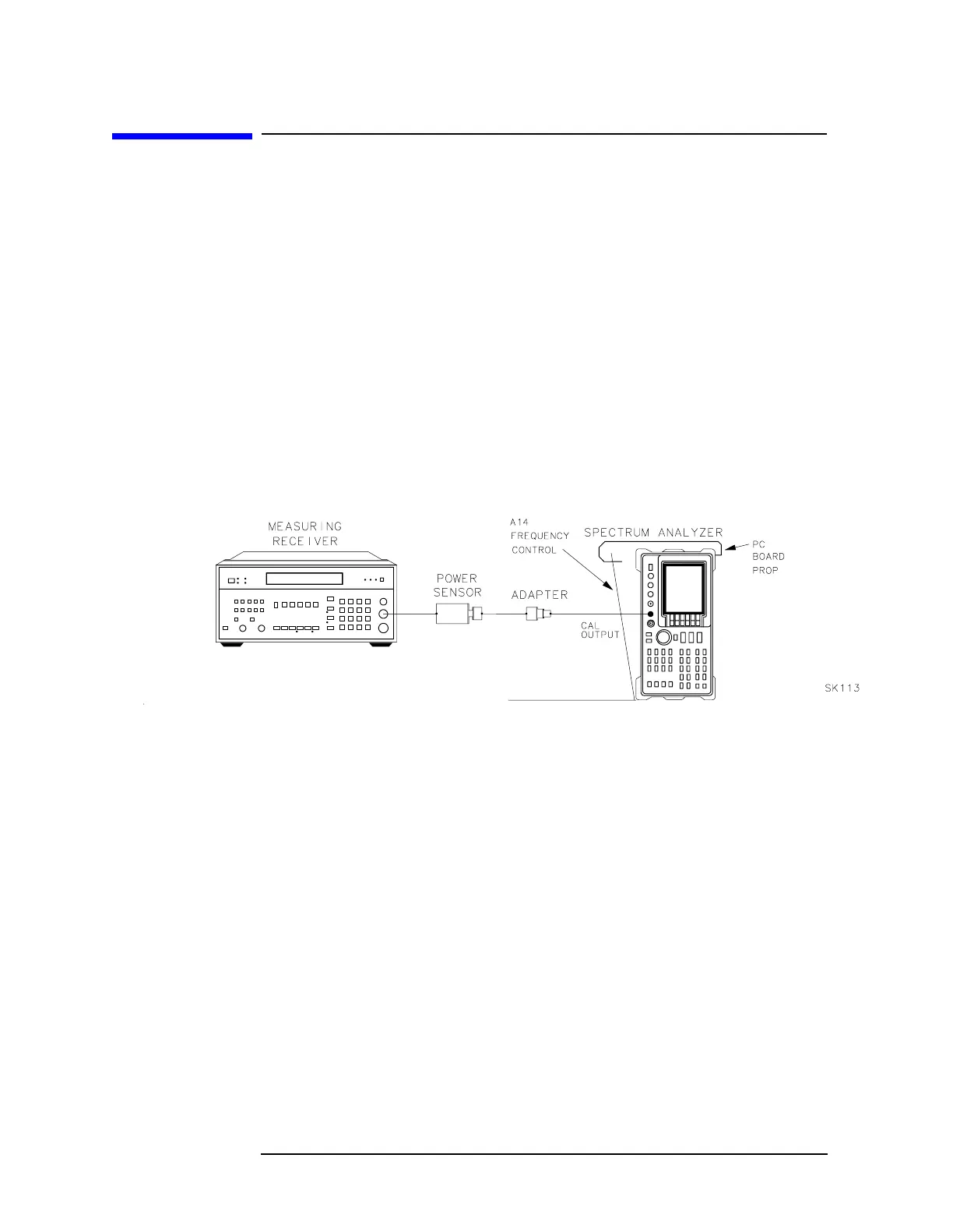

Figure 3-15 Calibrator Amplitude Adjustment Setup
Equipment
Measuring receiver ...........................................................8902A
Power sensor ......................................................................8482A
Adapters
Type N (f) to BNC (m) ................................................ 1250-1477
