170 Chapter3
Manual Adjustment Procedures: 3335A Source not Available
3a. DC Log Amplifier Adjustments

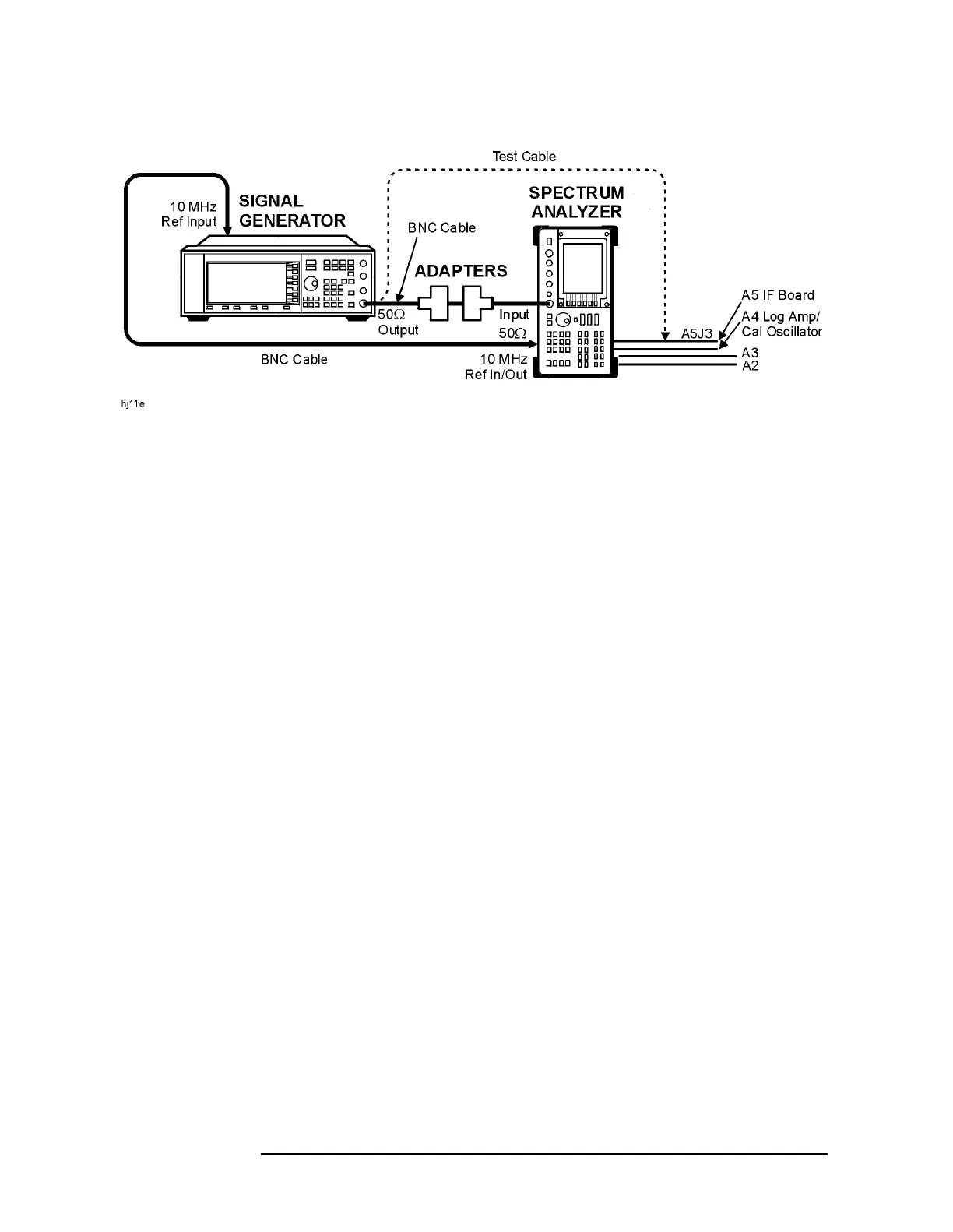

Figure 3a-3 DC Log Adjustment Setup
Equipment
Signal Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E4421B
Adapters
Type N (m) to BNC (f) . . . . . . . . . . . . . . . . . . . . . . . . 1250-1476
Type N (f) to 2.4 mm (f) . . . . . . . . . . . . . . . . . . . . . . . . . 11903B
Cables
BNC, 122 cm (48 in) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10503A
Test cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85680-60093
