Chapter 3 145
Manual Adjustment Procedures
10 . External Mixer Bias Adjustment
10. External Mixer Bias Adjustment
Assembly Adjusted
A15 RF assembly
Related Performance Test
There is no related performance test for this adjustment.
Description
A voltmeter is connected to the spectrum analyzer IF INPUT with the
external mixer bias set to off. The bias is adjusted for a 0 Vdc output.

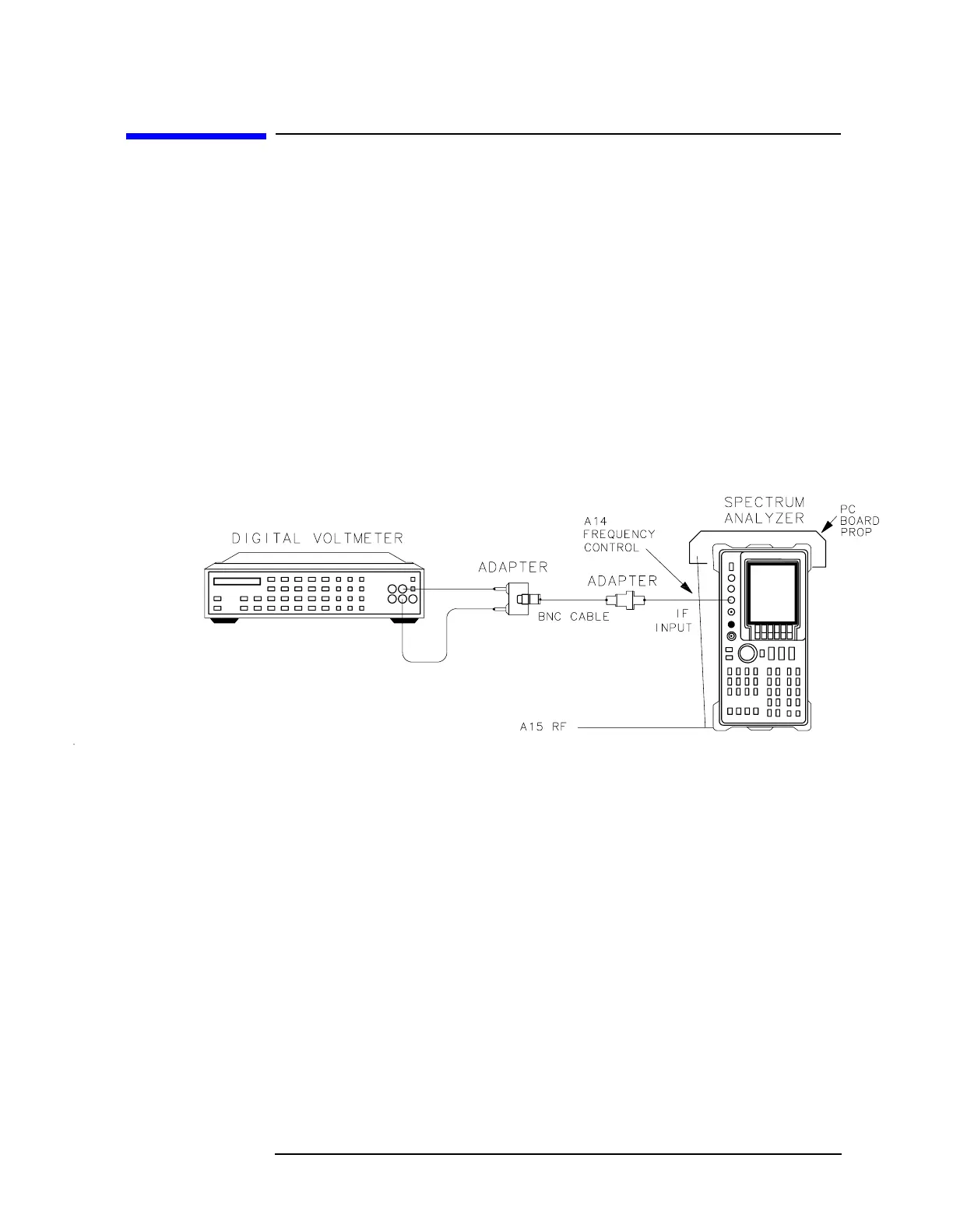

Figure 3-20 External Mixer Bias Adjustment Setup
Equipment
DVM ......................................................................................3456A
Adapters
Type BNC (f) to SMA (m) .............................................. 1250-1200
Type BNC (f) to dual banana plug ............................... 1251-2816
Cables
BNC, 122 cm (48 in) ...........................................................10503A
