430 Chapter9
IF Section
Troubleshooting Using the Diagnostic Software
Troubleshooting Using the Diagnostic
Software
NOTE Whenever the software program says "Connect the 8566 to .…," just
about any spectrum analyzer with GPIB will work. However, an 8566B
or 8563E is recommended for speed of measurement. (The 8562A and
8560A-Series spectrum analyzers are much slower when using the
diagnostics program.)
For required hardware and instructions on how to load the
8564E/8565E adjustment/diagnostic software, refer to Chapter 2 ,
“Adjustment/Diagnostic Software.” The diagnostic software can be used
to quickly isolate a number of common problems that might cause the
spectrum analyzer to fail. Carefully follow the instructions displayed by
the software program.

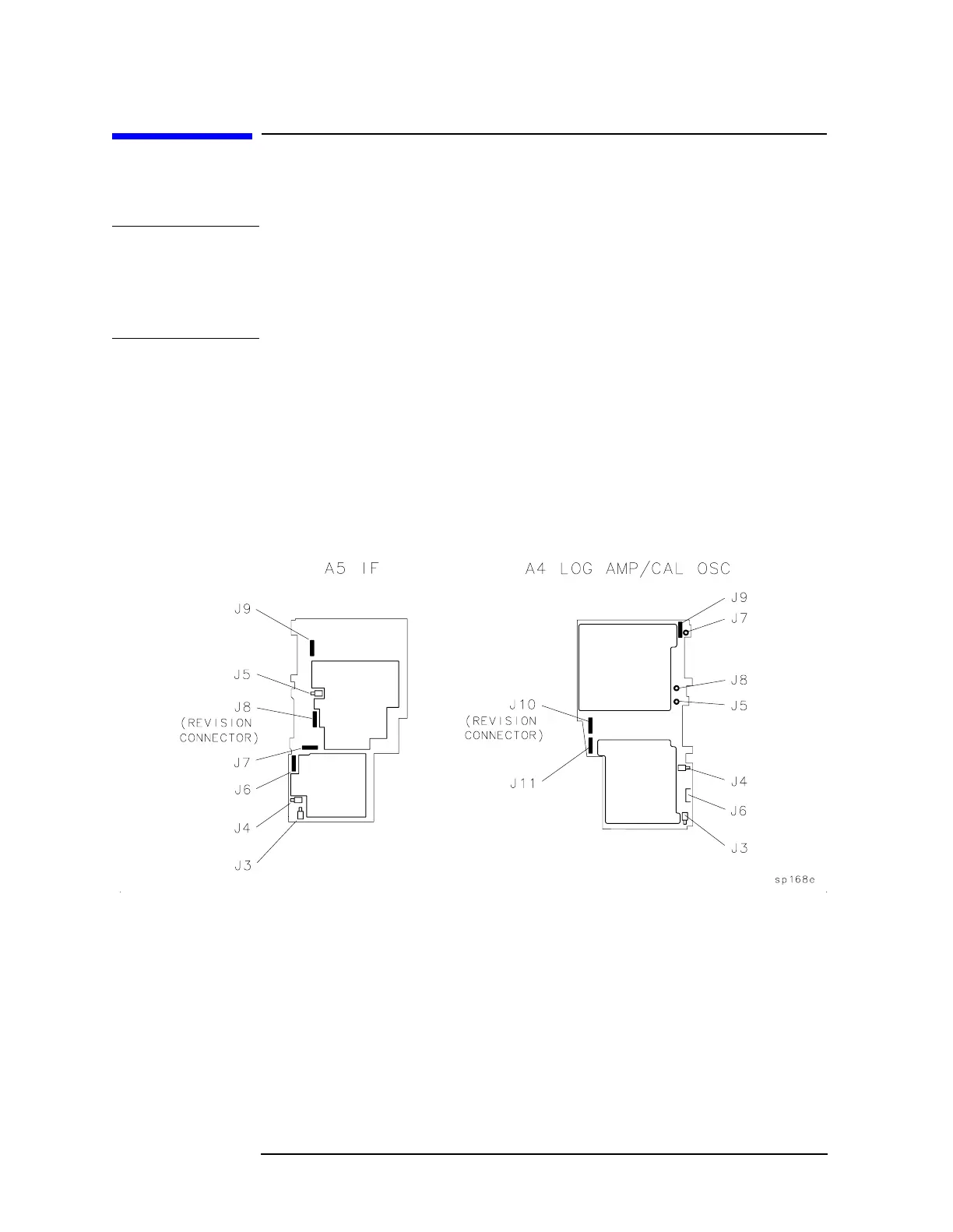

Figure 9-1 A4 and A5 Test Connectors
