282 Maintaining Your GC

14 Maintaining the NPD

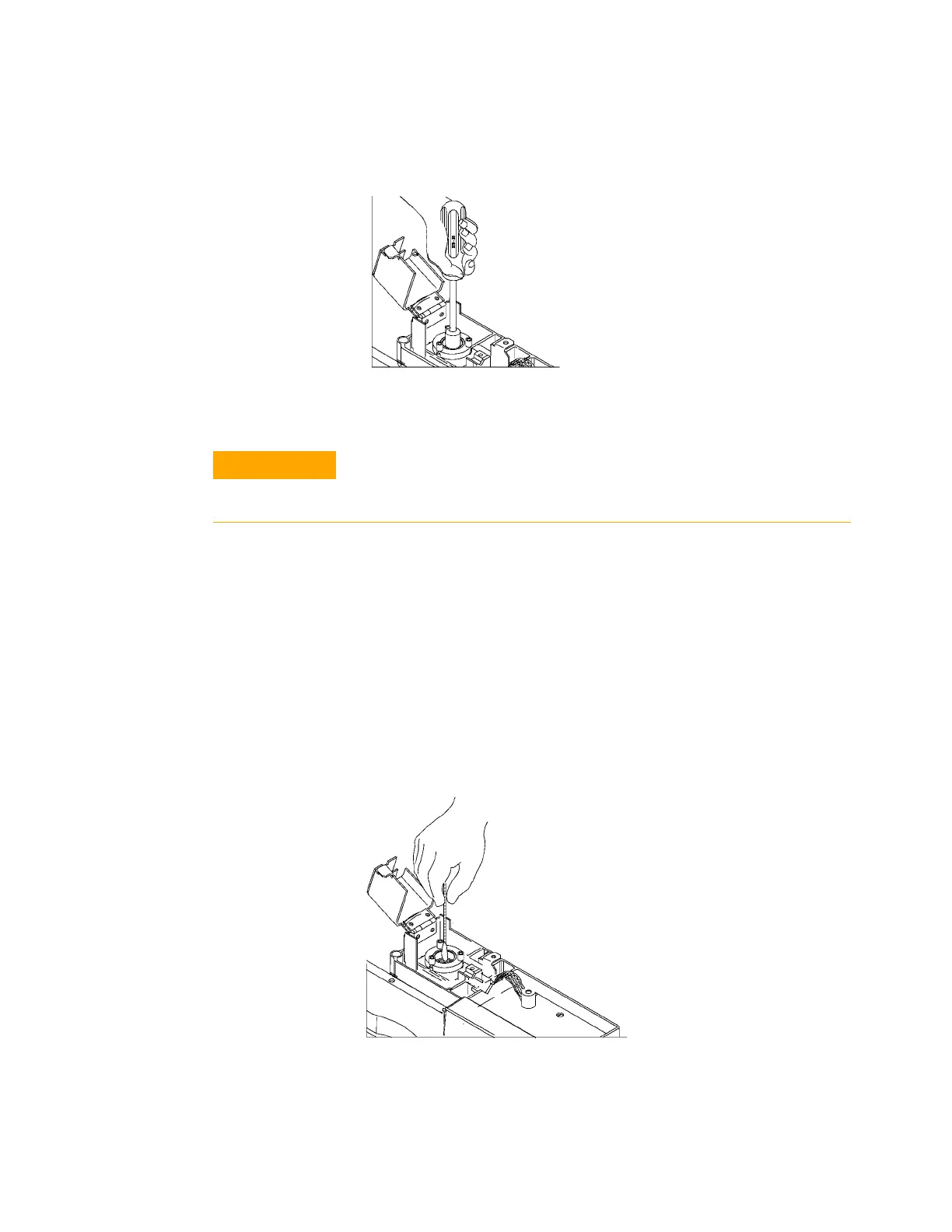

Loosen the jet with a nut driver.

15 Pull the jet straight out of the detector. Use tweezers, if

necessary.

16 Place the jet in the detector body.

17 Using a nut driver, tighten the jet 1/6 turn past

finger- tight. Do not overtighten.

18 Attach the column to the detector. (See “To Attach a

Capillary Column Adapter on an Adaptable NPD” on

page 266.)

19 Use a cotton swab wetted with solvent to clean the

residue from the inside of the collector and around the

jet. If the collector appears very dirty, replace it with a

new one.

20 Install the bottom metal C- ring, the lower ceramic

insulator, and the top metal C- ring. See Figure 7.

21 Install the collector.

CAUTION

The adaptable NPD jet is longer than the capillary optimized NPD

extended jet and should never be installed in a capillary optimized

detector.
