aurora
Sonata
Hand Held ISDN Tester—User Guide
2-10 427869
Removing & replacing the belt hook
aurora
Sonata
has a removable belt hook, attached to the battery
pack cover at the back of the unit. You can use the hook to
carry the unit or to hang it up for hands-free operation.
Removing the belt hook
-1-

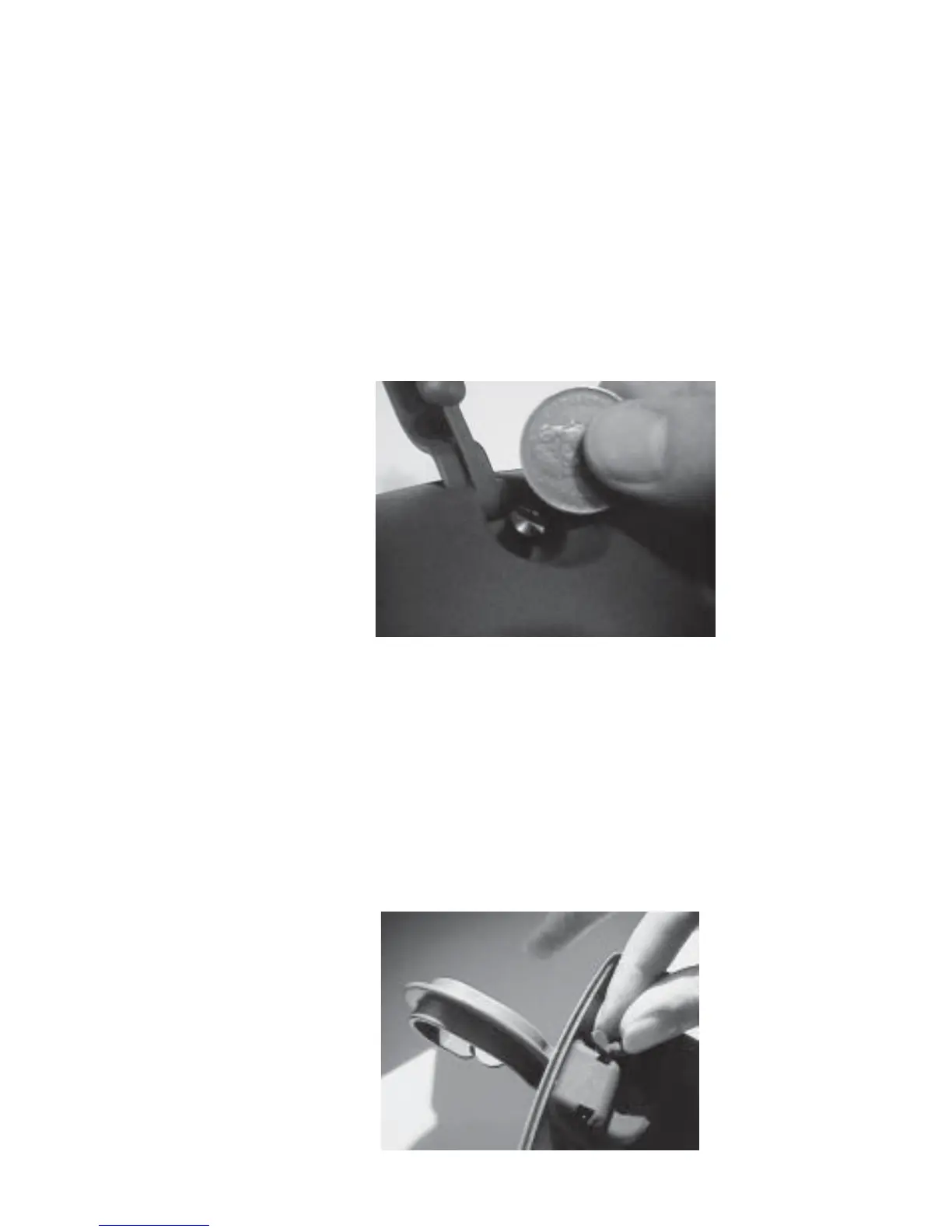

Remove the battery pack cover. To do this:
• Loosen the screw by turning it
anticlockwise using a coin or screwdriver.
• When the screw is released, it pops up.
Slide the cover upwards to remove.
-2-
Turn the cover over to show the belt hook
release mechanism. The hook is held in place
by a small bolt.
-3-
Remove the bolt from its holder. To do this:
• Release the bolt by pushing it upwards.
• Slide the bolt out of its holder.
