262 1100 Series WS MWS Reference Manual
8 Control Module Screens of the Well-plate Samplers

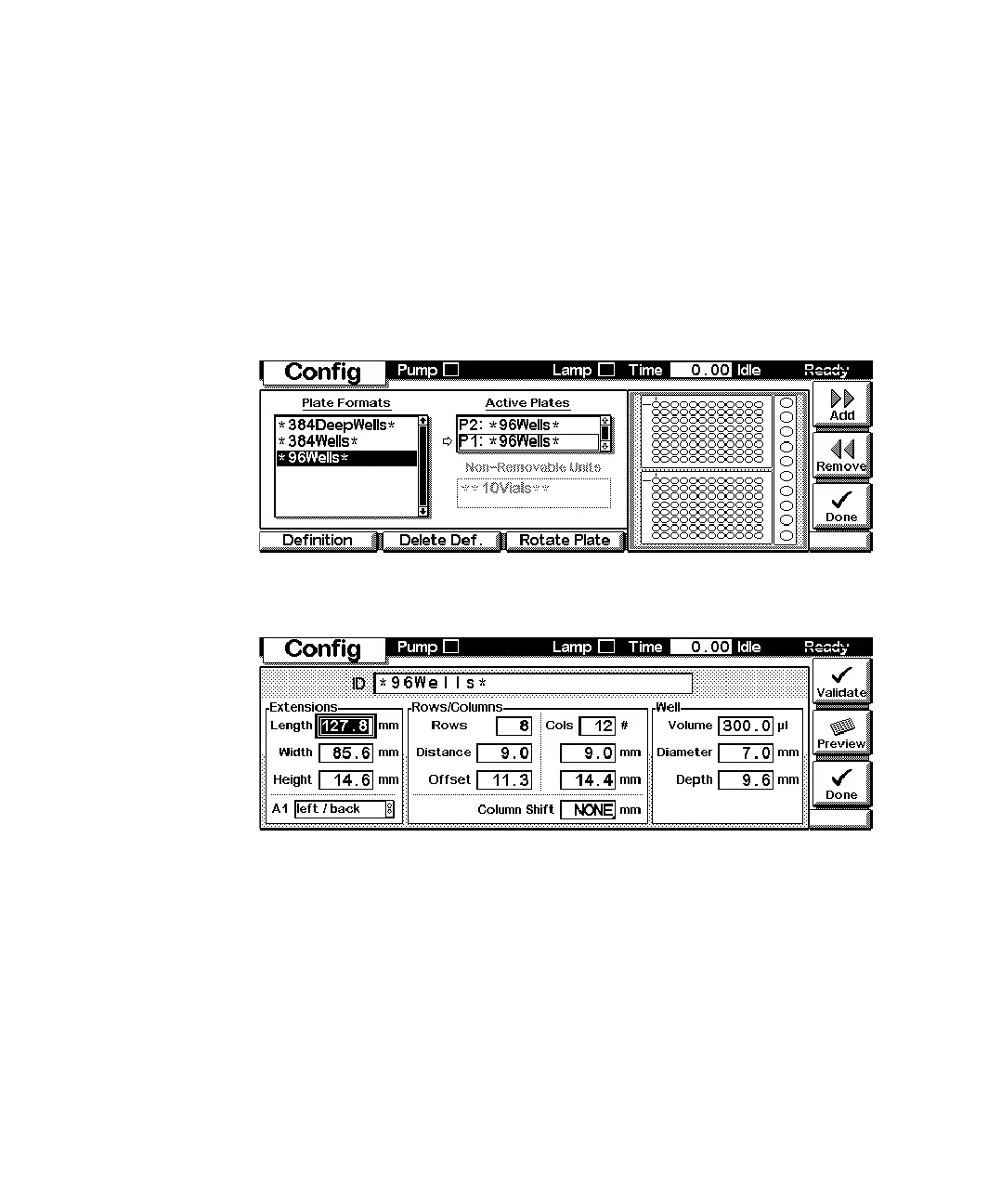

Configure - Trays
Use the F2-key (Trays) to view and configure the detected sample trays.
Select/highlight a tray configuration with the help of the selection keys. F7/F8
(Add/Remove) allows you to move configurations from available Plate
Formats to the Active Plates and vice versa. Press F2 (Delete Def.) to delete a
selected definition. Press F3 (Rotate Plate) to rotate the selected plate.
Changes must be acknowledged with F6 (Done).
Use F1 (Definition) to edit the definition of a well-plate. Changes must be
acknowledged with F6 (Done).
Preview gives you a view of the well-plate as it is currently defined.
