Agilent 1290 Infinity Binary Pump User Manual 37
Installing the Module
3
Flow connections to the pump
2 Place the solvent cabinet on top of the module stack that includes the 1290
Infinity Binary Pump.
3 Put the four bottles into the solvent cabinet and screw a bottle head
assembly onto each bottle.

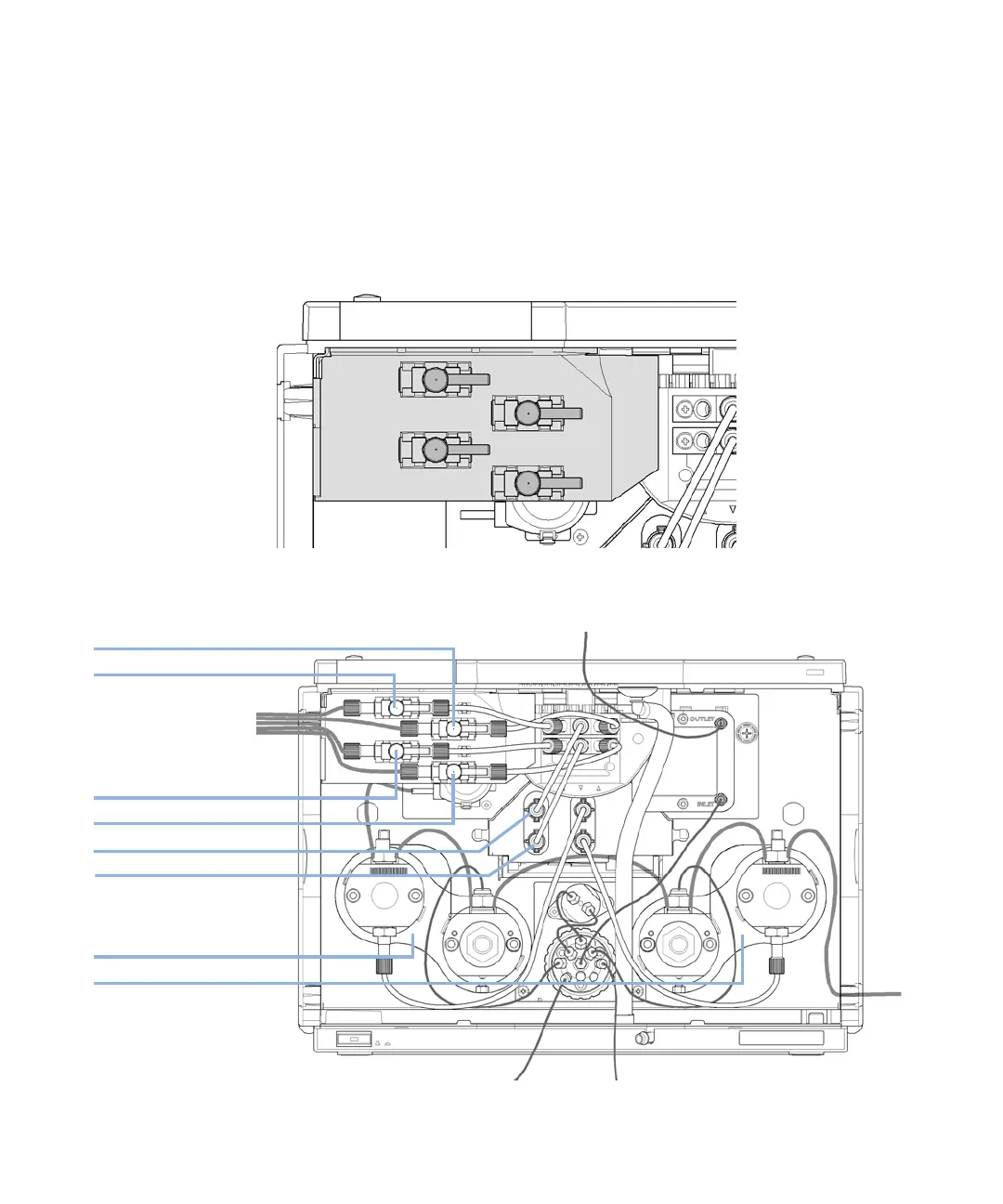

4 Install the shutoff valve panel at the top left corner of the instrument.
5 Connect the solvent tubes from the bottle head assemblies to the inlet
connectors A1, A2, B1 and B2 of the solvent selection valves. Use the brown
bottle for the aqueous solvent (usually channel A1).
6'
6&
7&
7'
6
7
6
7
