Agilent InfinityLab LC Series Vialsamplers User Manual 153
4 Preparing the Module
Flow Connections to the Vialsampler
7 Install the capillary from port 6 of the injection valve to the ICC or MCT

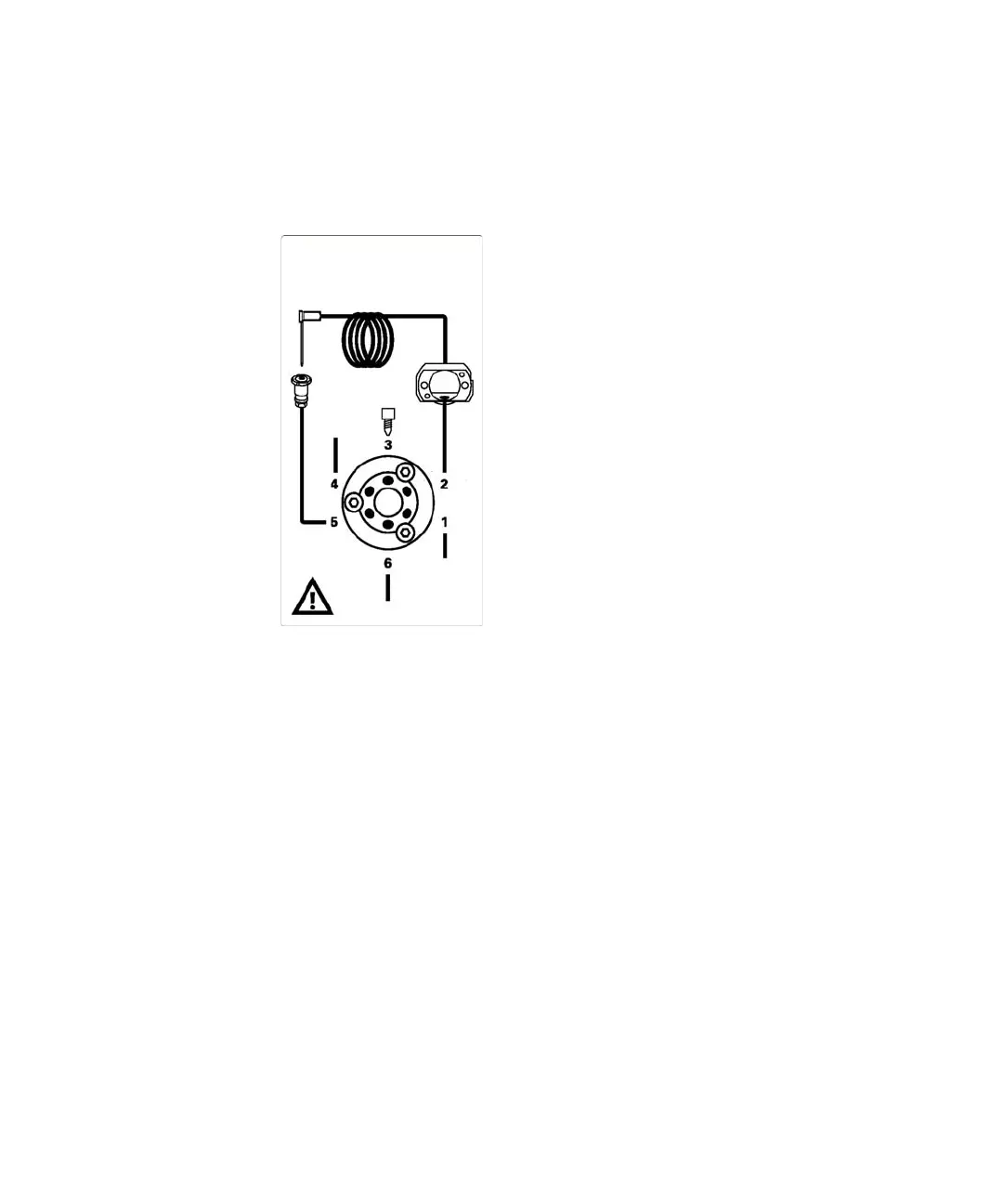

The correct plumbing is shown in the figure below and is attached to the
module.
8 Prime and purge the complete sampler.
Waste
Column
Pump
