Agilent Technologies InfinityLab LC Series - 2 Position;6 Port Injection Valve, 1300 bar

Agilent InfinityLab LC Series Vialsamplers User Manual 300
9 Parts and Materials for Maintenance
2 Position/6 Port Injection Valve, 1300 bar
2 Position/6 Port Injection Valve, 1300 bar

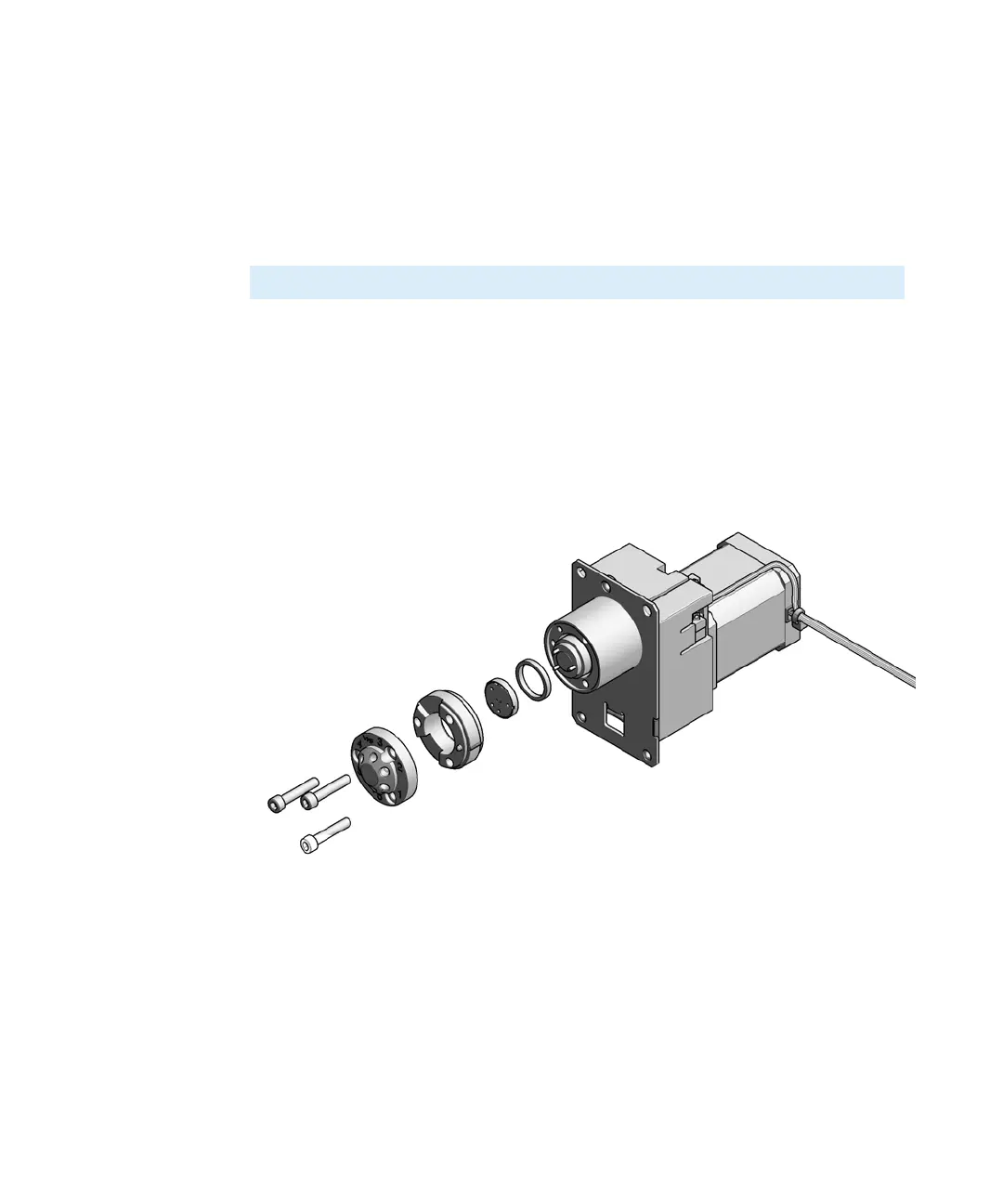

Figure 50 2 Position/6 Port Injection Valve 1300 bar
Item p/n Description
5067-4238 2 Position/6 Port Injection Valve, 1300 bar
1 5068-0018 Screws, ST, 8-32, Hex 9/64, 10/pk
2 5068-0216 Stator, Injection Valve, 1300 bar
3 5068-0118 Stator ring
4 5068-0007 Rotor Seal, Vespel, 1300 bar
5 1535-4045 Bearing ring
1
2
3
4
5
