9 Parts and Materials for Maintenance
2 Position/6 Port Injection Valve, 600 bar
2 Position/6 Port Injection Valve, 600 bar

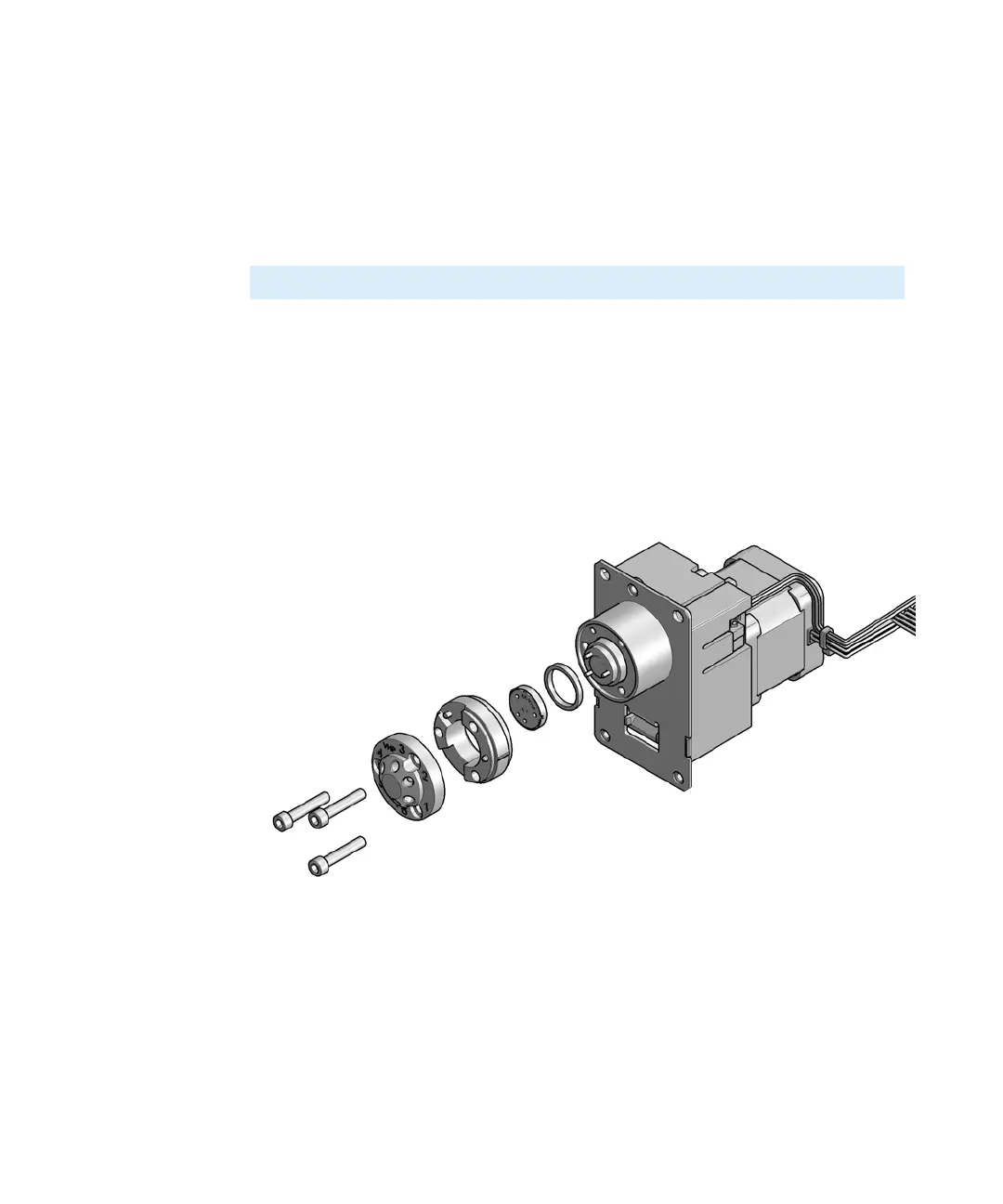

Figure 48 2 Position/6 Port Injection Valve 600 bar/800 bar
Item p/n Description
5067-4245 2 Position/6 Port Injection Valve, 600 bar
1 5068-0018 Screws, ST, 8-32, Hex 9/64, 10/pk
2 5068-0215 Stator, Injection Valve, 600 bar/800 bar
3 5068-0118 Stator ring
4 0101-1416 Rotor Seal, PEEK, 600/800 bar
5 1535-4045 Bearing ring
