Analog Cables
Analog Cables
One end of these cables provides a BNC connector to be connected to Agilent
modules. The other end depends on the instrument to which connection is being
made.

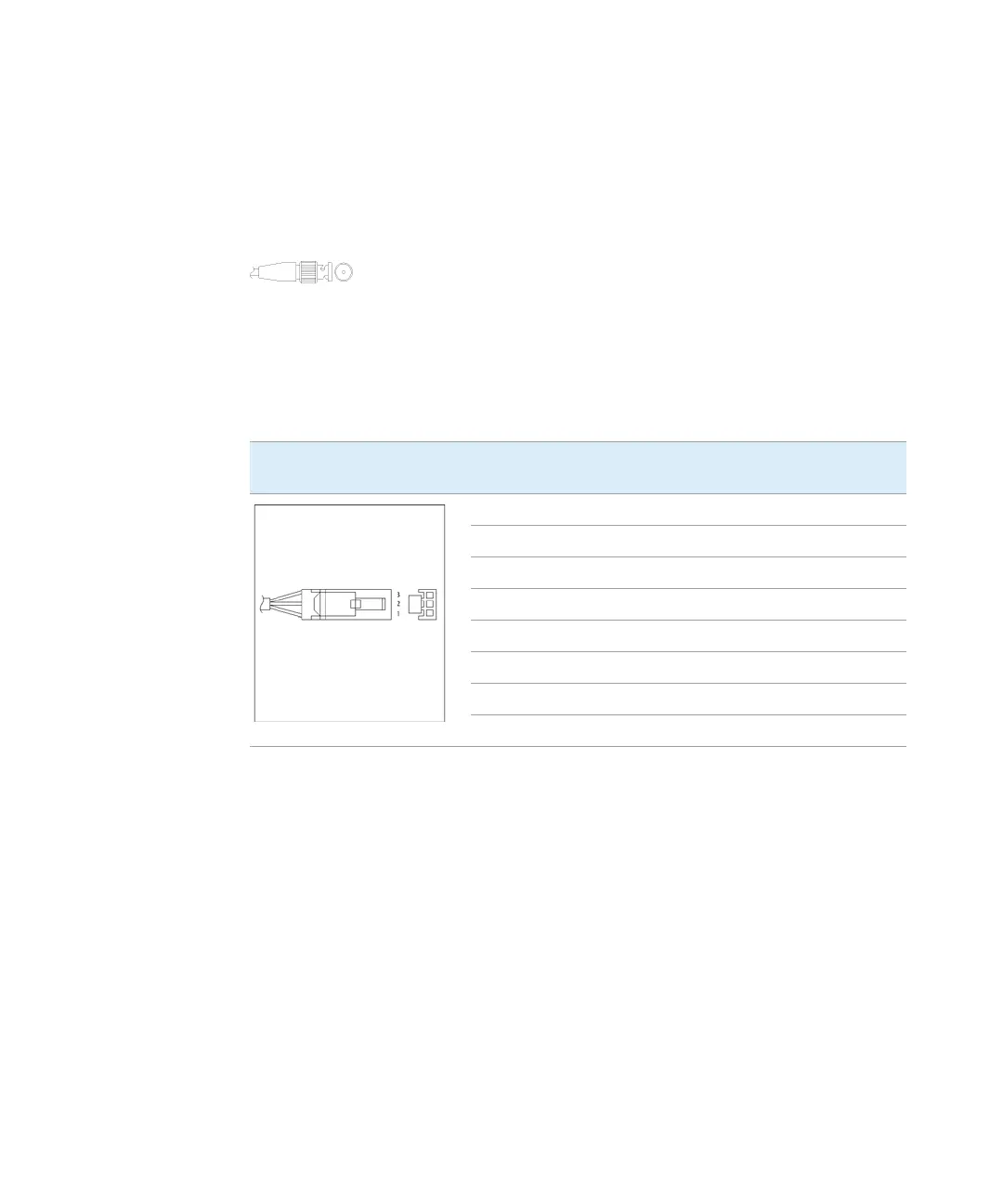

Agilent Module to 35900 A/D converters
p/n 35900-60750 35900 Pin Agilent
module
Signal Name
1 Not connected
2 Shield Analog -
3 Center Analog +
