146 34410A/11A/L4411A User’s Guide
A Appendix: Firmware and Driver Updates
3. Select the I/O interface to the instrument and then select ‘Next’. Enter the
machine name, IP address, GPIB address, or Alias,... as prompted (Figure A-2).
Select ‘Update’ to start the update process.

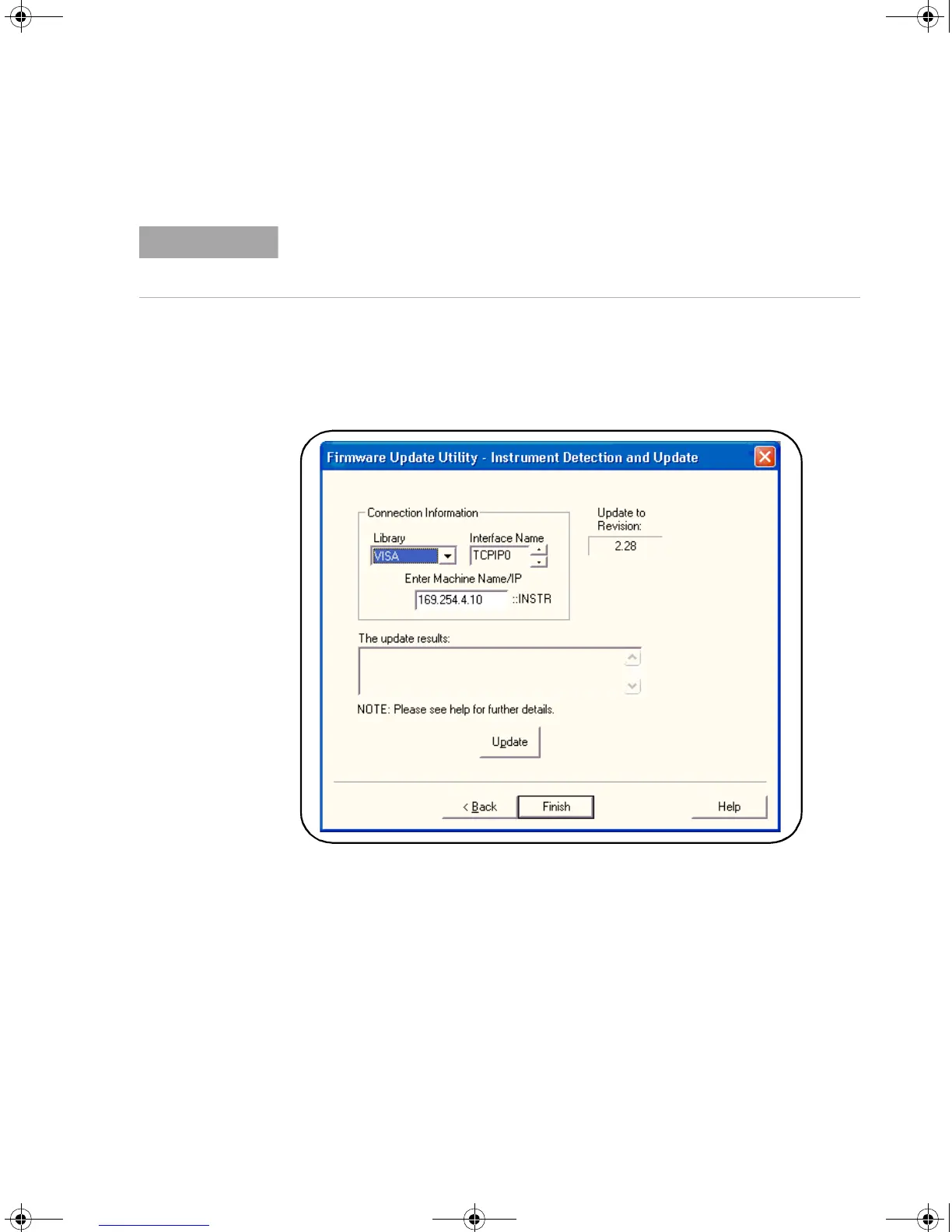

Figure A-2. Specifying the Instrument Address.
The firmware update takes a few moments to complete. The 34410A/11A will
reboot once the update is complete.
The ‘Applicable Model’ window lists the instruments which may be updated by
the specified firmware (.xs) image. The window is not used to select the
instrument receiving the firmware update.
