Allen-Bradley PanelView Plus 7 User Manual

Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015 101
Windows Operating System Chapter 4

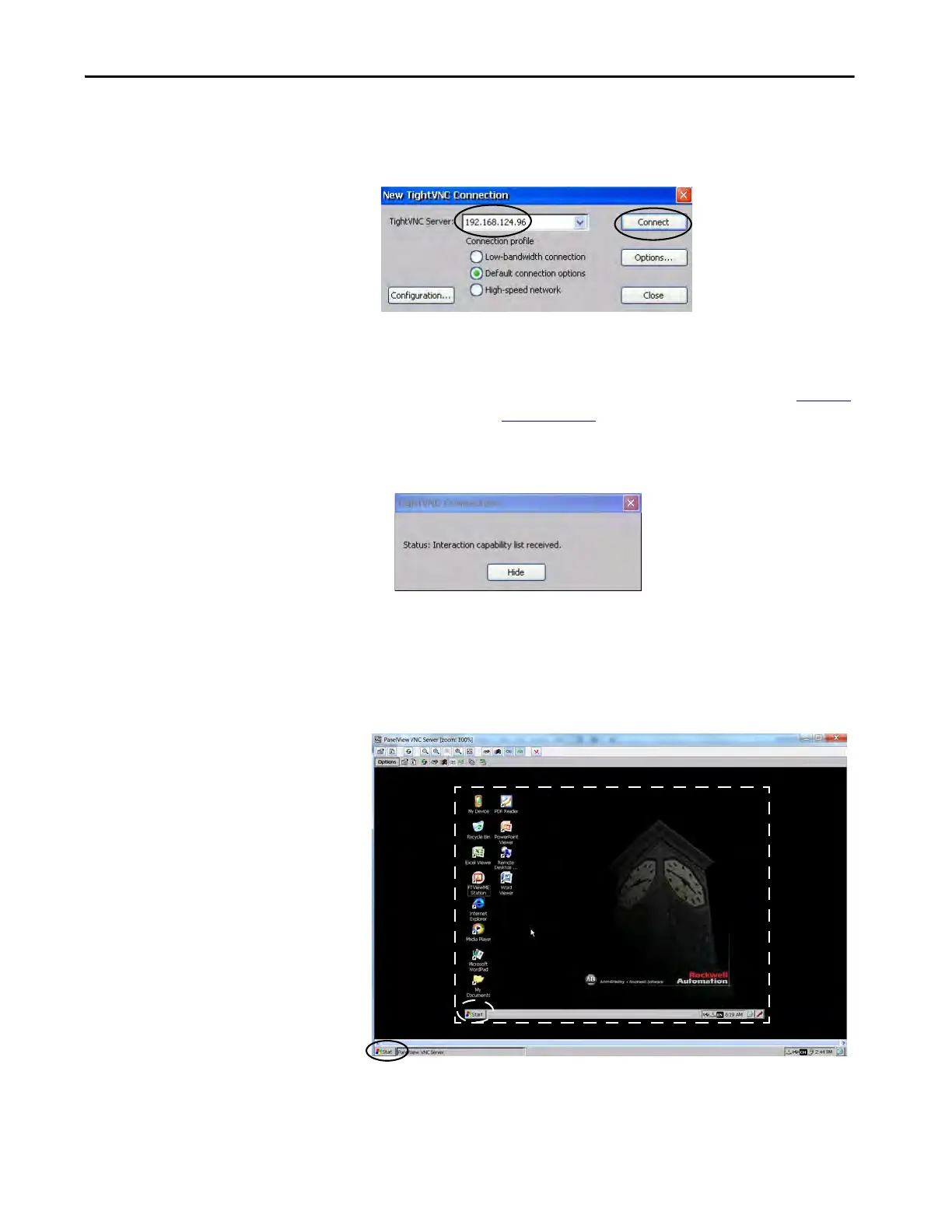

1. Access the Windows desktop of the local terminal.
2. On the local terminal (viewer) desktop, choose Start>Programs>VNC
Viewer.
3. Enter the IP address of the remote terminal that you want to connect to
and click Connect.
A Status message displays while the connection is being made. The
messages can cycle as the status changes.
The message ‘Please wait - initial screen loading’ can also display after
the connection has been made and while the desktop of the remote
terminal is loading.
After the screen has loaded, the desktop of the remote terminal displays
on the local terminal. You can now access the features and functions of
the remote terminal.
TIP Select an IP address from the pull-down menu, or enter an IP
address by using a USB keyboard or soft input panel (see Soft Input
Panels on page 82).
The white dotted line indicates the remote terminal and is only for reference (the dotted
line does not actually appear on the local terminal).
Note the two Start buttons: circled in white is the remote terminal; circled in black is the
local terminal.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
