Chapter 2 Install the PanelView Plus 7 Standard Terminal
Initially, you secure the terminal in the panel by sliding each mounting lever to
a position that is one or two notches greater than the final lock position. For
example, if the final lock position is 1, slide each mounting lever to position 2
or 3. Follow the sequence specific to the terminal size shown in Figure 3 on
page 29.

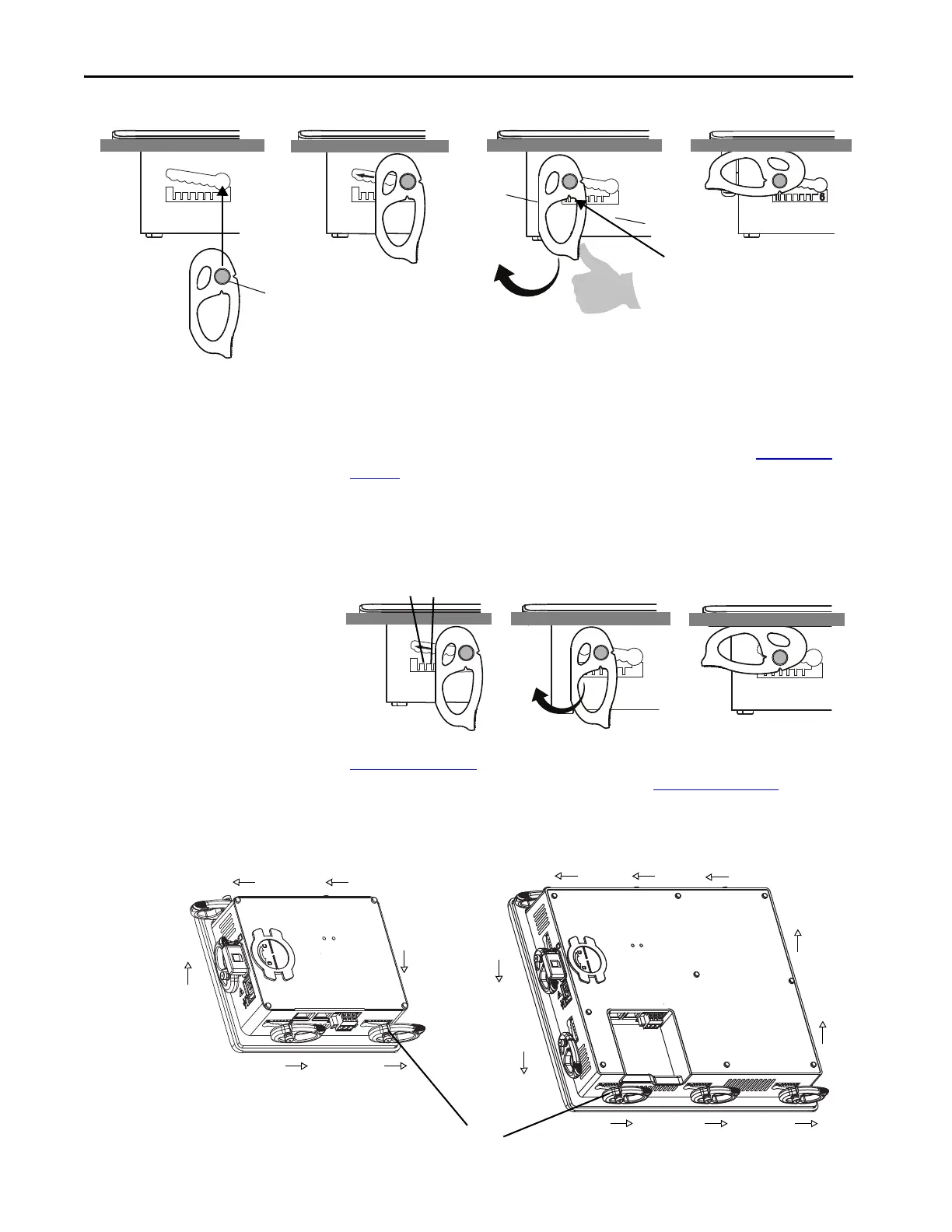

Figure 2 on page 28
shows the mounting lever orientation and locking
sequence for a 5.7-in. and 10.4-in. terminal. See Figure 3 on page 29
for locking
sequence and mounting lever orientations for all terminals.
Figure 2 - Mounting Levers Shown in Locked Position
6
16 1
Flat Side
Knob on reverse side of
mounting lever inserts
into large end of slot.
12 3 4
Inner notch on mounting lever
shows current lever position.
You can use an erasable marker or grease pencil to mark the alignment
marks below the slot for visibility of slot positions.
TIP If the lock position is 6, slide the mounting lever to the large end of the slot
or insertion hole.
1
6
6
1
3
2
The notch shows the locked position.
3101
2
9
4
8
6
7
5
1
3
42
5
6
All mounting levers are locked in position 1.This is appropriate for a
panel thickness of 1.50…2.01 mm (0.060…0.079 in.).

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
