Configure Switch Features Chapter 7
4. To complete the remaining fields, refer to the figure and table that
corresponds to your mode.

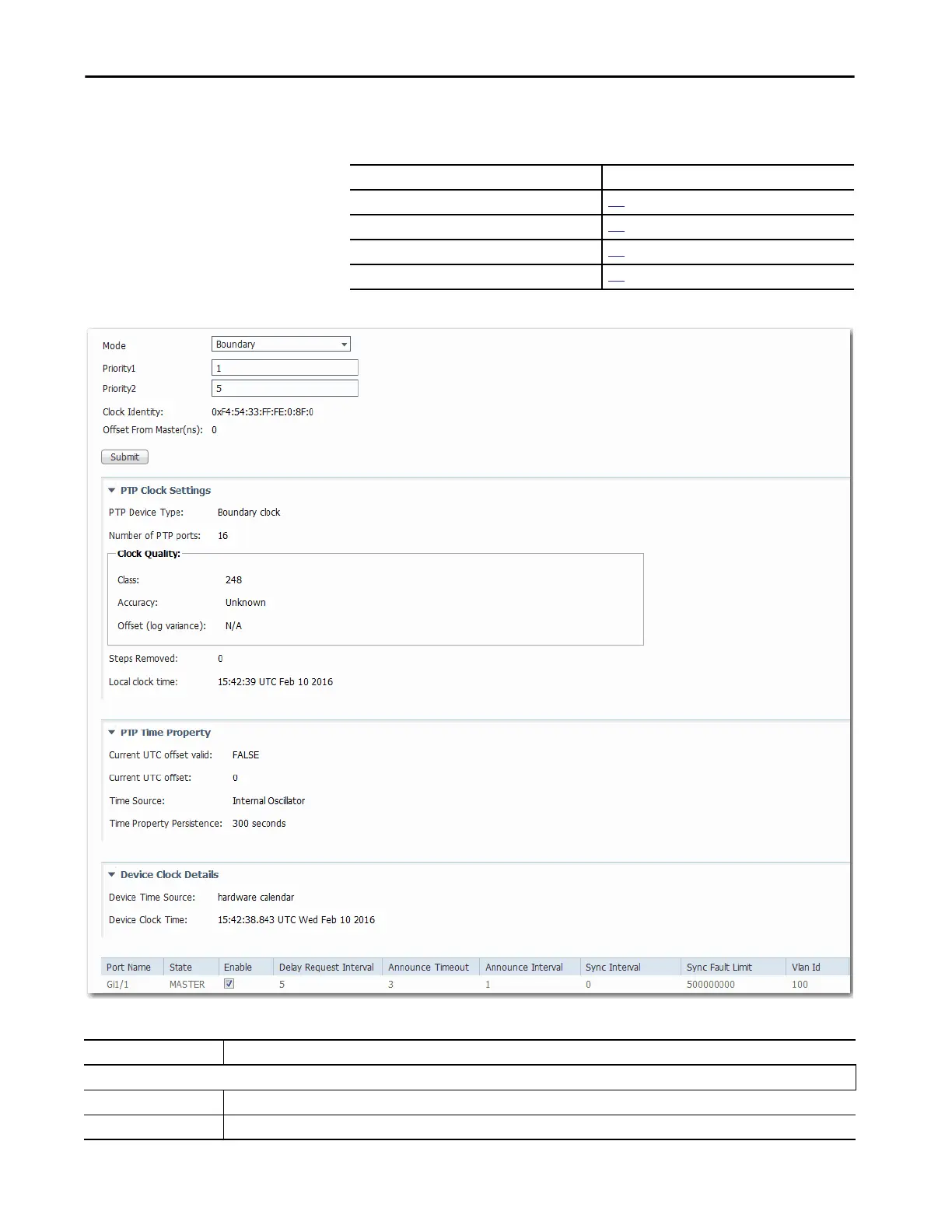

Figure 3 - Boundary Mode
Mode Page
Boundary
197
End to End
199
Forward
201
NTP-PTP Clock
202
Table 33 - Boundary Mode Fields
Field Description
PTP Clock Settings
PTP Device Type Displays the PTP clock type of the switch, as determined by the Mode setting.
Number of PTP ports Displays the number of ports assigned to the PTP clock.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
