5. Initial Programming
237
CPU Configuration
The Nexto CPU configuration is based on the action of structuring the diagnostics area, the retentive
and persistent memory area and hot swap mode, among other parameters.
The user must double-click on the Nexto CPU, in the device tree, as shown on Figure 5-1, and
configure the field as described in the CPU Configuration.

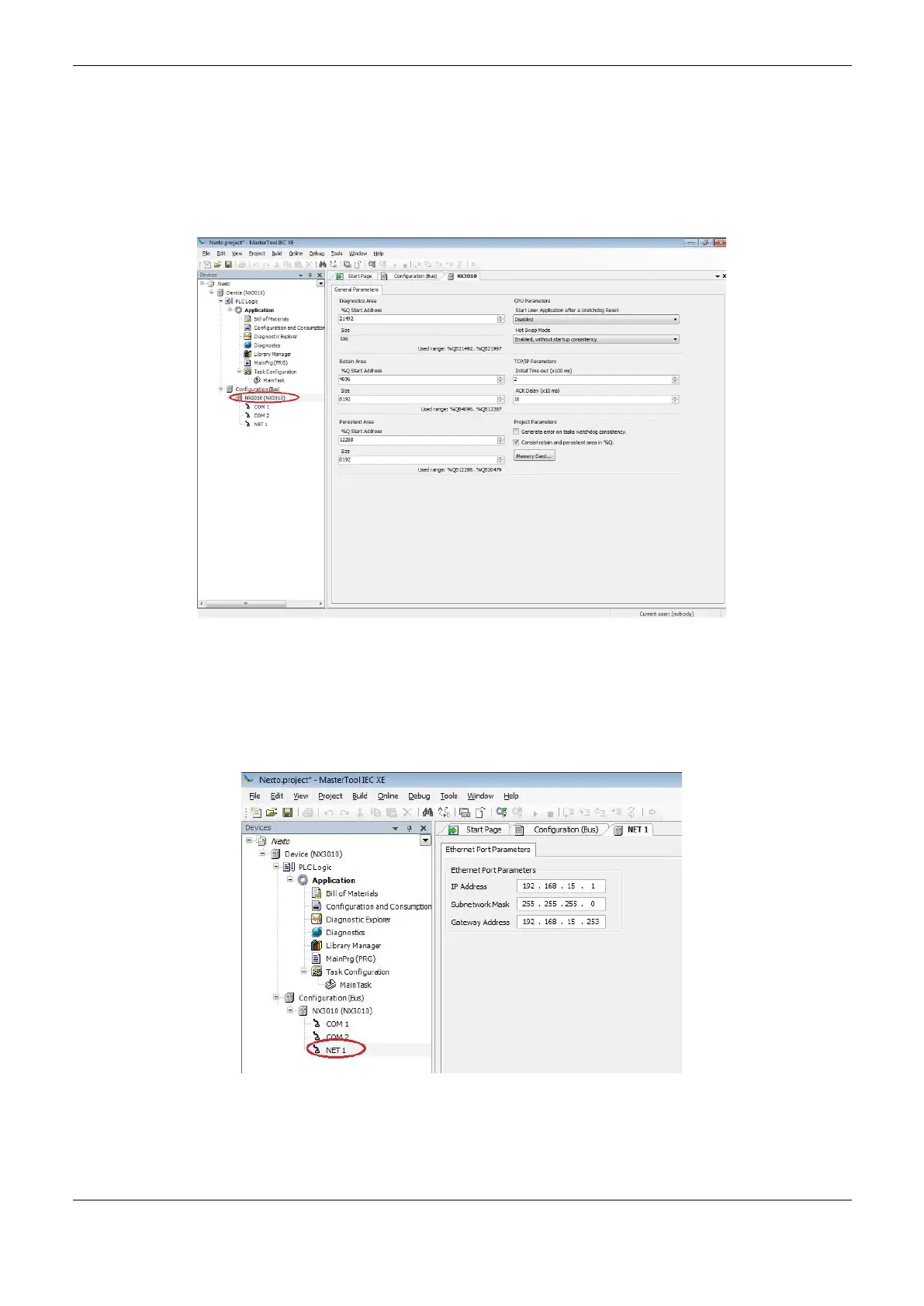

Figure 5-1. CPU Configuration
Besides that, for the communication between the CPU and the MasterTool IEC XE to be possible, the
Ethernet NET 1interface must be configured, as described in the NET 1. Double-clicking on the CPU
NET 1 icon, in the devices tree, a new tab will appear for the configuration of the communication
network where the module is connected.
Figure 5-2. Configuring the CPU Communication Port
