4. Configuration
223
information through Ethernet interfaces NX5000 modules. In Figure 4-117 an example is shown
SNMP manager, in which some values are read.

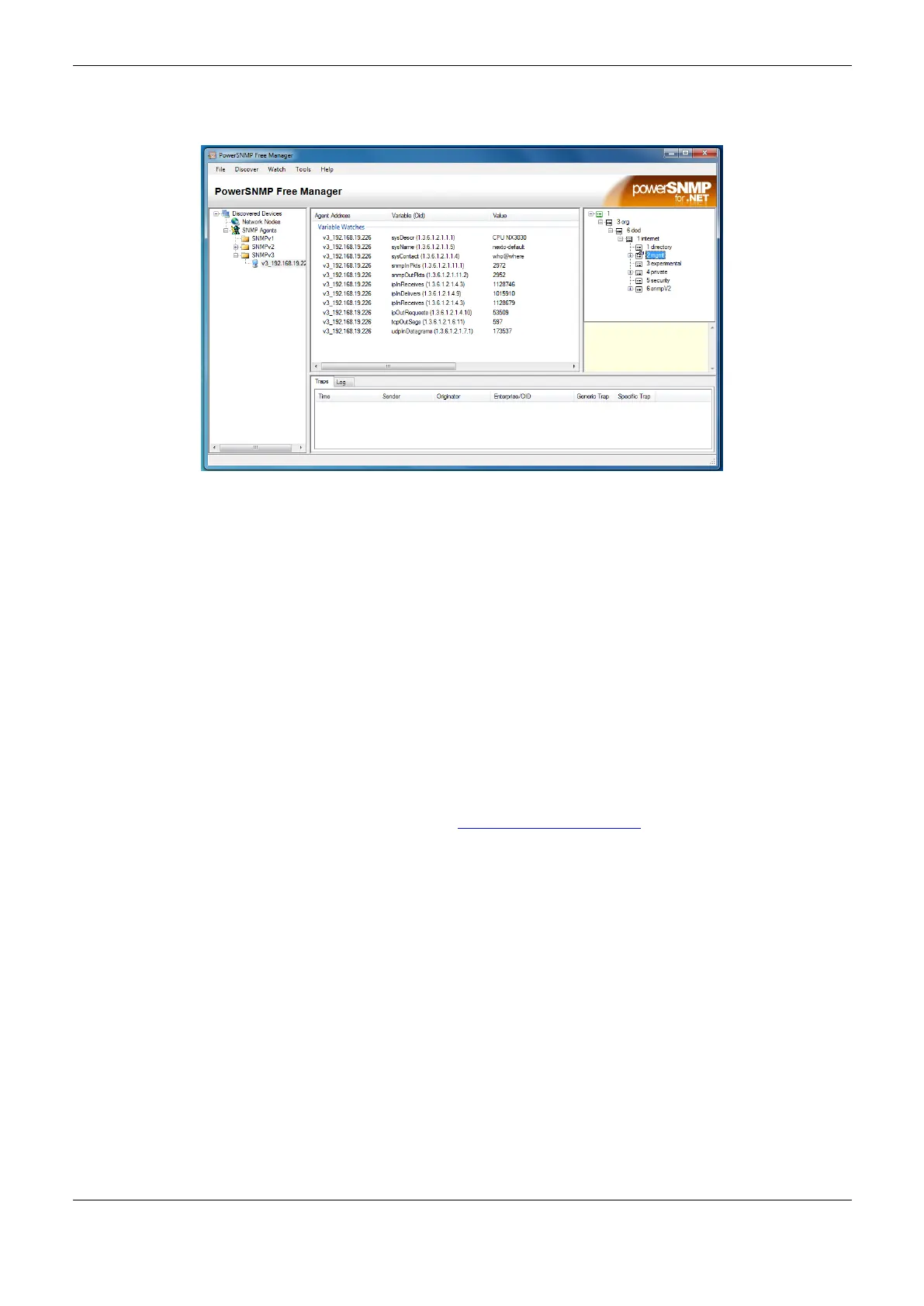

Figure 4-117. SNMP Manager Example
For SNMPv3, in which there is user authentication and password to requests via SNMP protocol, is
provided a standard user described in the User and SNMP Communities section.
If you want to disable the service, change the SNMPv3 user or communities for SNMPv1 / v2c
predefined, you must access the web page of the CPU. For details, see the Configuration section.
Private MIB
In addition to support MIB-II, the Nexto Series CPUs support Private MIB from firmware version
1.4.0.25. For it has been reserved for PEN (Private Enterprise Number) with the unique number
43427 for products Altus. Thus, all private objects of Nexto Series can be accessed through the OID
.1.3.6.1.4.1.43427.1 (iso.org.dod. internet.private.enterprise.Altus SA.Nexto). In this OID three
relevant subdivisions Nexto CPUs, as seen in Figure 4-118.
All private objects are described in MIBs ALTUS-NEXTO-NX3004-MIB, ALTUS-NEXTO-
NX3005-MIB, ALTUS-NEXTO-NX3010-MIB, ALTUS-NEXTO-NX3020-MIB and ALTUS-
NEXTO-NX3030-MIB and can be found in www.altus.com.br/site_en/.
