4. Configuration
45
corresponding field. In this case, IO_EVT_0 should be selected since the other origin sources
(IO_EVT_1 to IO_EVT_7) are not available. In the sequence, the field POUS should be checked if
the right POU is selected, because it will be used by the user to define the actions to be performed
when an external event occurs.

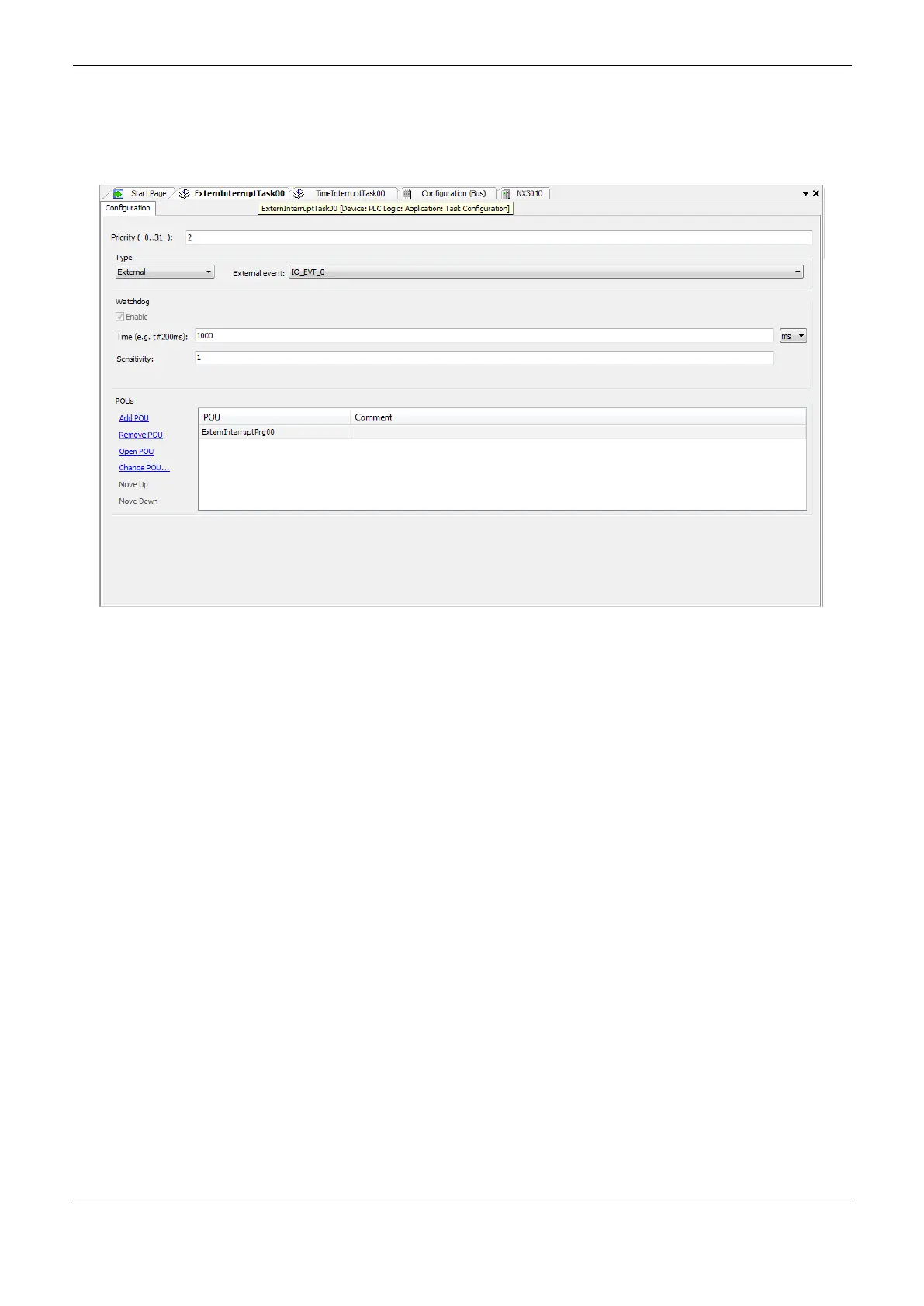

Figure 4-6. ExternInterruptTask00 Configuration Screen
SOE Configuration
The SOE (Sequence of Events) is responsible for the generation of a sequence of digital events.
Through the SOE it is possible to analyze the historic behavior of the system variables mapped in its
monitoring area. The SOE is an exclusive service available for the NX3020 and NX3030 models.
Once the SOE service has been enabled, the CPU starts to behave as a DNP3 server, thus it is
necessary the support to the DNP3 protocol by the client for the use of this resource. The supported
object types as well as the function codes and the qualifiers can be found at DNP3 Device Profile
The SOE service uses the %Q addresses in order to form its base of static data. For it, it has to be set
a continuous area of %Q memory where the user will inform its beginning and size. For redundant
projects the %Q area also has to be redundant so that in the switchover moment the DNP3 server data
base is kept.
The DNP 3 first object address will always be 0, corresponding to %QBxxxx’s bit 0, where xxxx is
the %Q initial address.
Thus, once defined the static data base, the user must copy each digital point which should generate
events within the %Q continuous area. The maximum number of points which can be copied is 8000.
For the events configuration, it is necessary to inform only the size of the events queue. This queue is
persistent and redundant, so the events will not be lost in the switchover moment neither in case of a
power supply failure. In case an overflow occurs in the events queue, the oldest events will be
overwritten. In case in one single cycle are generated more events than what is supported by the
queue, its generation is interrupted and the overflow diagnostic is turned on
(SOE[x].bOverflowStatus). For example, if 100+n bits vary in a 100 events configuration, causing a
dispose of n events.
