5. Initial Programming
245

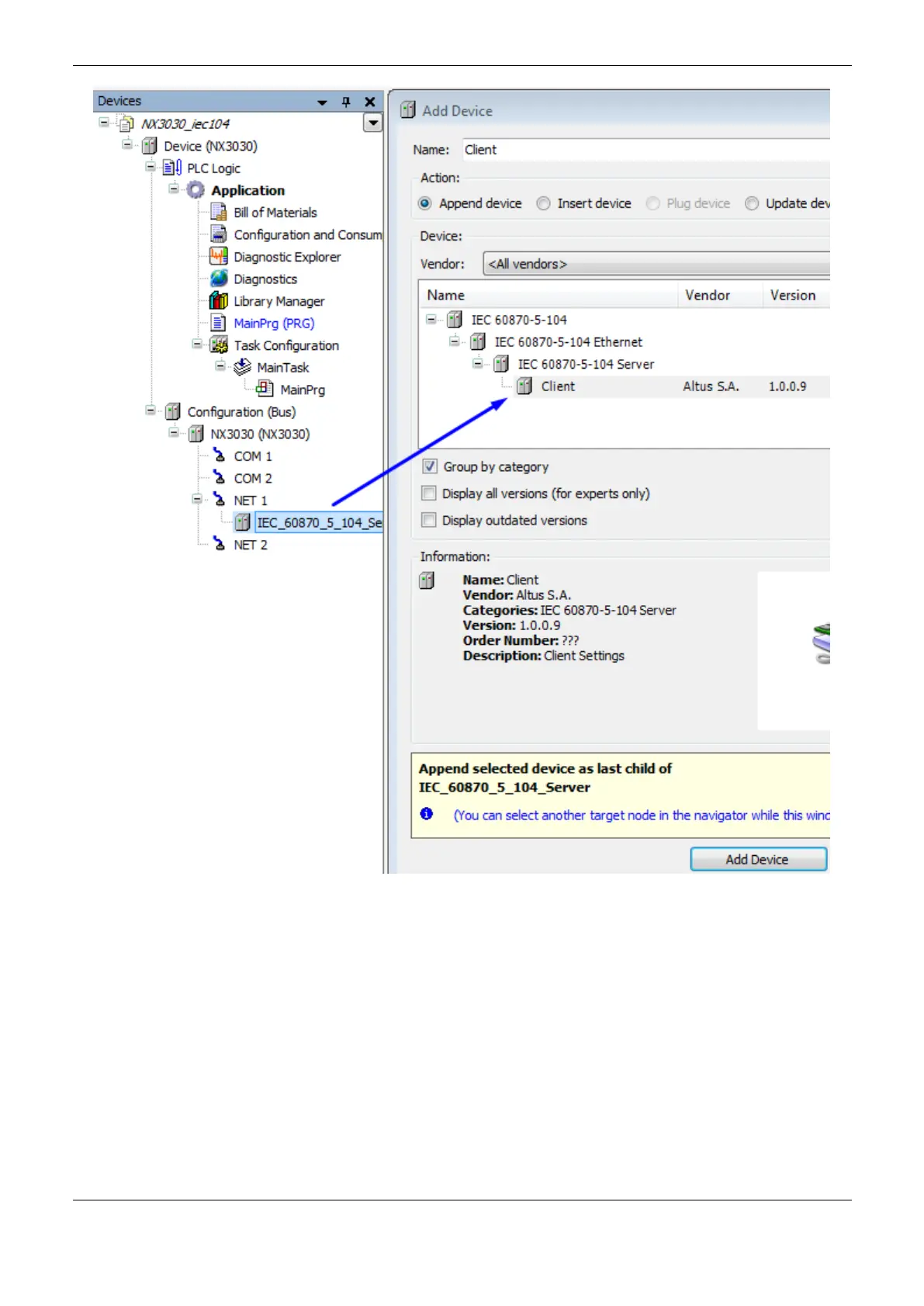

Figure 5-10. Inserting a Client of Server IEC 60870-5-104 Protocol
Finding the Network
As there is the possibility of more CPUs being connected to the network, the user must find all
communication units and select the desired one.
Initially, the option Device must be accessed, in the device tree, double-clicking on it. In the tab
“Communications Settings”, select the Gateway and click on “Scan network”. On the
"Communication Settings" tab select the Gateway or in case there is no Gateway or the user wants to
add a new gateway, click the "Add Gateway", setting your IP in the window that opens. For mapping
devices present in the network, click on "Scan Network ".
Then, the user must wait until the MasterTool IEC XE software searches and show the available
CPUs in the network.
