3. Installation
32

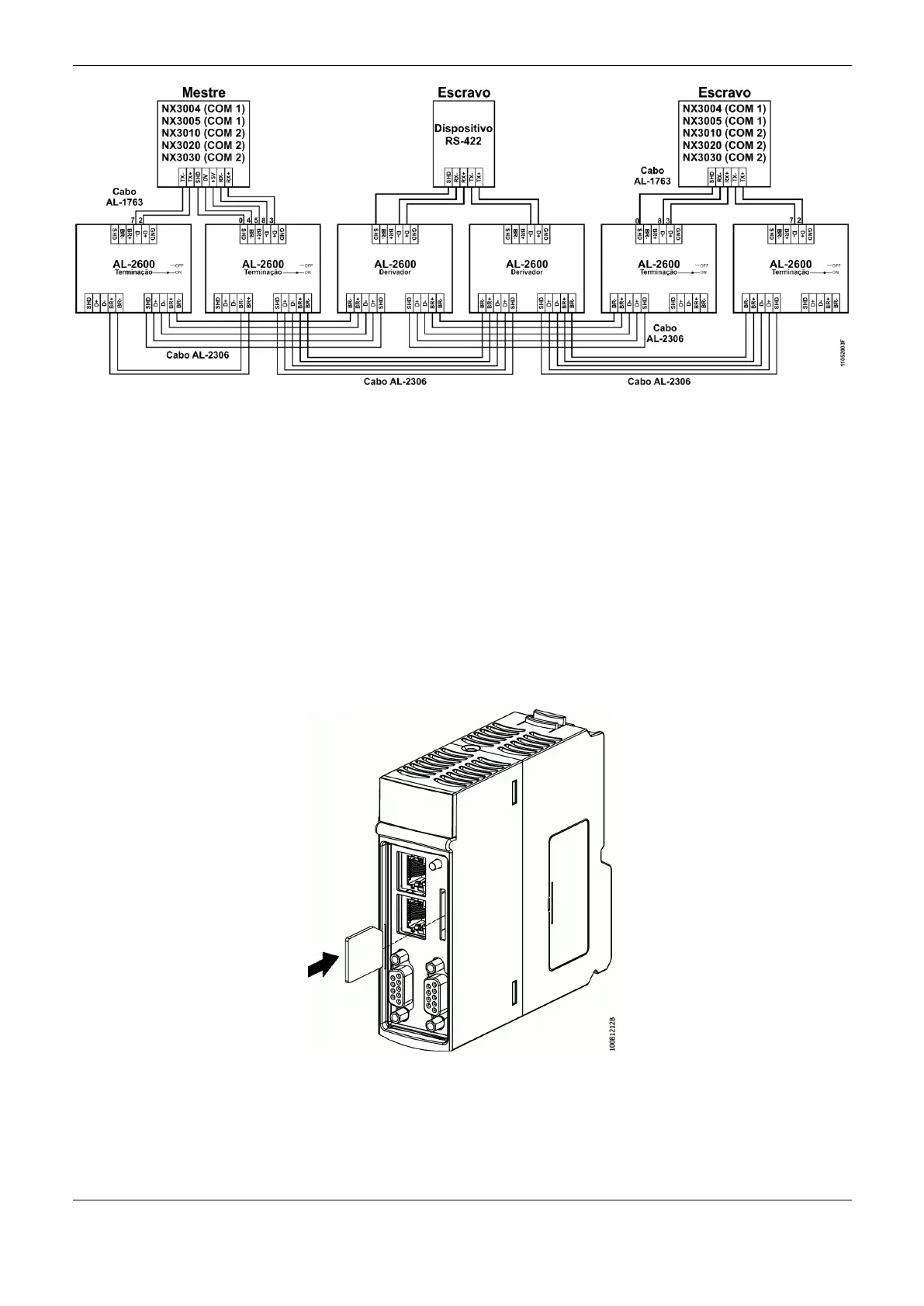

Figure 3-13. RS-422 Network Example
Diagram Note:
The AL-2600 modules which are in the network endings perform the terminators function. In this
case the AL-2600 keys must be configured in PROFIBUS Termination.
Memory Card Installation
This section presents how to insert the memory card into the models NX3010, NX3020 and NX3030
Nexto Series CPUs . For further information see Configuration – Memory Card chapter.
Initially, care must be taken with the correct position the memory card must be inserted. One corner
of it is different from the other three and this one must be used as reference for the card correct
insertion. Therefore, the memory card must be inserted following the depiction on the CPU frontal
part or the way showed on Figure 3-14.
Figure 3-14. Memory Card Insertion in the CPU
When the card is correctly installed, a symbol will appear on the CPU graphic display. For card
secure removing the MS key must be pressed then there is a little delay and the card symbol will
disappear from the graphic display. The card is now ready to be taken off. For that, the card must be
