7. Maintenance
353

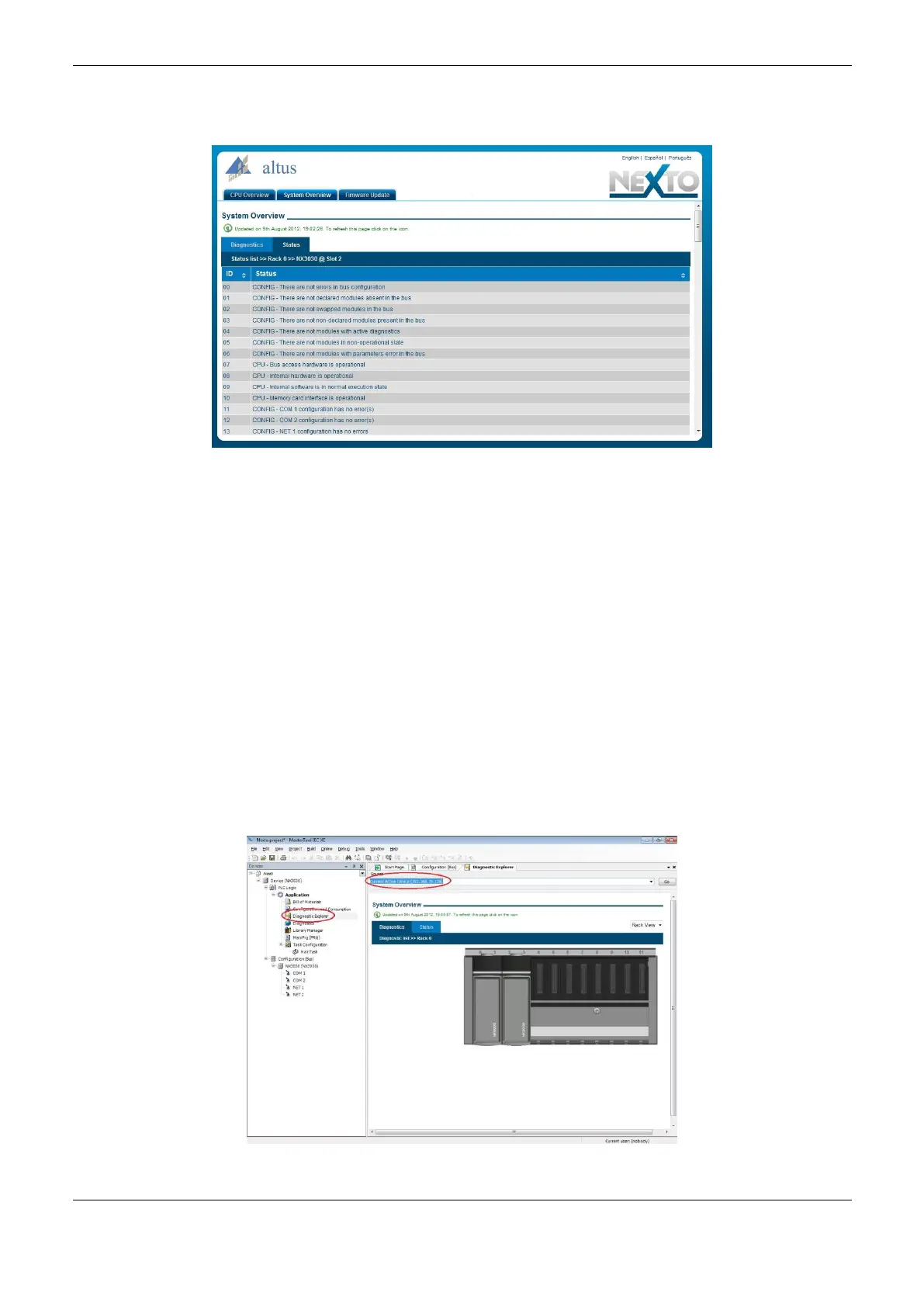

In case the Status tab is selected, the state of all detailed diagnostics is shown on the screen, as
illustrated on Figure 7-6:
Figure 7-6. System Status
Besides, the user can choose to visualize three language options: Portuguese, English and Spanish. It
is just to change the upper right menu for the desired language. The correspondent Firmware
Updating tab is restricted to the user, in other words, it is for Altus internal use only.
Firmware Update tab is restricted to the user, that is, only for internal use of Altus. In cases where the
update is performed remotely (via a radio or satellite connection for example, the minimum speed of
the link must be 128Kbps).
Diagnostic Explorer
The Diagnostic Explorer is the inclusion of the diagnostics via WEB in the MasterTool IEC XE, in
order to make the process faster and direct.
The access to this feature happens in two ways:
Accessing the “Diagnostic Explorer” option in the device tree, placed on the MasterTool IEC XE
screen left, and putting the correct IP in the field indicated on Figure 7-7. Remembering that for
the diagnostics page to be shown, the user must be connected to the CPU (Login chapter)
Figure 7-7. Diagnostic Explorer Screen
