3. Installation
33
pressed against the CPU until a click is heard, then release it and withdraw it from the compartment
as showed on Figure 3-15. At this moment the card will be loose.

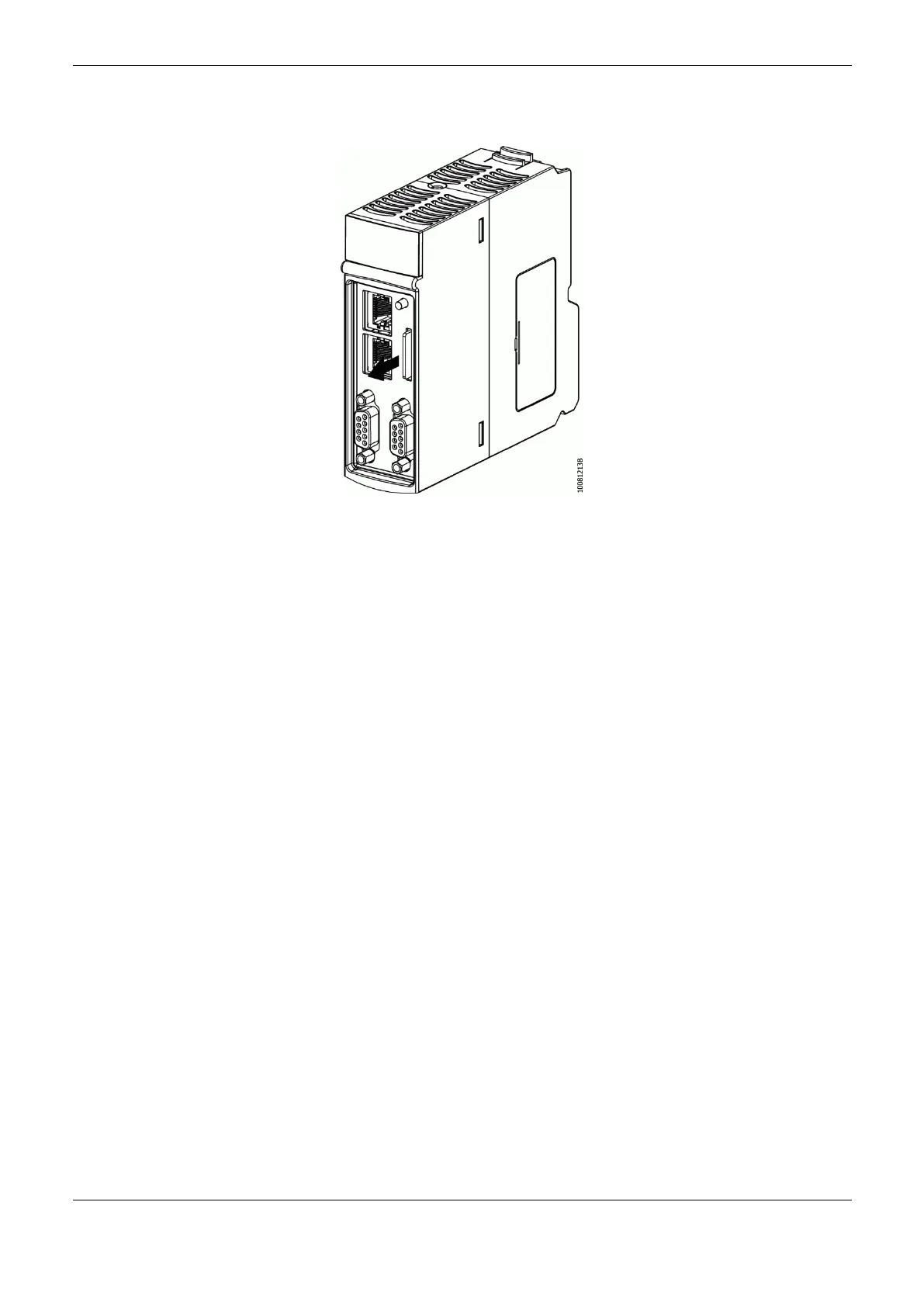

Figure 3-15. Memory Card Withdrawal
Architecture Installation
Module Installation on the Main Backplane Rack
Nexto Series has an exclusive method for connecting and disconnecting modules on the bus which
does not require much effort from the operator and guarantee the connection integrity. For further
information regarding Nexto Series products fixation, please see Nexto Series User Manual –
MU214600.
Programmer Installation
To execute the MasterTool IEC XE development software installation, it is necessary to have the
distribution CD-ROM or download the installation file from the site
http://www.altus.com.br/site_en/. For further information about the step by step to installation,
consult MasterTool IEC XE User Manual MT8500 – MU299609.
