5. Initial Programming
241

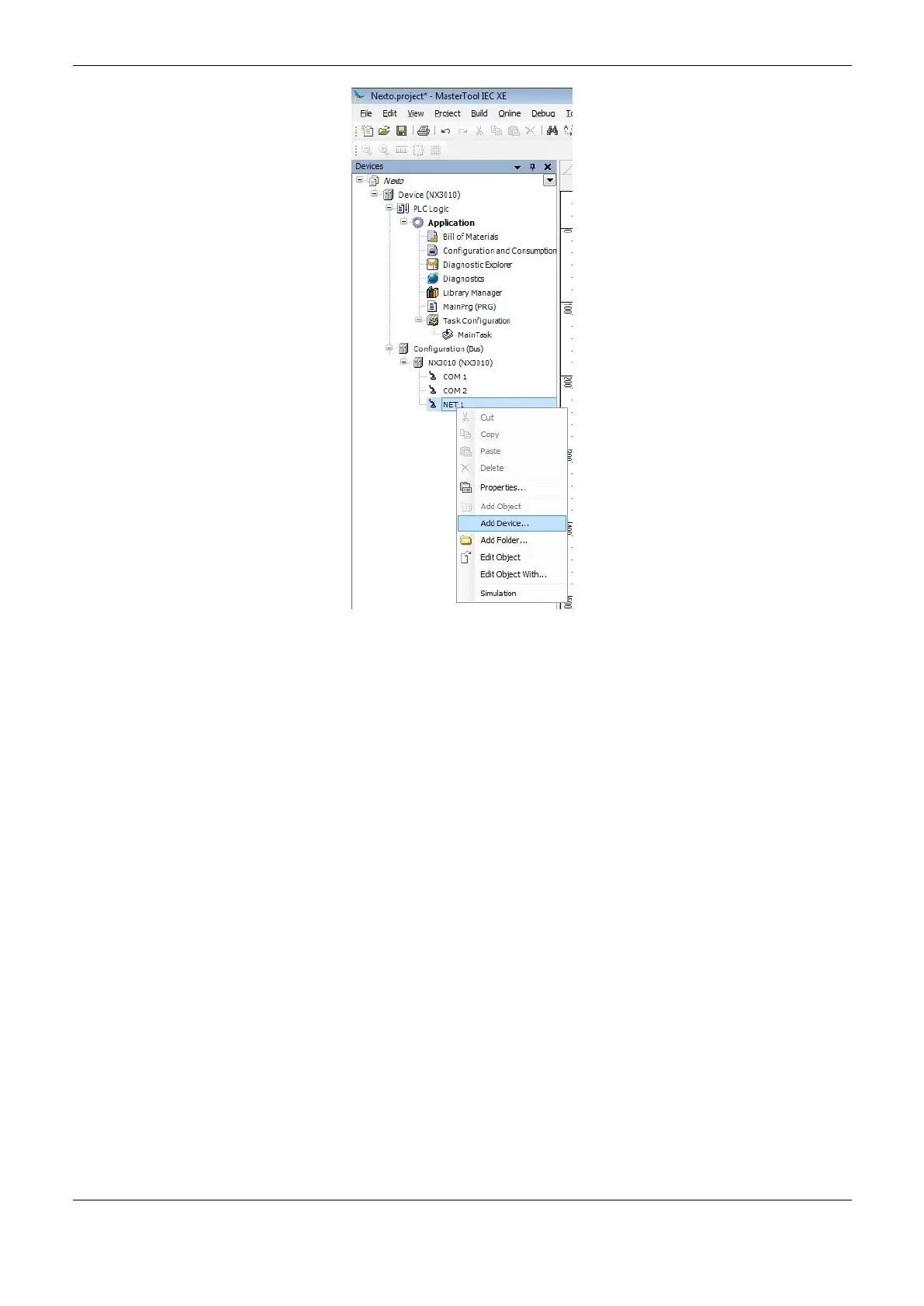

Figure 5-6. Adding the Instance
After that, the available protocols for the user will appear on the screen. Define the protocol
configuration mode selecting “MODBUS Symbol Client”, for symbolic mapping setting or
“MODBUS Client”, for direct addressing (%Q) and click on Add Device, as depicted on Figure 5-7:
