5. Initial Programming
249
CPU. Besides, it allows initial values to be pre-configured, in order to turn possible the CPU
updating on the first cycle.

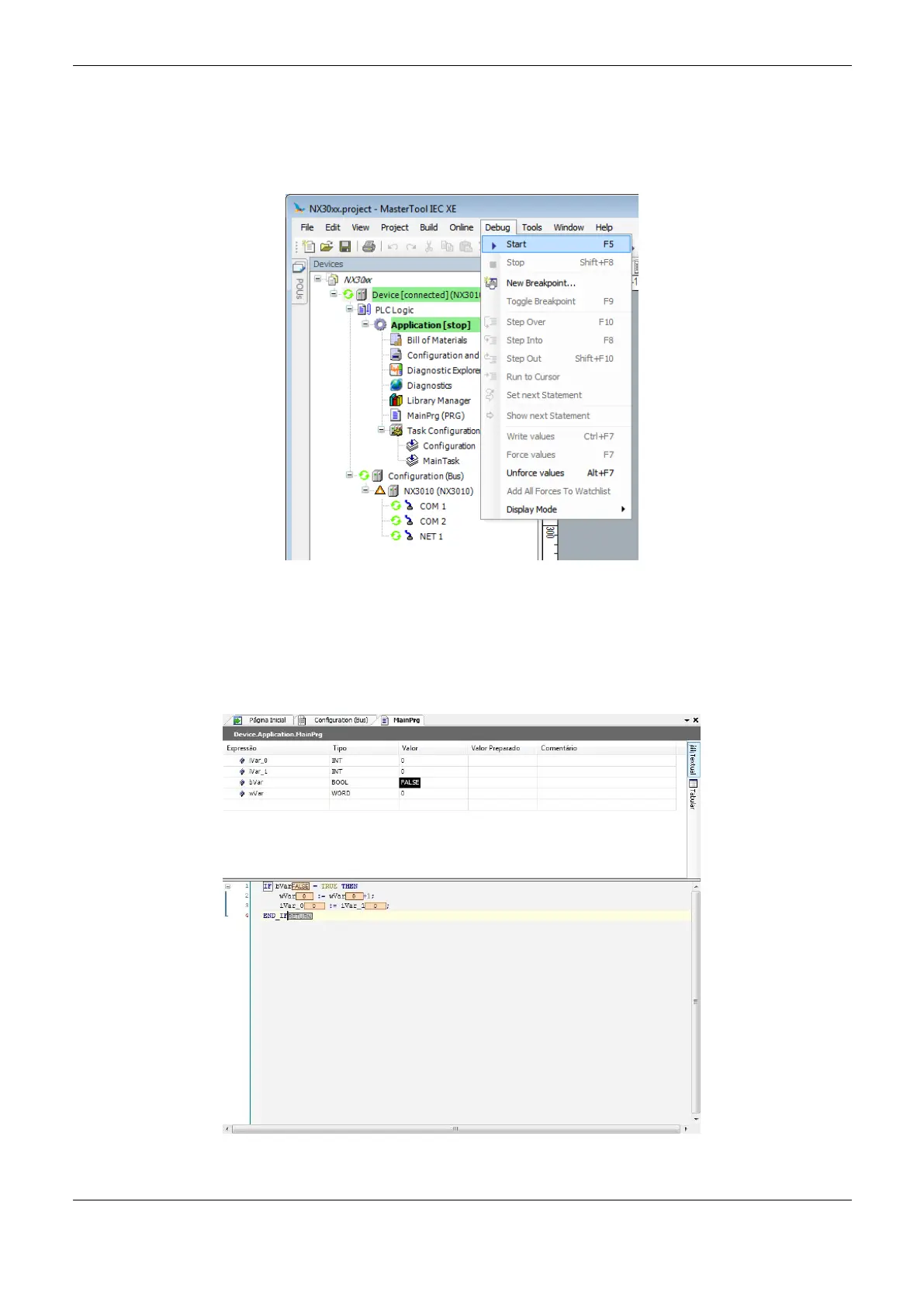

To select such functionality, the option “Start”, from the Debug menu, must be clicked, as shown on
Figure 5-17.
Figure 5-17. Starting the Application
Figure 5-18 shows the application in execution. In case the POU tab is selected, the created variables
are listed on a monitoring window, in which the values can be forced and visualized by the user. In
case the variables are forced through the F7 command on the keyboard, the CPU will indicate this
condition on the graphic display. For further details see Graphic Display chapter.
Figure 5-18. Program Being Executed
