PN 305892901, Rev S
Pre-Installation Requirements
Personnel Technical Level Required for Installation
The operations in this section should be performed only by qualied
service personnel experienced in electrical safety techniques. Never
service the analyzer unless power has been removed from the ana-
lyzer, and the analyzer has been allowed to cool enough to work on.
Always use gloves when working on the analyzer.
Analyzer Requirements
Space Requirements
The 3050-RM Analyzer requires an area 48 cm wide x 13 cm high x 42 cm deep
(19" x 5.25" x 16.5") plus rear clearance for analyzer connections and proper
ventilation (Figures 2-1.1, 2-1.2, and 2-1.3). It should be located as close as pos-
sible to the sample tap.

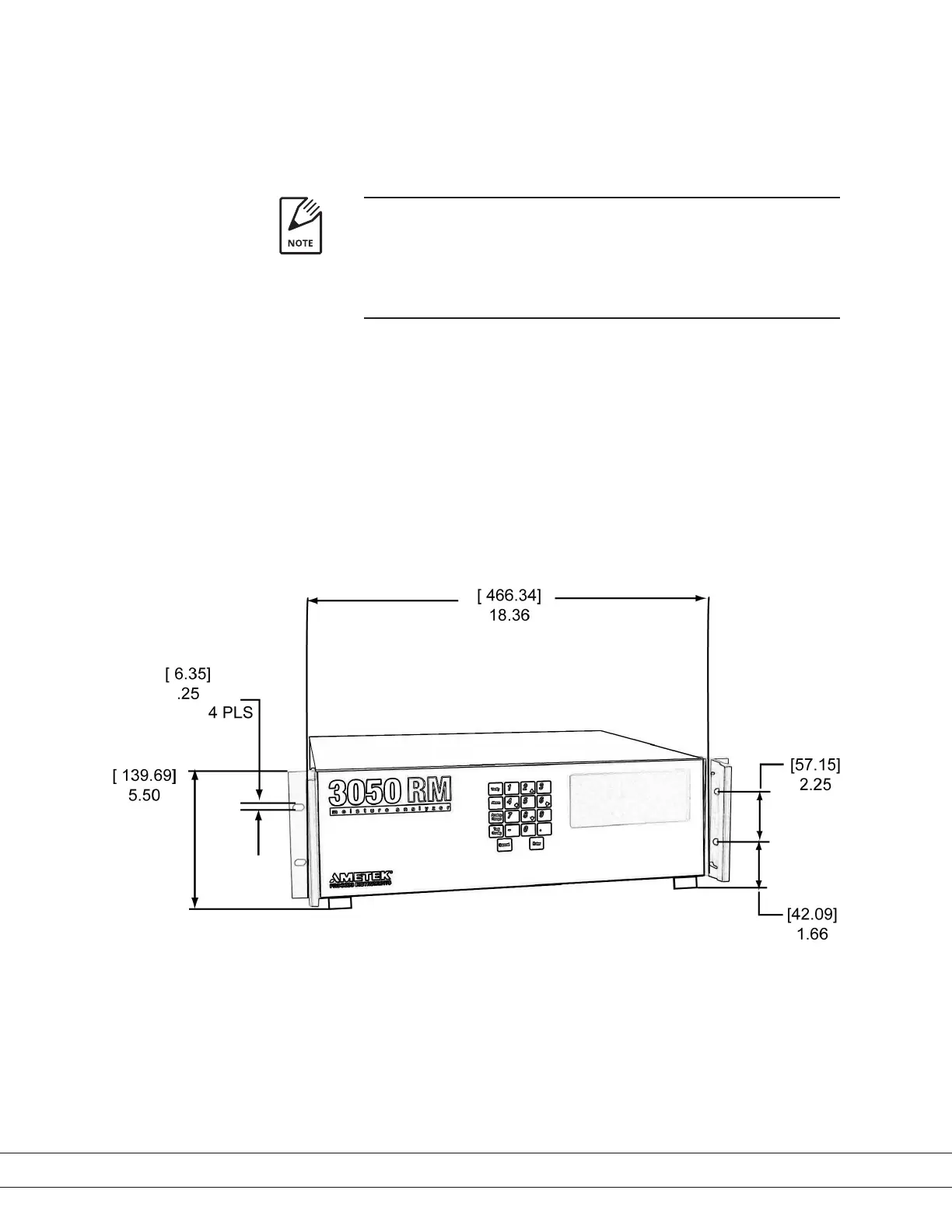

Figures 2-1.1.
3050-RM dimensions front
(top).
2-2 | 3050-RM Moisture Analyzer
