Ametek 3050-RM User Manual

PN 305892901, Rev S
Data Capture
The data capture feature allows the user to collect and save analyzer data dis-
played on the Monitor tab to an Excel compatible le.

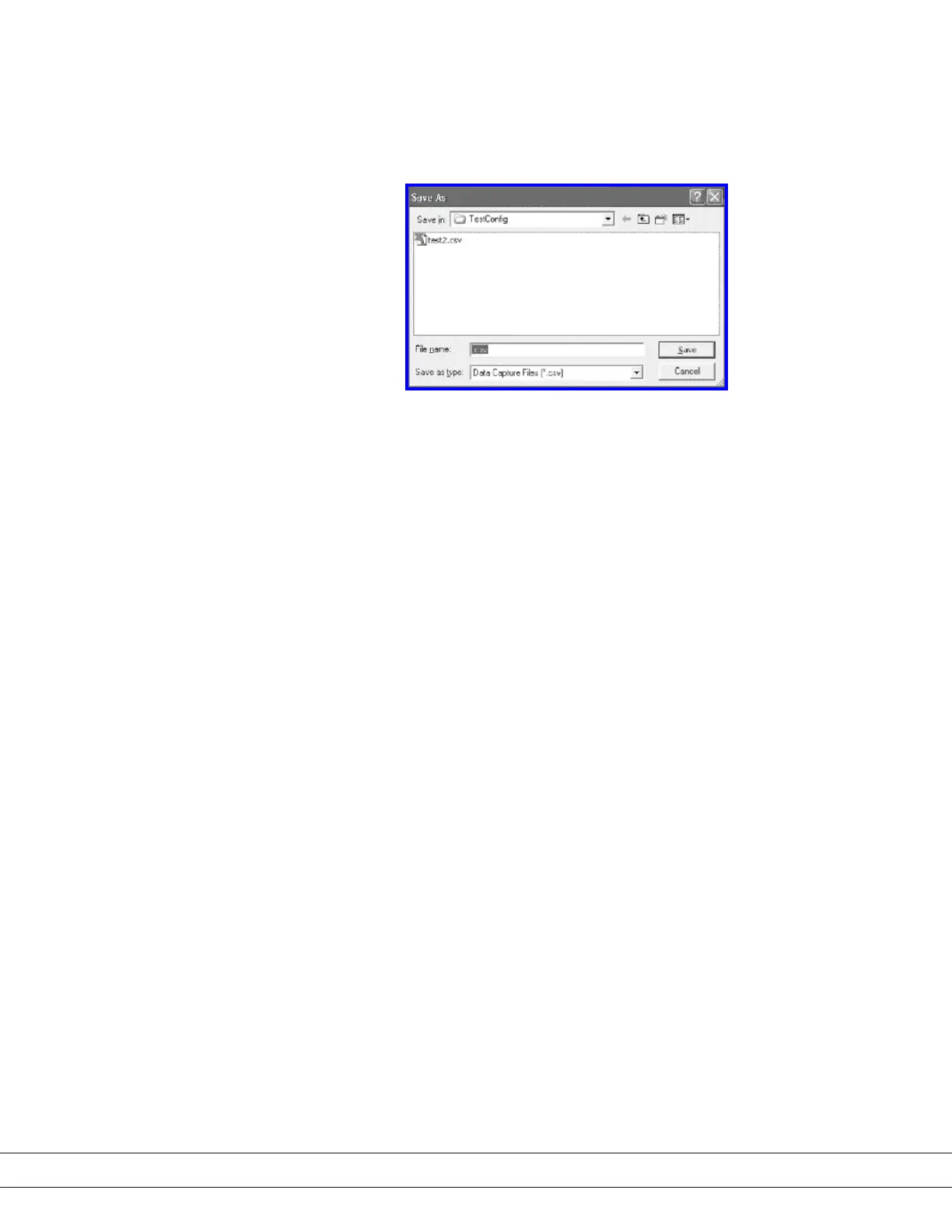

Figure 3-14.
Monitor tab, Save As.
On
Press the On button to start data collection. Specify the le name in the
Save As dialog and press the Save button. The le format is “.csv” which is
Excel compatible. All data displayed on the Monitor tab will be stored in
the specied le.
O
Data collection will terminate and the le will close when the O button is
pressed or another Congurator Software tab is selected.
Rate
The preferred data collection rate is “0.5” minutes and is set as the default.
A record is created every 30 seconds. The collection rate can be increased
to one (1) minute or more.
3-28 | 3050-RM Moisture Analyzer
