PN 305892901, Rev S
1 2 3 4 5 6 7 8 9 10
Meter
+
-
100 to 500
ohms
TB2
DC
Supply
+
-
24 Volts

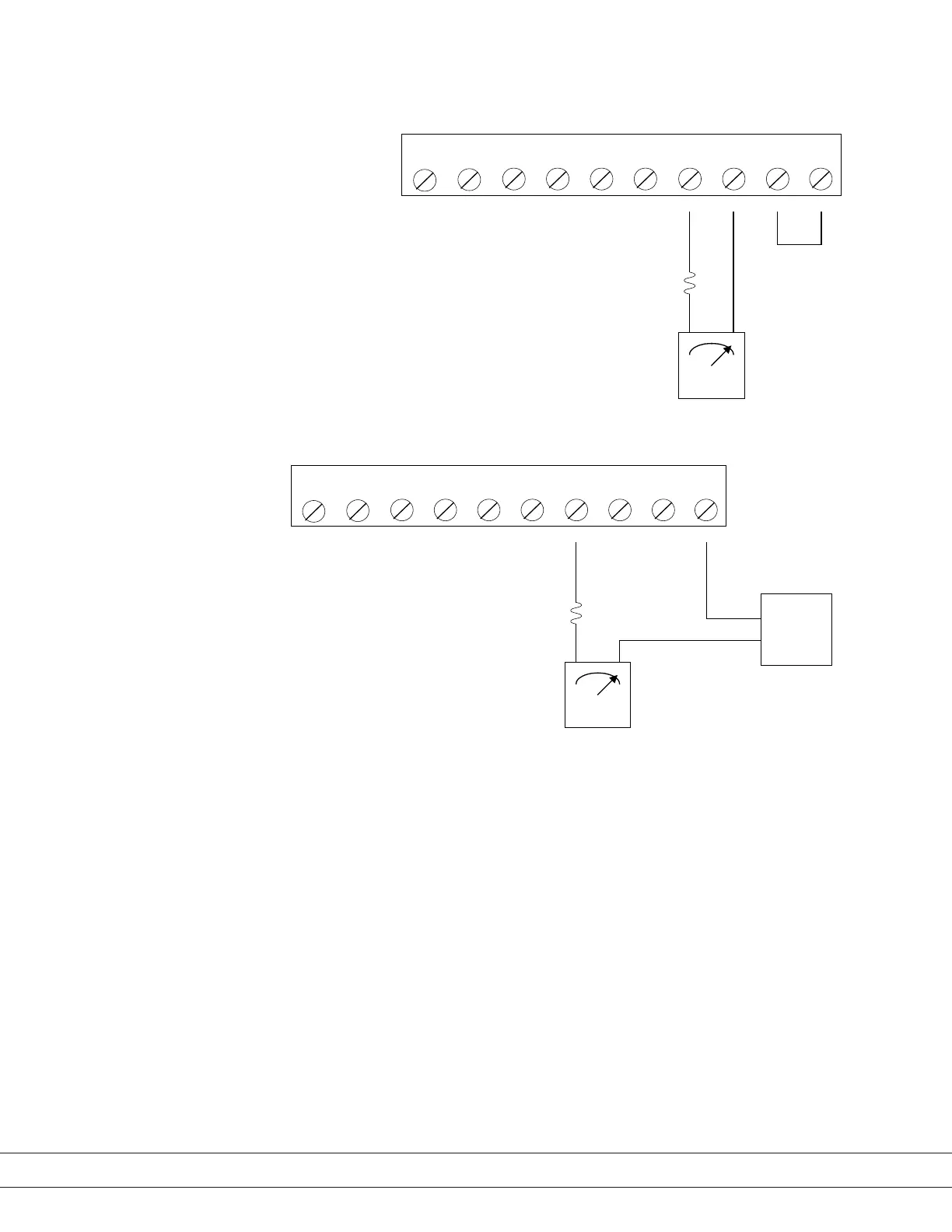

Figure 2-10.2.
Externally powered 4–20 mA
output connections.
1 2 3 4 5 6 7 8 9 10
Meter
+
-
100 to 500
ohms
TB2
Figure 2-10.1.
Self-powered 4–20 mA output
connections.
Signal Connections (4–20 mA)
2-16 | 3050-RM Moisture Analyzer
39
41
Table of Contents
Table of Contents
3
Safety Notes
7
Electrical Safety
8
Grounding
8
Sample Gas
8
Personnel and Equipment Safety Information
9
Special Warnings and Information
11
Equipment Used in Class I, Division 2 Hazardous Locations
11
Dryer Warning
11
Electromagnetic Compatibility (EMC)
12
Warning Labels
13
Environmental Information - WEEE
13
Overview
15
Controller/Communications
16
Contact Closure Signals
17
System Alarm
17
Moisture Concentration Alarm
17
Data Valid
17
Moisture Sensor
18
Quartz Crystal Microbalance (QCM)
18
Gas Measurement Cycle
18
Gas Flow
19
Sample System
19
Sample Flow
20
Solenoid Valves
21
Verifying the Analyzer
22
Changing Gases
22
Dew/Frost Point Measurements
23
Calculation of Dewpoint Values for Hydrocarbon Streams
23
Installation and Start-Up
25
Safety Considerations
25
Pre-Installation Requirements
26
Personnel Technical Level Required for Installation
26
Analyzer Requirements
26
Space Requirements
26
Unpacking and Inspecting the Equipment
28
Tools, Equipment, and Supplies Required for Installation
28
Electrical Requirements
29
Sample Temperature and Pressure Requirements
29
Analyzer Installation
30
User-Supplied Items Interconnect Wiring
30
External Sample Tubing
30
Rear Panel Connections and Interface Board
31
Installing the Dryer
33
Gas Connections
35
Electrical Connections
36
Voltage Selection
36
Power Connection
37
Communication Connections
39
Signal Connections (4-20 Ma)
40
Overview of the Keypad
41
Function Keys
41
Overview of Display
43
Initial Start-Up
44
Dry-Down Period
44
Configuring the 3050-RM Analyzer for Serial Communications
45
Protocol
45
Special Addresses
47
Address $F0
47
Defined Commands (Master to Slave)
47
Echo (A)
48
Bad Command (B)
48
Acknowledge (C)
48
Read Data (F)
48
Start Verify (G)
48
Write Data (H)
49
Write Cell EEPROM (L)
49
Quit (Q)
49
Defined Responses (Slave to Master)
50
Simple Acknowledge
50
Acknowledge with Data
50
Failure
50
Variables Table
51
Controller/Interface
53
Working from the Built-In User Interface
53
Verify Key
55
Alarm Key
56
Range Key
57
Config Key
58
Display
58
Communication
59
Sample Gas
60
Clock
62
Verify Schedule
63
Production Codes
64
Moisture Unit
65
System Test
66
Working from the AMETEK 3050 UHP Configurator Software
67
UHP Configurator Software Installation
67
Configuring the 3050-RM
68
Working from the General Tab
68
Saving Analyzer Configuration Settings
70
Working from the Device Communication Tab
71
Configuring Multiple Analyzers
71
Changing Communication Parameters
71
Saving Your Settings
72
Working from the Setup Tab
73
Working from the Schedule Tab
75
Saving Your Settings
77
Working from the Status Tab
78
Working from the Monitor Tab
79
Data Capture
80
Maintenance and Troubleshooting
81
Aftermarket Excellence and Long-Term Commitment to Safety and Quality
82
3050-RM Analyzer Replacement Parts
83
Servicing the 3050-RM Analyzer
84
Sensor
86
Removing the Sensor
86
Installing the Sensor
86
Mass Flow Meter
87
Installing the Mass Flow Meter
87
Moisture Generator
89
Removing the Moisture Generator
89
Installing the New Moisture Generator
92
Solenoid Valves
92
Installing the New Solenoid
94
Dryers/Contaminant Traps
95
Removing the Dryer
95
Installing the New Dryer/Trap
96
Maintenance of the Electronics Module
97
Tools Required
97
Procedure for Removing the Electronics Module
97
Analog Interface Board
99
Removing the Analog Interface Board
99
Replacing the Analog Interface Board
99
MCU Board
100
Removing the MCU Board
100
Replacing the MCU Board
100
Reinstalling the Electronics Module
101
Board Connections
102
User Interface Board
102
Alarm Messages
103
Specifications
107
Compatible Gases
107
3050-RM Moisture Analyzer Specifications
107
3050-RM Moisture Analyzer Approvals and Certifications
108
Appendix A - Quick Reference Card
109
