Overview of Display
The default display has four (4) lines (Figure 2-13):
Line 1 Sample concentration
Line 2 Status message
Line 3 Alarm message
Line 4 Alarm value
There is also a series of dots after the “Status” message that “beat” to indicate
the analyzer is functioning.

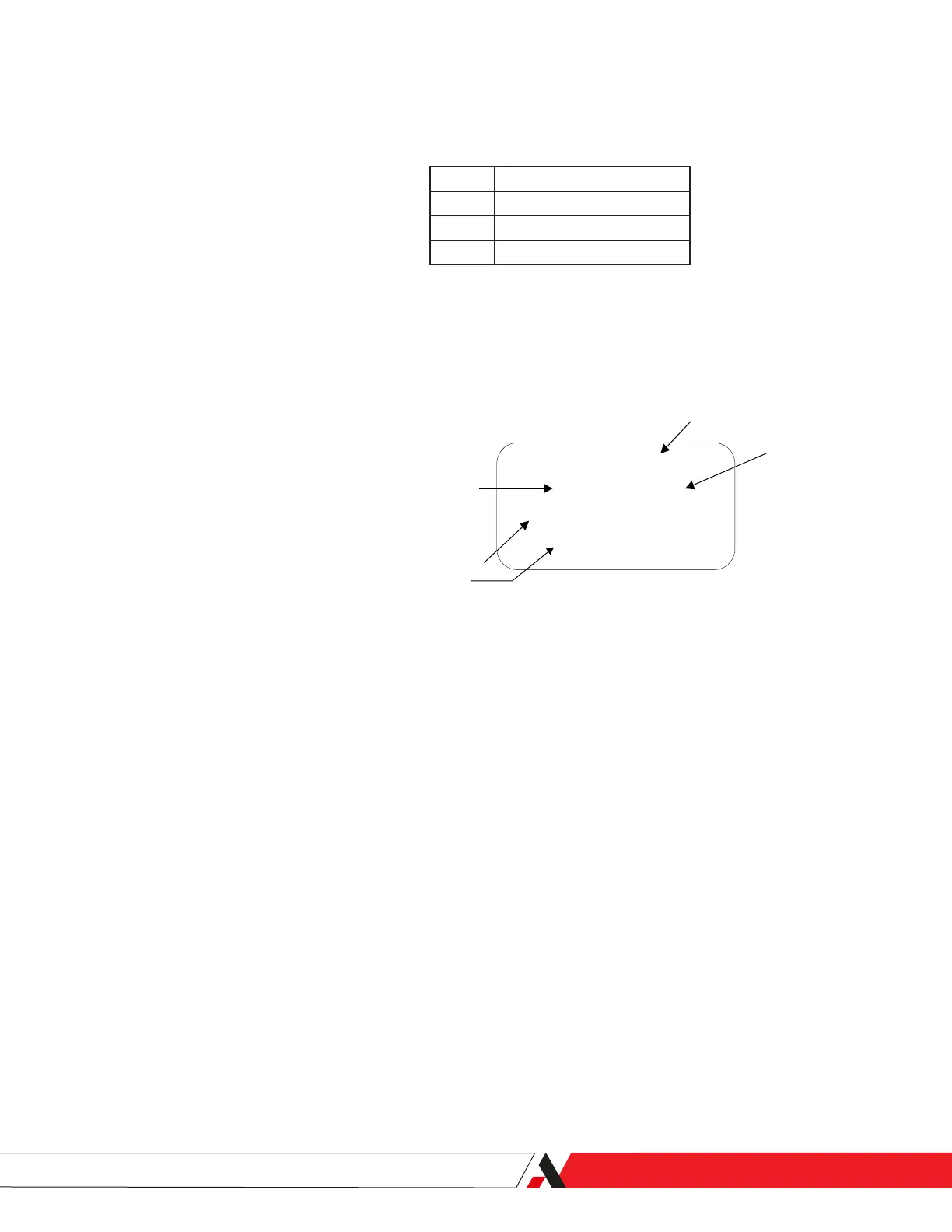

Figure 2-13.
Default normal operation
display.
70 ppm
Sampling . . .
High Concentration
70 ppm Limit
Line 1 - Concentration
Line 2 - Status message
Line 3 - Alarm message
Line 4 - Alarm value
Heartbeat
