4. Remove the dryer mounting screws that holds the dryer in place and set
them aside.
5. Working with one dryer at a time to minimize the time that the device is
exposed to room air, remove the rst dryer from its packaging.
6. Loosen the 1/8-inch VCR ttings.
7. Using two (2) of the dryer mounting screws, attach the dryer in the posi-
tion (Figure 2-4.2).

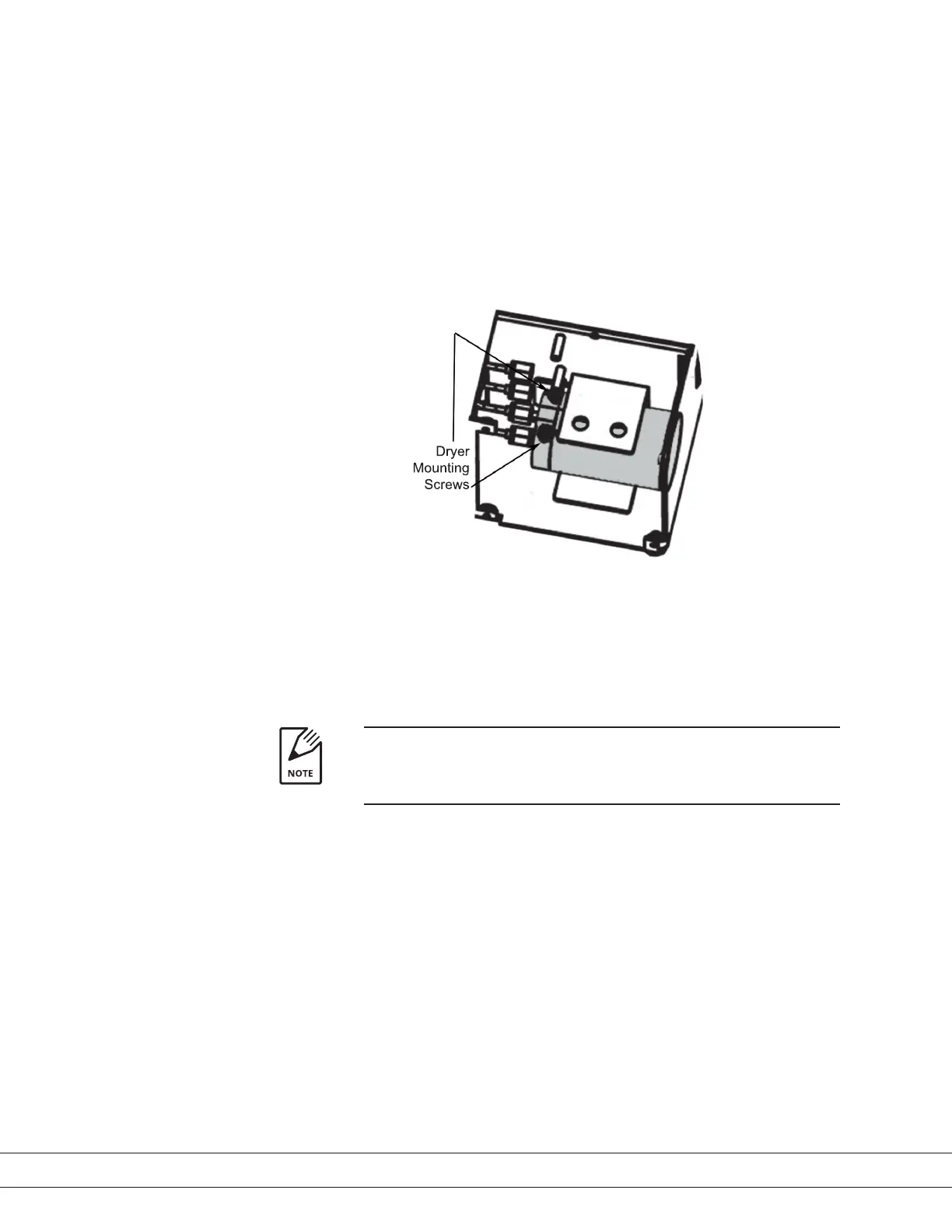

Figure 2-4.2.
Inside dryer compartment.
8. Working quickly, install a new 1/8-inch VCR gasket in both of the ttings,
and tighten the two (2) VCR nuts over the ttings until they are nger tight.
9. Tighten the nut an additional 1/8 turn.
If you have a two-dryer or dryer/trap version of the analyzer, install
the second dryer or trap in the upper position now following the same
instructions.
10. Replace the Dryer Compartment Cover.
11. The production codes for the dryers supplied with the analyzers have been
entered at the factory, so there is no need to enter them during an initial
startup of the analyzer. For all subsequent replacement/installations of
replacement dryer, you will need to enter a production code for the refer-
ence dryer (see details in Chapter 2).
