Ammann Rammax 1515-M - Fuel Circuit; Fuel Circuit Components; Fuel Shut-Off Valve

108
Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010

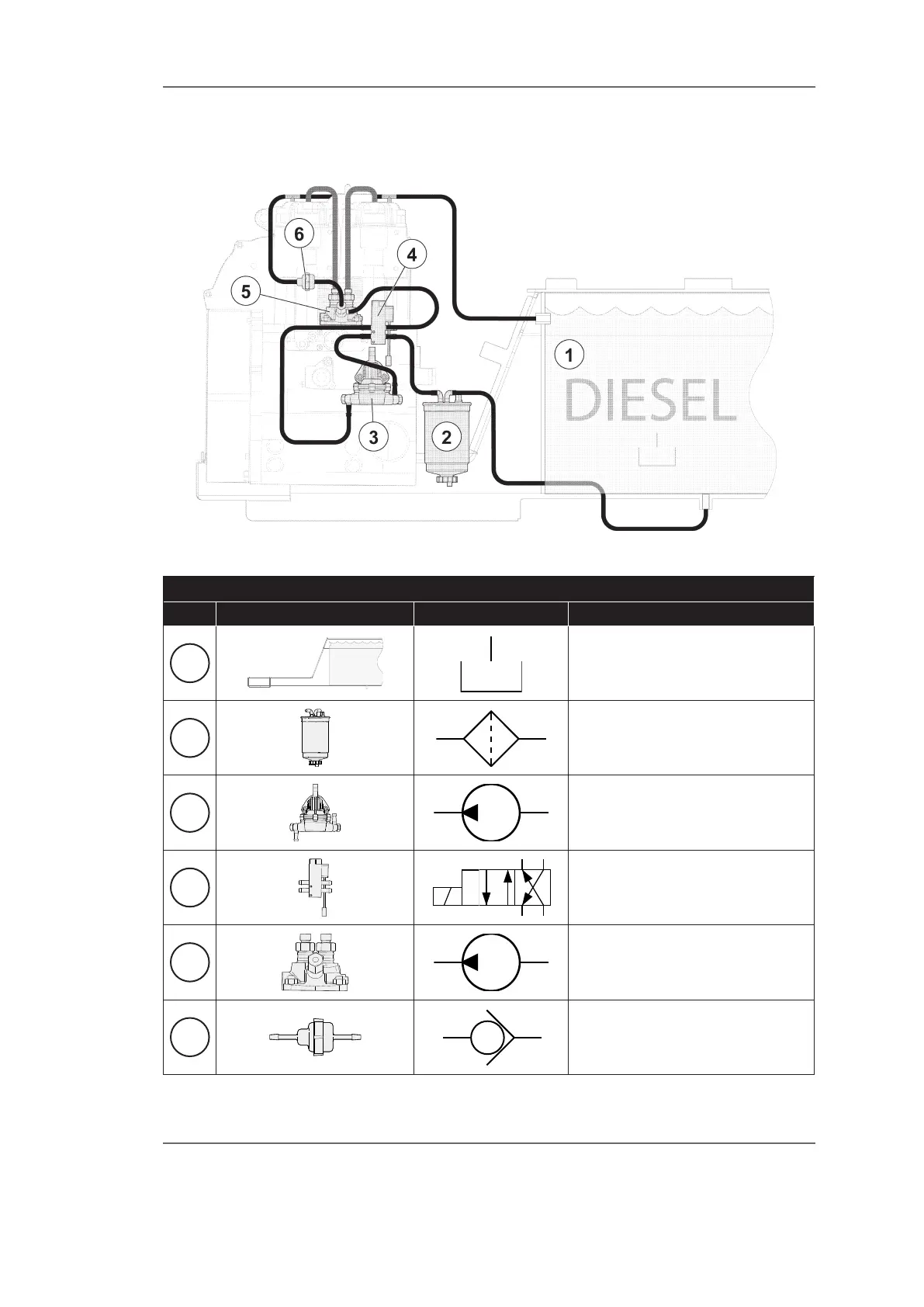

Fig. 1: Fuel circuit layout
Key
Pos Figure Symbol Name
1
Fuel tank
2
Fuel lter
3
Fuel supply pump
4
Fuel shut-off valve
5
Injection pump
6
Non-return valve
Fuel circuit
Fuel circuit components
