ENVIRONMENT
Leaking hydraulic oils pollute the soil!
Working with hydraulic oils endangers the ground. Hydraulic oil
that leaks from from defective machines, complete plants, tanks
or through carelessness can pollute the ground and the ground
water.
Therefore:
Never spill any hydraulic oil when relling.
Collect any hydraulic oil that escapes or spills and dispose
of it in compliance with the national regulations!
Prevent any escaped hydraulic oil from seeping into the
ground.
►
►
►

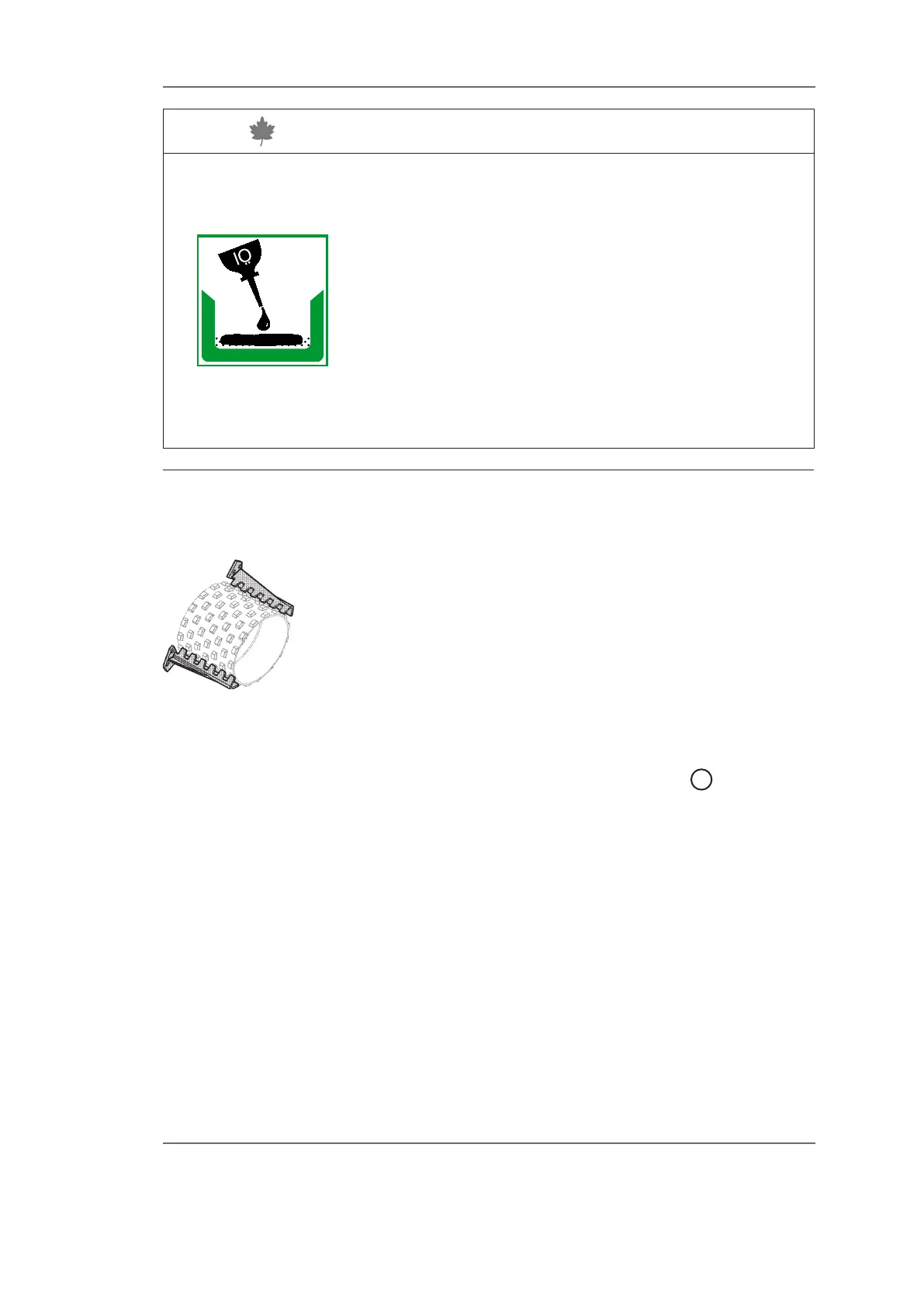

Resetting the scraper / changing
The scraper cleans the drums. It prevents a layer of earth from
building up on the drums. This happens quite often when wor-
king on loamey ground. If the earth builds up a layer then
the area inbetween the drums and the complete frame it will
become blocked. The machine will then lose its power and
traction.
Always inspect the scraper before starting work and the gap
between the drums and the scraper. This gap must be at least
10 mm in all positions.
Reset the scraper after:
Undoing all three screws in the scraper
AS
and slide the
scraper towards the drums. Note the stipulated gap.
If the scraper is already up against the stops and the gap
between it and the drums is more than 30 mm then the
scraper is worn and it must be changed.
Retighten the screws.


