Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010

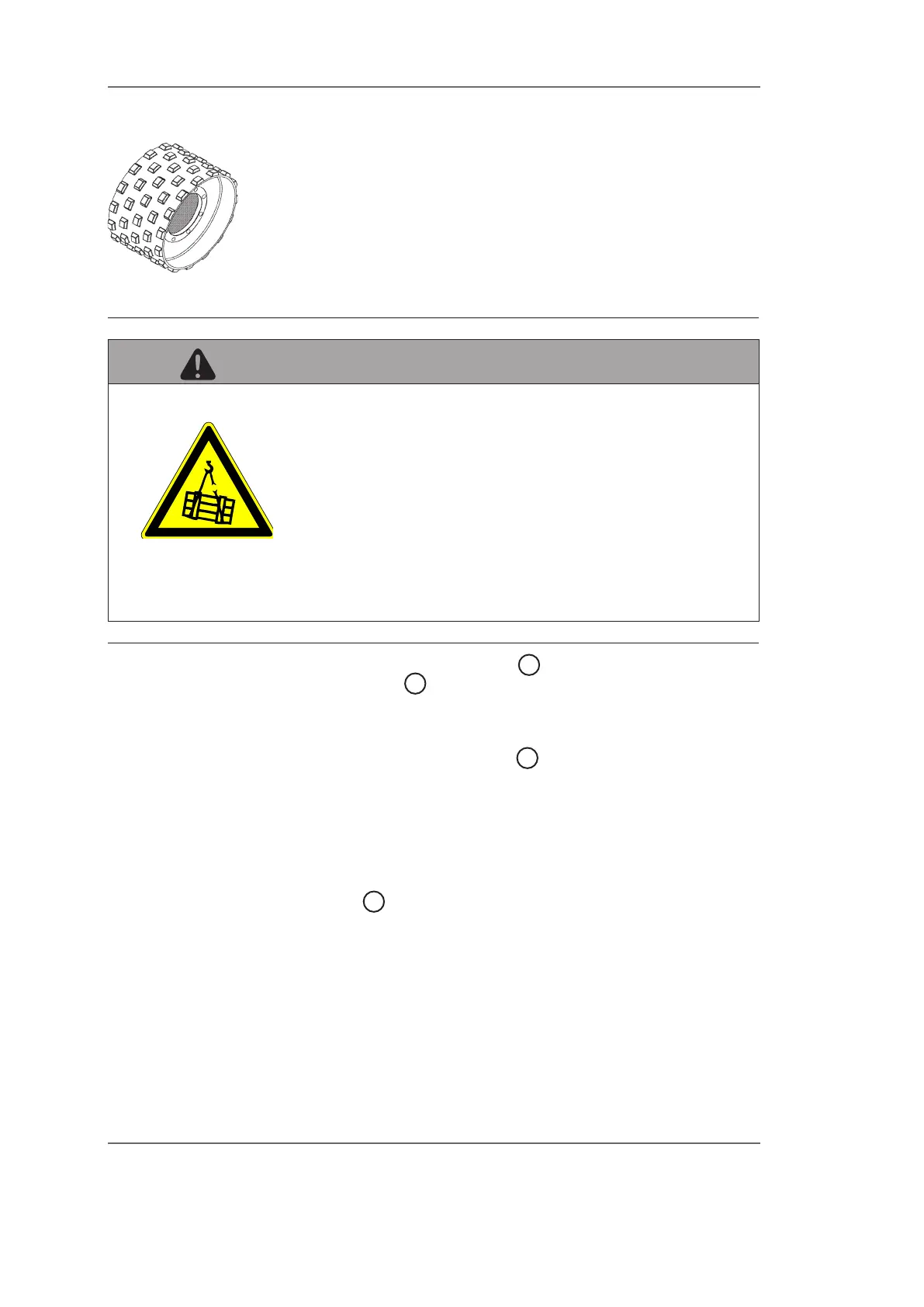

Exchanging drums
The drums become worn due to machine use. The traction
and the climbing capability decrease if the prole height is re-
duced. The 'knead' effect is also reduced during compacting.
The drums must be changed when the prole height reaches
5 mm. Always change all four drums.
Use suitable lifting equipment to hoist the machine by the
transport hoop so that it is high enough for the work to be
carried out easily.
WARNING!
Danger from falling objects!
Suspended loads can fall down! Objects on suspended loads
can work lose and fall off!
Therefore:
Never walk beneath a suspended load.
Never stand beneath a suspended load.
Never leave lose objects on the machine.
►
►
►
Dismantle the scraper
A
.
Undo
BS
the drum securing screws.Do not unscrew the
securing screws completely!
Lower the machine until the drums are approx. 1 cm
above the ground.
Unscrew the securing
BS
bolts.
Use a soft-headed hammer to tap the drum jacket until
the drums come loose from the drive ange.
The drums are now dismantled.
Clean the drum ange surface.
Fit the new drums on the drive ange.
Use a torque wrench tp tighten up the securing screws
BS
in a cross pattern to 150 Nm / 110 ft-lb.
The drums have been changed and the machine is ready
for use again.
