Manual controls

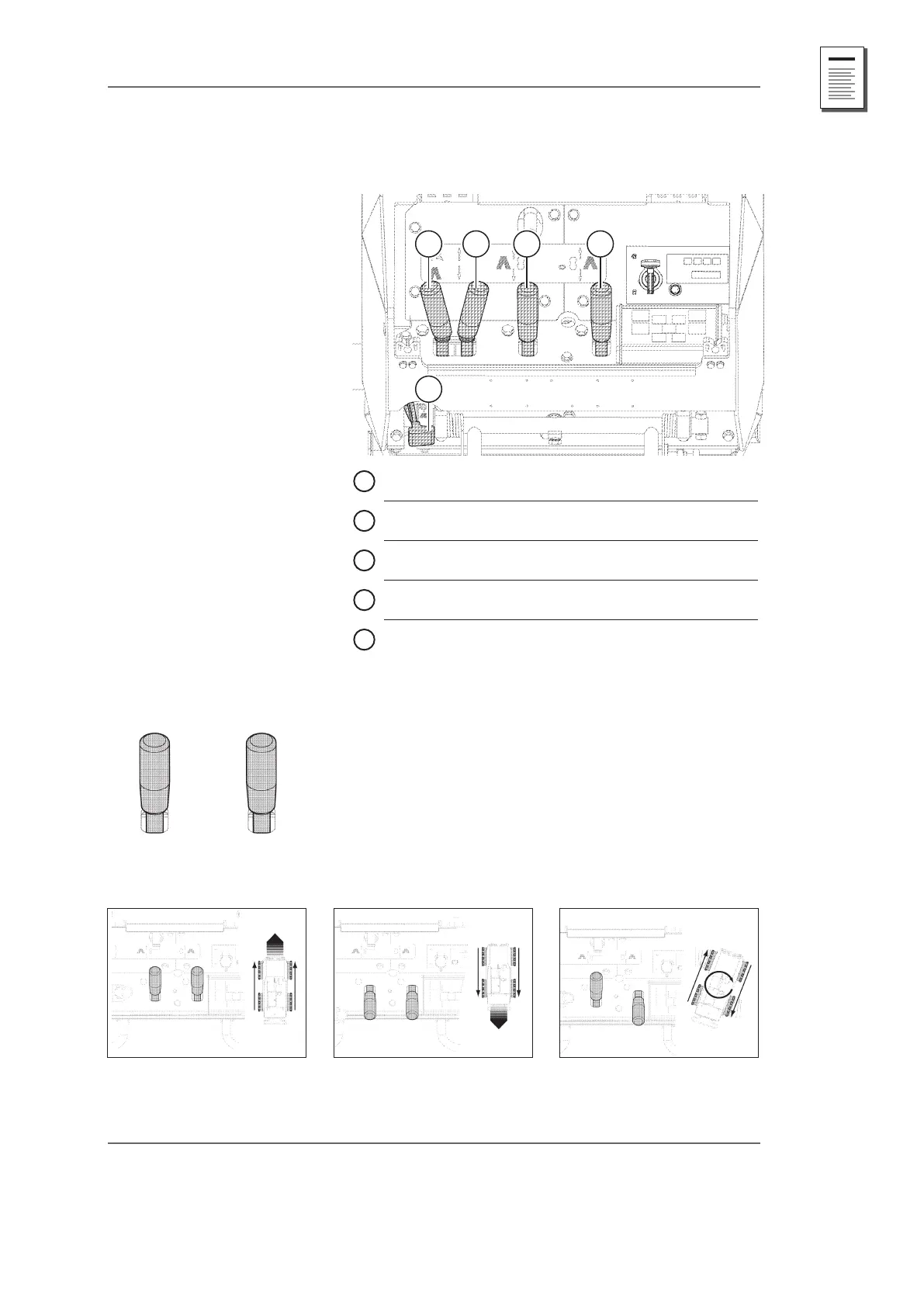

Controller controls view
1 2 3 4
5
1 Fast traverse lever
2 Vibration lever
3 Left drum control lever
4 Right drum control lever
5 Gas lever
Control lever
This lever is used to control the drum advance direction. The
left control lever controls the left pair of drums and the right
control lever controls the right pair. The drums cannot be con-
trolled separately.
The machine will advance if you move both levers forwards.
The machine will move in reverse if you move both levers
backwards. The machine will turn on the spot if you move the
lever diagonally.
Fig SE2 Traverse backwards Fig. SE3 Turn to the rightFig. SE1 Traverse forward
