45
Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010

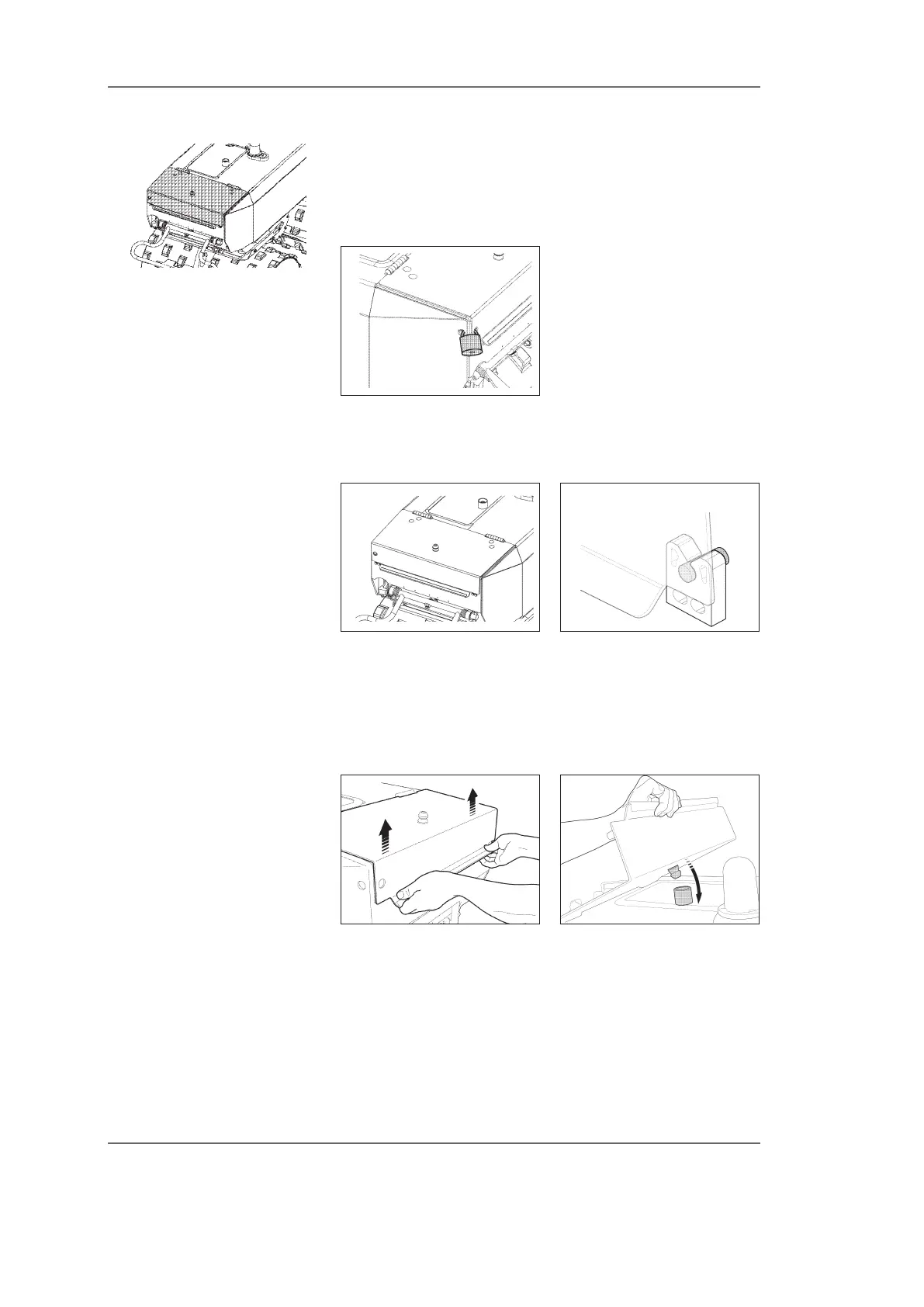

Cockpit cover
The cockpit cover seals off the operating unit and protects the
display and operating controls from dirt and humidity. There
are holes on the left of the cockpit cover and the control unit.
A commercial padlock can be tted here to lock the cockpit
cover in place (Fig. OZ1).
Fig. OZ1 Closing the cockpit cover
Two rubber brackets and two bolts (counter pieces) hold the
cockpit cover closed (Fig. OZ2-OZ3).
Fig. OZ2 Cockpit cover Fig. OZ3 Bracket
Opening the cockpit cover:
Pull the cockpit cover slightly backwards and upwards
(Fig. OZ4).
Now fold the cockpit cover downwards and press it down
until it latches into the locking device (Fig. OZ5).
Fig. OZ4 Opening the cockpit cover Abb. OZ5
The cockpit cover is now open.
openings and access
