50
Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010
Cable remote control connection socket
Plug the remote cable controller's plug into this socket. The
cable has been connected up in the factory. Machine version
Rammax 1515-M does not have a connection socket.
Ignition lock
The ignition lock has three positions:
Ignition switched off: Switches the machine off. The igniti-
on key can only be withdrawn in this position.
Stand-by : Switches the machine over to stand-by.
Sart engine: Activates the starter. The engine starts.

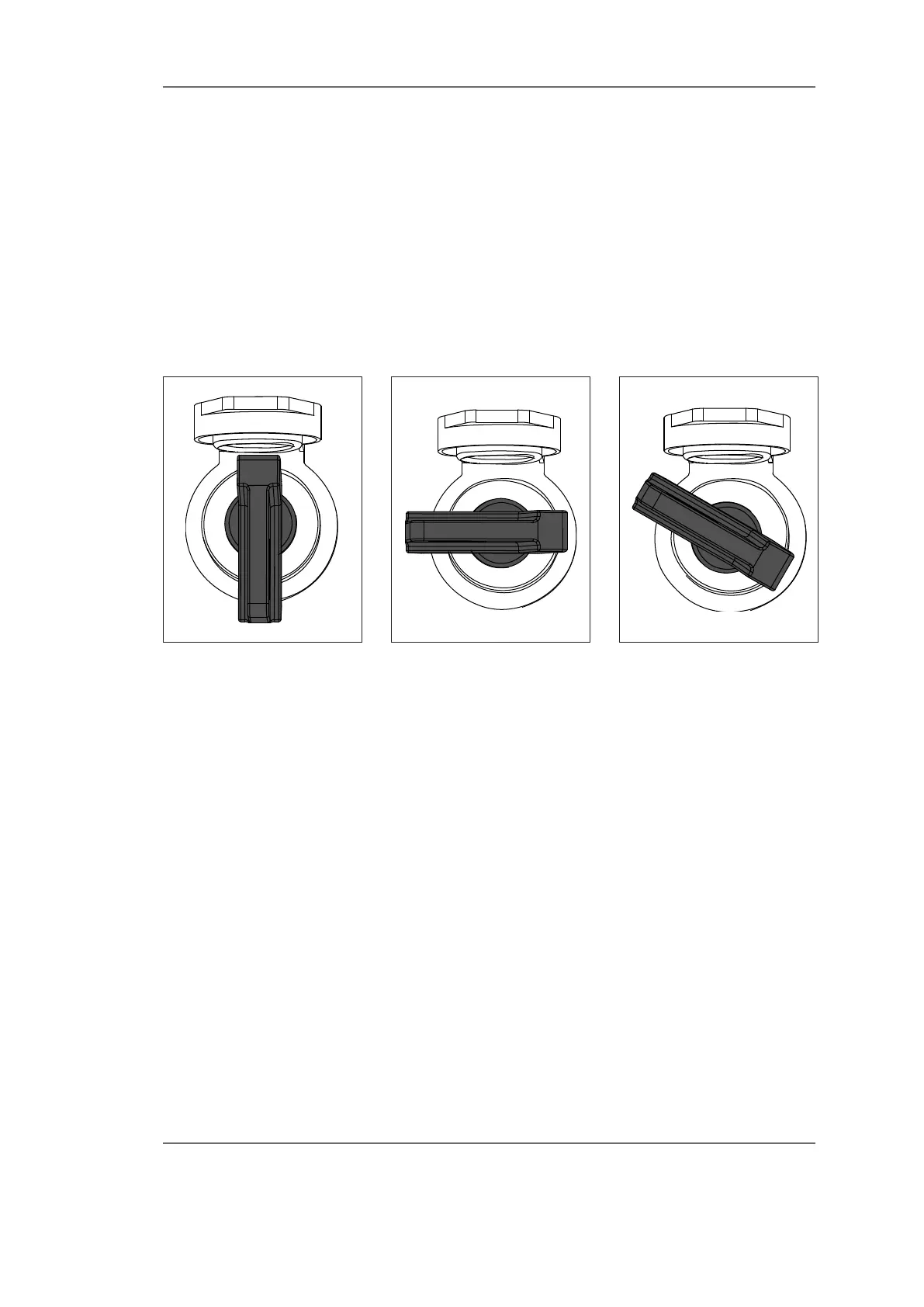

Fig. 1 Ignition switched off Fig. 2 Stand-by Fig 3 Start engine
1)
2)
3)
display controls / cockpit
