36
Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010

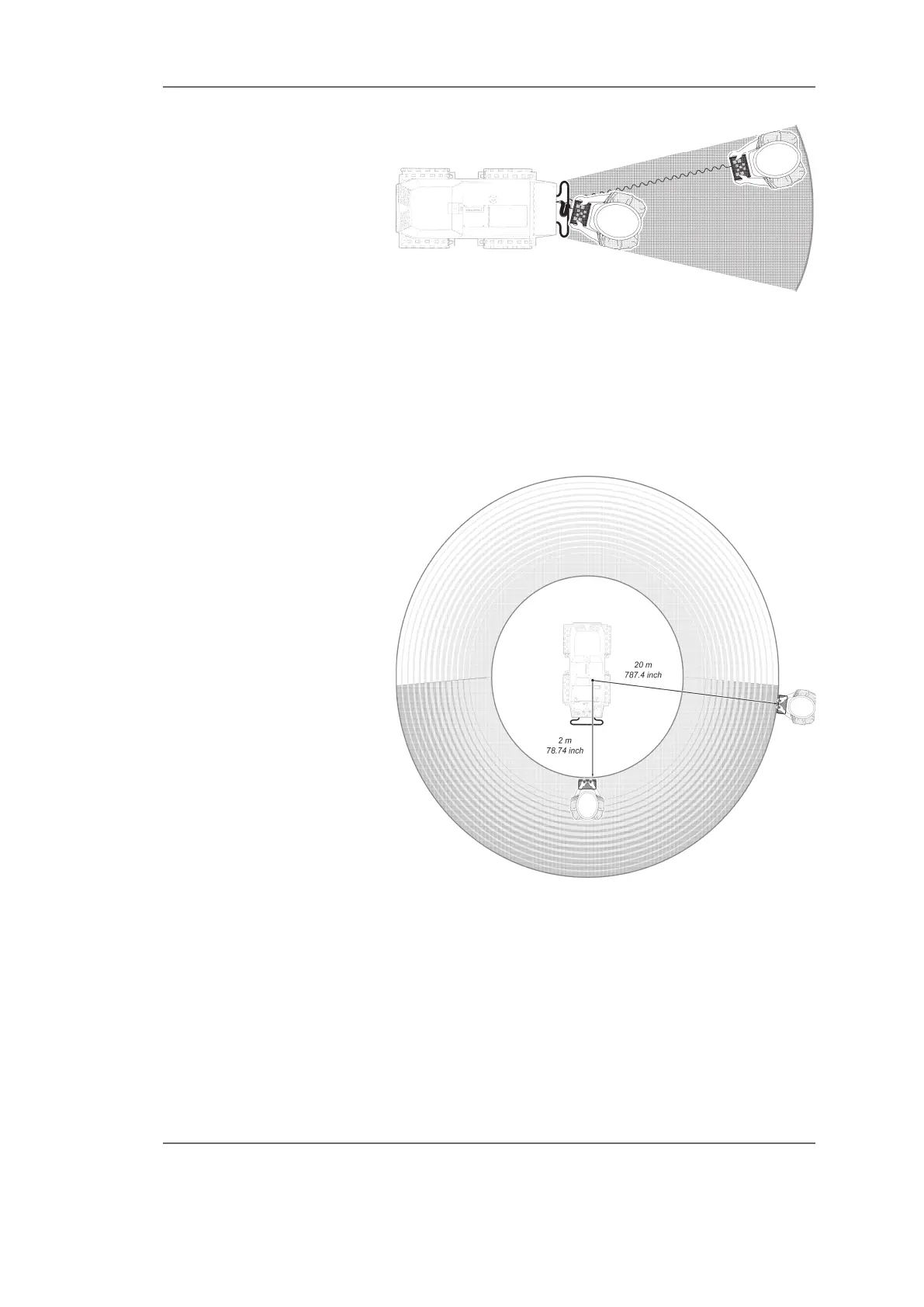

Fig. S11: Working position with remote cable controller (top view)
Using the infrared remote control
The range with the white background represents the controller's
control switch and not the machine's moving direction. Ope-
rate the machine solely within the range marked in grey (see
Fig. S12).
Fig. S12: Working position with remote infrared controller (top view)
Moving outside the shut down yoke's working range is only
allowed if you maintain a safe distance due to the remote in-
frared controller's in-situ shut down function.
safety
