Ammann Rammax 1515-M - Engine Protection

47
Rammax 1515-M/-MC/-MI/-MCI
Index: a; Issued 08/2010

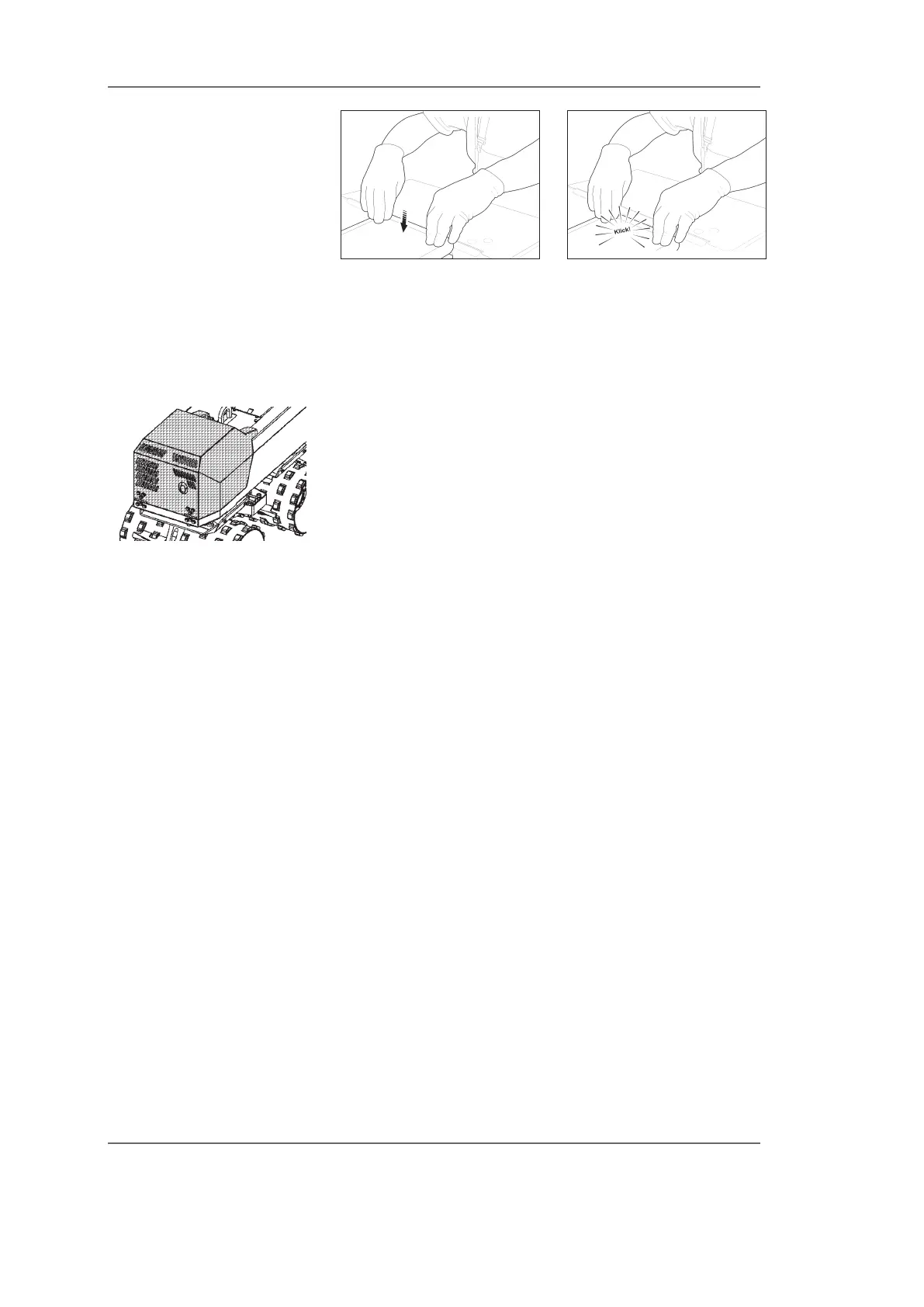

Fig. OZ9 Closing the storage com-
partment
Fig. OZ10 Storage compartment
locks into place
The storage compartment is now closed.
Engine protection
The engine protector protects the diesel engine and the batte-
ry against dirt, humidity and mechanical damage. It also works
as a noise insulator. The listed noise emission values were
recorded with the engine protector closed.
A fastener locks the engine protector in place. It is tted in the
centre at the top of the machine (Fig. OZ10).
A gas-pressurised spring opens the engine protector when the
fastener is unlocked. It supports the engine protector when it
is open.
Opening the engine protector:
Unlock the fastner.
Press down on the engine protector with one hand and
use your other hand to to push the locking hook upwards.
Take your hand away from the engine protector to release
it.
The engine protector will fold upwards.
Closing the engine protector:
Push the locking hook upwards so that it will be out of the
way when you close the engine protector.
Now use both hands to close the engine protector by
pushing it downwards.
Use one hand to hold the engine protector down and use
the other hand to lock it in place with the fastener.
The engine protector is now closed.









openings and access
