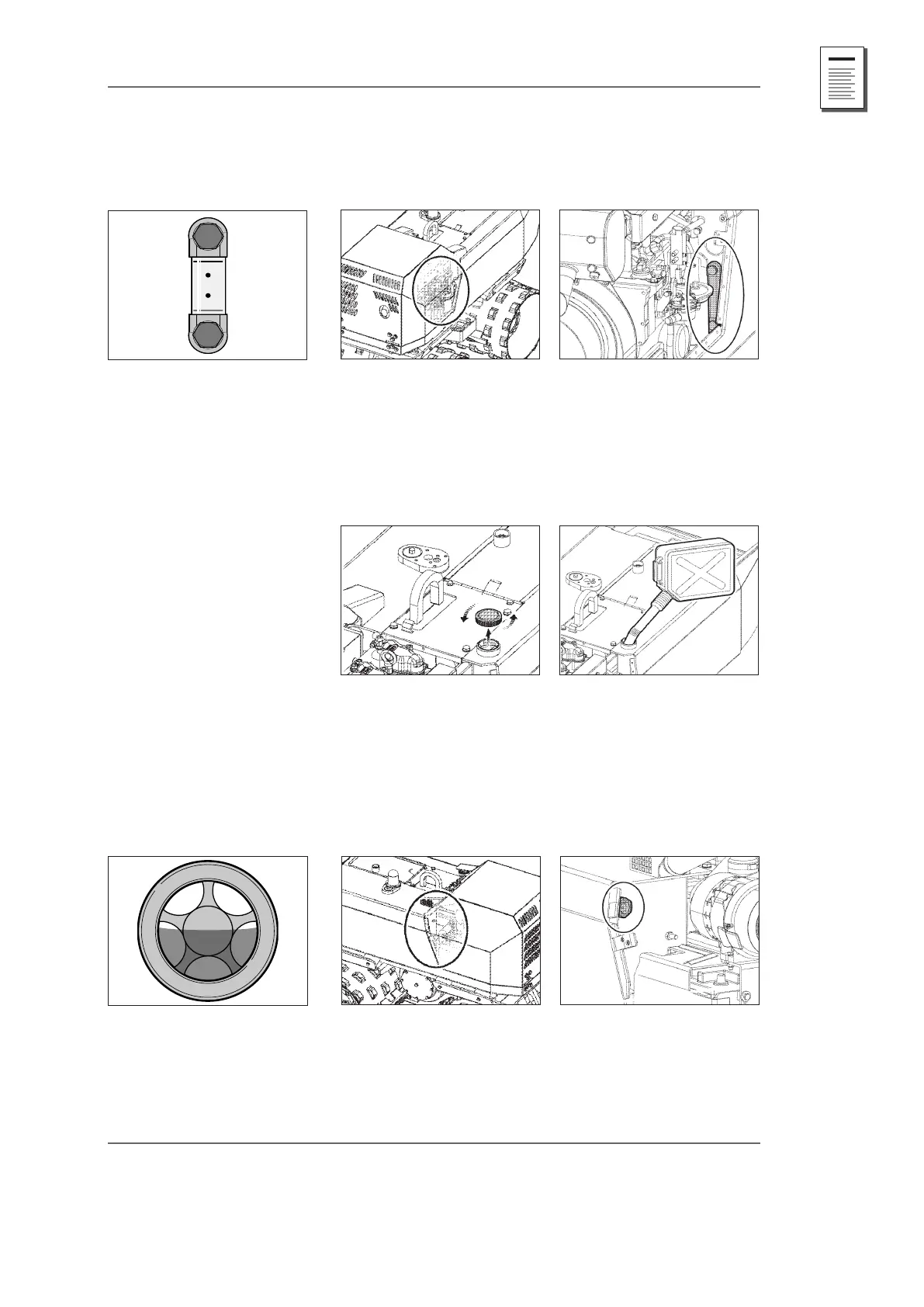

Refuelling
Check the fuel level in the fuel display (Fig. BA1), before you
rell with fuel. The fuel display is tted on the left in the engine
area (Fig. BA2).
Fig. BA2 Fuel display location
Fig. BA1 Fuel display
Rell with fuel after:
Switching the machine off and removing the ignition key.
Opening the engine protector:
Opening the tank cover (Fig. BA3).
Rell with diesel and check the fuel display lling level as
well. Use a funnel or a fuel hose for the relling (Fig. BA4).
Fig. BA3 Opening the tank cover
Fig. BA4 Refuelling using a fuel
hose
Relling with hydraulic oil
The hydraulic oil display (Fig. BA5) shows you the oil level in the
hydraulic oil tank. It is tted on the right in the engine area,
above the battery (Fig. BA6).
Fig. BA6 Hydraulic oil display location
Fig. BA5 Hydraulic oil display
The oil level must always be visible in the inspection glass.
Rell with hydraulic oil if the oil level drops into the bottom
third.




refilling
